US SHIP】4Axis CNC Kit Nema23 Stepper Motor+TB6600 Driver+Mach3 Card+Power Supply:
$145.00

SHIPEED FROM US WAREHOUSE
RATTMMOTORCNC Controller Kit, 4 Axis CNC Kit with Nema23 Stepper Motor 57*76mm 270Oz-in 3A 1.8Nm, TB6600 Driver 4A, USB Mach3 CNC Motion Control Card Breakout Board, 24V Power Supply for CNC Machine

Nema23 Stepper Motor 270Oz-in

Motor Type: Hybrid Stepper
Phase: 2 phase
Step Angle: 1.8 degree±5%
Voltage: 4.8V
Holding Torque: 180N.cm(270oz-in)
Detent Torque: 6N.cm Max
Rotor inertia: 440g.cm²
Phase Resistance: 1ohms
Insultaion Class: B
Inductance: 3.5mH+/-20%(1KHz)

TB6600 Stepper Motor Driver Features

Original brand new stepper motor driver chip
8-speed current control
7 kinds of subdivision adjustable
Interface uses high-speed optical coupling
Automatic half flow reduces calorific value
Large area heat sink is not afraid of constant high temperature environment
Strong anti-high frequency interference
Input voltage anti-reverse protection
Overheat and overcurrent short circuit protection
Through the 3-digit dialing code, you can choose 7-step subdivision control (1, 2 / A, 2 / B, 4, 8, 16, 32), 8-step current control (0.5A, 1.0 A, 1.5A, 2.0A, 2.5A, 3.0A).

Mach3 USB Motion Control Board 4-axis

Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor.
Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable.
4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device.
4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device.

350W 24V DC Switching Power Supply

DC output: 24V 0-14.5A
Inlet stability: ±0.5%
Load stability: ±0.5%
DC voltage of Adjustable range: ±10%
AC input voltage range: 115VAC/6.5A/50HZ----230VAC/3.4A/60HZ; Selected by switch
Overload protection: 105%-135% cut off the output, automatic recovery
Over-voltage Protection: 115%-150% shut down O/P voltage, re-power on to recover
Setup/rise/hold-up time: 200ms、50ms、20ms/230VAC at full load
Withstand voltage: I/P-O/P: 1.5KvAC; I/P-FG: 1.5KvAC; O/P-FG: 1.5KvAC; 1minute
Isolation resistance: I/P-O/P、 I/P-FG、O/P-FG: 500VDC/100MΩ

How to connect the Tb6600 driver ( or Stepper Motor) to CNC Motion Control Card?

It should be noted that the wiring diagram of the 4-axis motion control card above is for reference only, then if you connect this control card and the TB6600 driver, such as connect to X-axis motor driver, then:

Driver\'s \"Pul+\" connects to control card\'s XP+ pin ,
Driver\'s \"DIR+\" connects to control card\'s XD+ pin ,
Driver\'s \" PUL- \" pin and \" DIR- \" connection to USB Mach3 control card\'s \" GND \"

Stepper motor\'s wrings ( 4 wires) :

Connect stepper motor\'s RED wire to driver\'s A+ port
Connect stepper motor\'s GREEN wire to driver\'s A- port
Connect stepper motor\'s YELLOW wire to driver\'s B+ port
Connect stepper motor\'s BLUE wire to driver\'s B- port

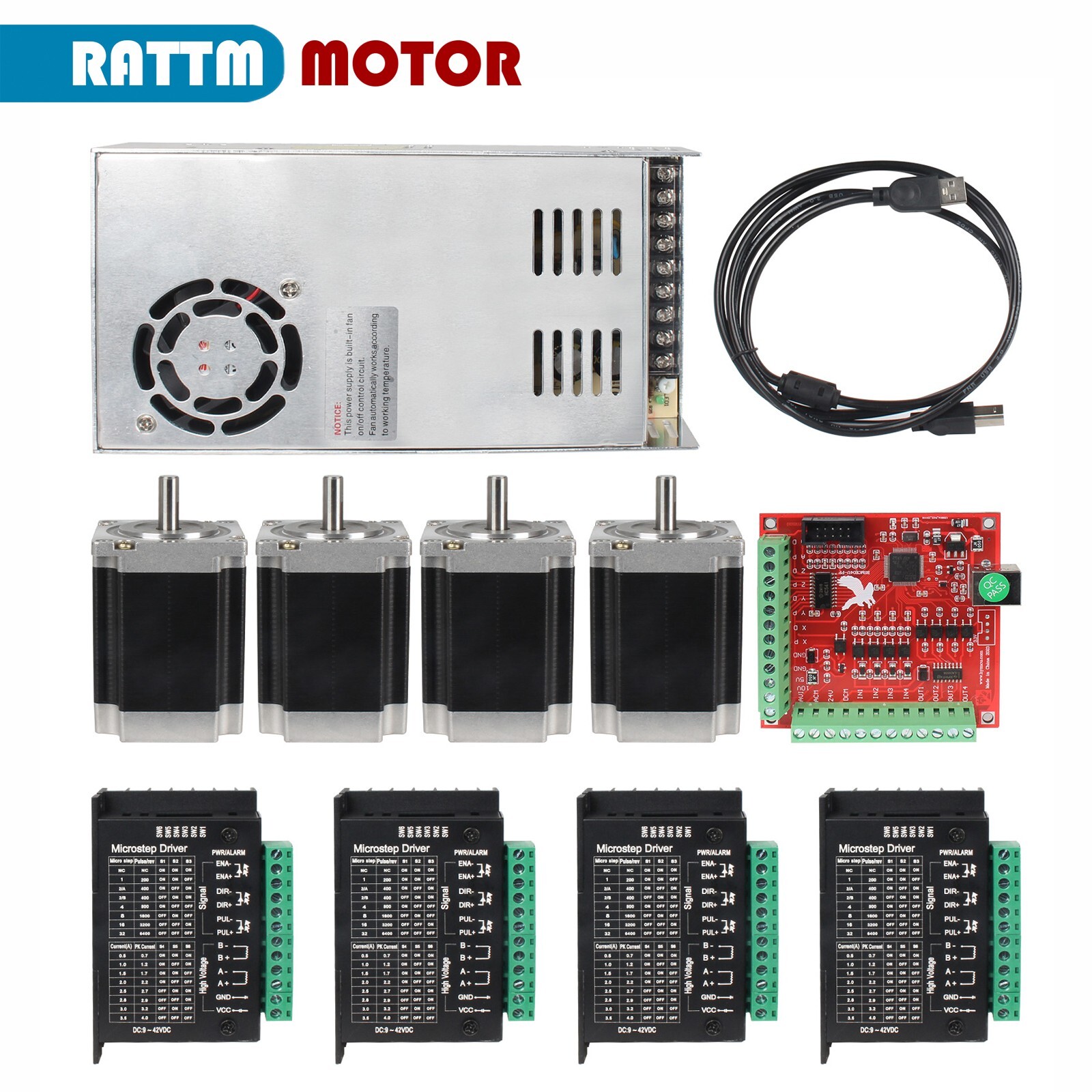

Package Include:

4 × Nema23 Stepper Motor 57mm
4 × TB6600 Stepper Motor Driver
1 × Mach3 USB CNC Control Card+USB Cable
1 × DC Switching Power Supply

- TB6600 Stepper Motor Driver Description of TB6600 Stepper Motor Driver Two-phase
  Electrical parameters:
  - Input voltage: DC9-42V
  - Input current: 5A switching power is recommended
  - Output current: 0.5-4.0A
  - Maximum power consumption: 160W
  - Breakdown: 1、 2 / A、 2 / B、4、 8、 16、 32
  - Temperature Working temperature: -10-45°C; Storage temperature -40 °C-70°C
  Input and output description:
  - PUL + : Pulse signal input + / PUL- : Pulse signal input -
  - DIR + : Motor rotation direction control + / DIR- : Motor rotation direction control-
  - EN + :Motor enable control + / EN- : Motor enable control-
  - A + : Connect motor A + phase / A- : Connect the motor A- phase
  - B + : Connect the motor B + phase / B- : Connect the motor B-phase
  - VCC : Power supply positive terminal \"+\" / GND : Negative terminal \"-\"
  - Note : DC9-42V: Do not exceed this range, otherwise it will not work properly or even damage the drive.
  4 Axis CNC USB Mach3 Controller Breakout Board
  - 1 status LED, indicate connection status on the board.
  - Have 0-10V output port, you can use mach3 software to control the spindle motor speed.
  - Support for 4-axis linkage, you can connect four stepper motor drives or servo drives.
  - Support automatic probe tool
  - Support Emergency input
  - Support for limit switch (It is recommended that the limit switch and emergency stop switch must be installed first and can be used normally.)
  - Support for connecting electronic handwheel
  - This USB motion card does not need install any USB driver, Windows2000/XP/Windows7,can directly identify (Notice: Doesn\'t support Win8/win10/macOS system !!!) .
  - If you are not familiar with the product and software features, make sure the machine\'s power switch on hand, you can quickly turn off the power.
  - Recommends that users install the emergency stop button and make sure the button is functioning properly.
  - The inverter interface (AVI +, AVI-) is isolated from the computer and the main control circuit, and has strong anti-interference ability.
  - No interference signal will be introduced due to the introduction of external strong electrical equipment.
  - This interface can output 0 ~ 10V analog signals, and can also be configured as 0 ~ 5V output.
  - It is recommended that the limit switch and emergency stop switch must be installed first.
  - If these protection switches are not installed, in an emergency, in addition to pressing the emergency stop to return (sometimes too late to press), and turning off the motor power (sometimes too late to turn off), the most convenient way to stop is to pull the USB cable !! As long as the USB cable is pulled, the machine will automatically stop! !! !!
  350W 24V DC Switching Power Supply

  Multiple protection, Stable Performance
  - Short circuit protection: when the output terminal is short-circuited, the power supply turns off the output, and the output voltage is 0V.
  - Overcurrent protection: When the output current>115-150%, the output voltage turns off the output.
  - Overload Protection: Power protection when load power＞105-135% of rated power.
  - Temperature protection; the power supply is automatically protected at high temperatures.
  Double Ball Cooling Fan and Full Metal Housing Design
  - With high speed and quite characteristics, it can ensure the temperature operation of the equipment and extend the service.
  - The shell is made of aluminum alloy with high thermal conductivity system, which is reinforced and durable, and the design is more user-friendly.
  Input Voltage Switch
  - The power supply has an input voltage 110V-220V switch button, which can adapt to different voltage requirement.
  - Quadruple protection setting, high resistant to electricity, effectively reducing the impact of AC ADDRESS
    - Items will be shipped from the US warehouse, items will be dispatched within 1 working day, valid logistics tracking number will be dispatched within 3 working days.
    ABOUT THE PRODUCT MANUAL
    - If you have not received the product manual and related information, please contact us.
    AFTER-SALES SERVICE
    - After you receive the product, open the parcel to find the product has damaged places or in the process of using any problems encountered please contact us in a timely manner, we will provide you with after-sales service.
    RETURNS AND REFUNDS
    - If you want to choose return or refund service, you can contact us first, we can provide you with fast and efficient service.
