Great News from Longsmotor! Ship from USA warehouse, after payment, within 3~5days for receiving products!
No taxes from customs for USA customers, no damage, better service, please don\'t hesitate!Free Ship by UPS!

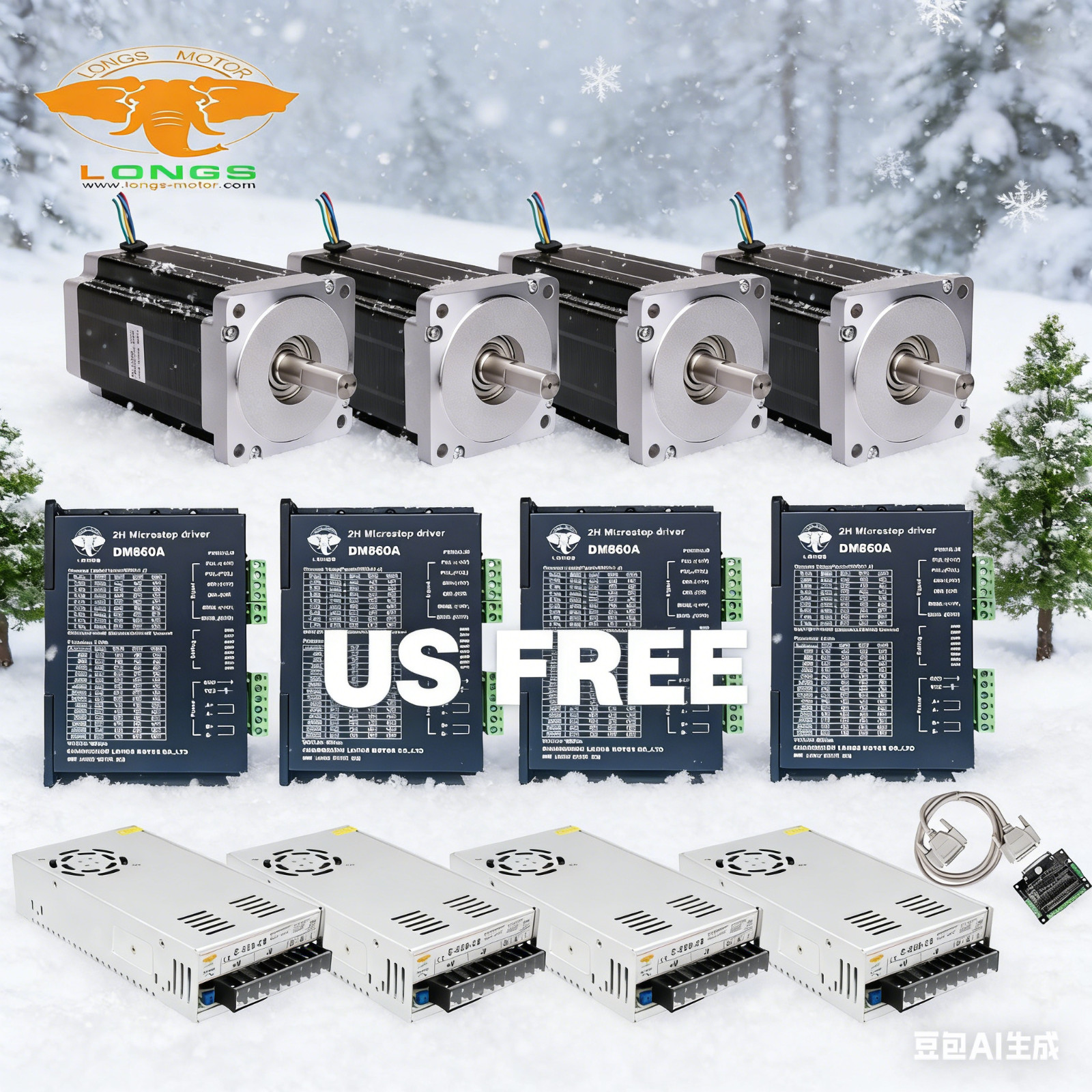

What\'s in Box?4 pc Nema 34 stepper motor 1700 oz.in 34HS5435C-37B2 single shaft4 pc Stepper motor driver DM860A , PEAK current 7.8A , for nema344 pc Power supply 350W-60V( power for Nema 34 motor)1 pc breakout board &1 pc parallel cable( free offering when you bought all these above)
1. Nema 34 stepper motor
art No.
34HS5435C-37B2
Frame Size
NEMA34
Phase
2Phase
Step Angle
1.8 degree
Current
3.5A
Rated Voltage
6V
Resistance
1.7 Ohm/phase
Inductance
21mH/phase
Holding torque
1700oz-in(12N.m)
Detent torque
24.5N.cm
Rotor inertia
3600g.cm²
Number of wire leads
Weight
5kg
Length
152mm
Front shaft length
37mm
The diameter for motor shaft
14mm
2. Stepper motor driver DM860A
Introduction:DM860A is a type of two-phase hybrid stepping motor driver, The drive voltage of which is from 24VDC to 80VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 57mm to 110mm outside diameter and less than 8.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Hording torque when DM860A run under high speed is also significantly higher than the other two-phase driver, what’s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on.Features:l High performance, low pricel Average current control, 2-phase sinusoidal output current drivel Supply voltage from 24VDC to 80VDCl Opto-isolated signal I/Ol Overvoltage, under voltage, overcorrect, phase short circuit protectionl 14 channels subdivision and automatic idle-current reductionl 8 channels output phase current settingl Offline command input terminall Motor torque is related with speed, but not related with step/revolutionl High start speedl High hording torque under high speed
Electrical specification:
Input voltage24-80VDCInput current＜ 6AOutput Internal Insurance：10ATemperatureWorking Temperature -10～45℃；Stocking temperature -40℃～70℃HumidityNo condensation, no water dropletsgasProhibition of combustible gases and conductive dustweight500GPins assignments and description:1)Connector PinsConfigurations
Pin Function DetailsPUL +,PUL-Pulse signal, PUL+ is the positive end of pulses input pin PUL- is the negative end of pulse input pinDIR+,DIR-DIR signal: DIR+ is the positive end of direction input pin DIR- is the negative end of direction input pinENBL+Enable signal: ENBL+ is the positive end of direction input pin. This signal is used for enabling/disabling the driver. High level for enabling the driver and low level for disabling the driver.ENBL-ENBL- is the negative end of direction input pin. Usually left unconnected (enabled)2) Pins wiring diagram:PC’s control signals can be active in high and low electrical level. When the high electrical level is active,all control negative signals will be connected together to GND. When low electrical level is active, allcontrol positive signals will be connected together to public port. Now give two examples(Open collector&PNP),please check them:
Fig 1. Input port circuit (Yang connection) PC open connector output
Fig. 2 Input port circuit ( Yin connection) PC PNP outputNote: When VCC=5V, R=0 When VCC=12V, R=1K, ＞1/8W When VCC=24V, R=2K,＞1/8WR must connect in the control signal part .3.Function choice ( Using DIP pins to achieve this function)1) Micro step resolution is set by SW 5,6,7,8 of the DIP switch as shown in the following Standstill current settingSW4 is used for this purpose. OFF meaning that the standstill current is set to be half of the selected dynamiccurrent and ON meaning that standstill is set to be the same as the selected dynamic current.3) Output current setting:The first three bits (SW 1, 2, 3)of the DIP switch are used to set the dynamic current. Select a settingClosest to your motor’s required currentOutput current Semi-flow function:Semi-flow function is that there is not step pulse after200 ms, the driver output current automaticallyreduced to 40% of rated output current, which is used to prevent motor heat.4. Pins of motor & power:Motor and power pins1A+Motors wiring2A-3B+4B-5,6DC+ DC-Power supplyPower supply ：DC24-80VDCThe peak input current can not up to 6A
3. Power Supply
The power is 350W, the output voltage is 60VDC for Nema 34
4. Breakout BoardGeneral in the software
P2 P3 is set to X-axis for the X-axis pulse
P4 P5 is set to Y-axis, Y axis pulse
P6 P7 is set to Z-axis Z-axis pulse
The other can be set to A B C axis
A-axis pulse P8 P9 is set as the A axis
P14 is set to B-axis B-axis pulse P1
P16 P17 is set to C-axis, C axis pulse
Can also be set to the spindle control signal \\ electrical permit
Input interface for the P10 P11 P12 P13 P15
- Built in DB25 male connector.
- DB25 Output style=\"text-align: left;\">DB25 Input Pin: P10,P11,P12,P13,P15.
- DB25 GND Pin: P18-P25.
- Power supply: +5V DC.
- Built in C-class Optical-coupler.
- High quality with Surface-mount Tech.
Application: Our Stepper Motors are used on small to mid-sized CNC mills or milling machines, CNC lathes, Pick-n-place machines,Laser Engravers and Laser Cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. Carver machine ,Dispenser,Automazation,3D Printer,Stage lighting,instrument,laser equipment,scanner and so on.These motors have been used in precision telescope positioning systems and robots.
On Aug-14-19 at 23:04:47 PDT, seller added the following information:
