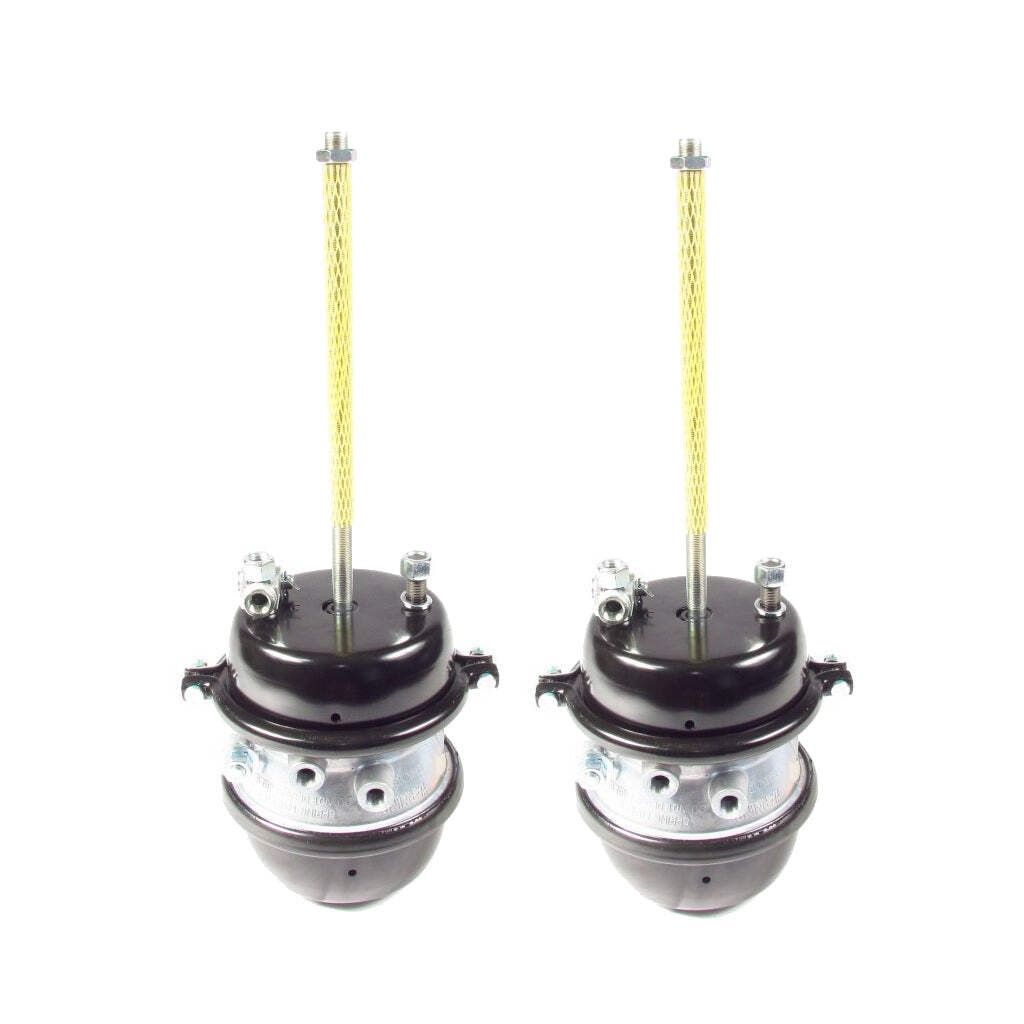

Fortpro 2-PCS Type 30/30 Sealed Air Spring Brake Chamber - 2 1/2" Stroke Threade For Sale

Fortpro 2-PCS Type 30/30 Sealed Air Spring Brake Chamber - 2 1/2" Stroke Threaded - Premium | F224746 Highlights: Ensure Consistent Quality – Manufactured under ISO/TS 16949:2009 standards to deliver reliable performance and production consistency. Resist Corrosion in Harsh Conditions – Passed Salt Spray Corrosion Test to help protect against rust and premature wear in demanding environments. Maintain Proper Air Pressure – Passed Leak Tightness Test of Joints to support secure sealing and reduce the risk of air leaks. Built for Heavy-Duty Use – Passed Endurance Testing to validate durability under repeated braking cycles and long service life. Dependable Replacement Solution – Designed to provide stable operation and confidence when servicing air brake systems on heavy-duty applications. Specifications: Brand: Fortpro Vehicle Type: Semi-Trucks / Heavy Trucks Product Department: Brakes Product category : Brake Chambers Part Type: Air Brake Chamber Also Known as: Brake Canister / Brake Can / Air Brake Canister / Brake Pod / Brake Pots Chamber Type: Spring Brake Chamber Model: Type 3030, T30/30, 3030, 30 30 Stroke: Standard Stroke / Short Stroke Stroke Lenght: 2.50 in. (63.5 MM) Outside Diameter (O.D.): 8.30 in. Brake Type Support: Drum Serviceability: Sealed Push Rod Thread: 5/8-18 UNF-2A Push Rod Length: 12.00 in Service Port: 3/8-18 NPTF Emergency/Release Port: 3/8-18 NPTF Port Angle: 90° Clevis Included: Yes Clevis Mounting: Threaded Maximum Pressure: 150 PSI Mounting Bolt Thread: 5/8-11 UNC-2A Mounting Bolt Length: 1.50 in. (38.1 MM) Brake System Compatibility: S-Cam Chamber Style: Double Diaphragm Service Chamber Joint Type: Single Clamp Band CrossReference: Automann: 179SB3030 Bendix: K049898, NT3030STD120 Euclid: E-BC3030C MGM: 3232951, 3232951X TRP: SB3030CC OTR: OTR3030SB WA: WA3030T Fortpro 2-PCS Type 30/30 Sealed Air Spring Brake Chamber - 2 1/2" Stroke Threaded - Premium | F224746 Consistent Quality – Manufactured under ISO/TS 16949:2009 standards to deliver reliable performance and production consistency.

Resist Corrosion in Harsh Conditions – Passed Salt Spray Corrosion Test to help protect against rust and premature wear in demanding environments.

Maintain Proper Air Pressure – Passed Leak Tightness Test of Joints to support secure sealing and reduce the risk of air leaks.

Built for Heavy-Duty Use – Passed Endurance Testing to validate durability under repeated braking cycles and long service life.

Dependable Replacement Solution – Designed to provide stable operation and confidence when servicing air brake systems on heavy-duty style=list-style-type:none;>

Brand: Fortpro

Vehicle Type: Semi-Trucks / Heavy Trucks

Product Department: Brakes

Product category: Brake Chambers

Part Type: Air Brake Chamber

Also Known as: Brake Canister / Brake Can / Air Brake Canister / Brake Pod / Brake Pots

Chamber Type: Spring Brake Chamber

Model: Type 3030, T30/30, 3030, 30 30

Stroke: Standard Stroke / Short Stroke

Stroke Lenght: 2.50 in. (63.5 MM)

Outside Diameter (O.D.): 8.30 in.

Brake Type Support: Drum

Serviceability: Sealed

Push Rod Thread: 5/8-18 UNF-2A

Push Rod Length: 12.00 in

Service Port: 3/8-18 NPTF

Emergency/Release Port: 3/8-18 NPTF

Port Angle: 90°

Clevis Included: Yes

Clevis Mounting: Threaded

Maximum Pressure: 150 PSI

Mounting Bolt Thread: 5/8-11 UNC-2A

Mounting Bolt Length: 1.50 in. (38.1 MM)

Brake System Compatibility: S-Cam

Chamber Style: Double Diaphragm

Service Chamber Joint Type: Single Clamp 179SB3030

Bendix: K049898, NT3030STD120

Euclid: E-BC3030C

MGM: 3232951, 3232951X

TRP: SB3030CC

OTR: OTR3030SB

WA: WA3030T

× × × × × × × × × ×
