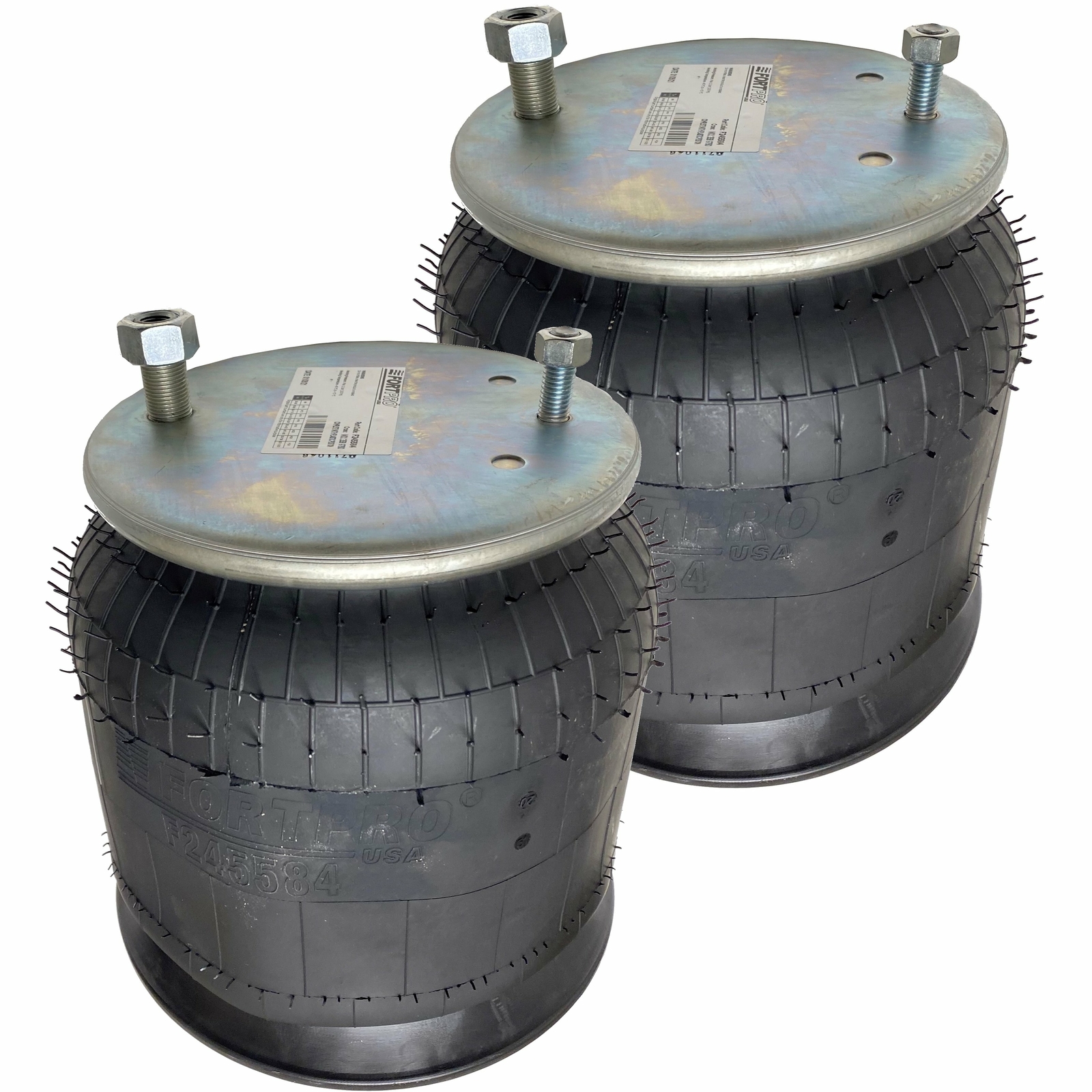

Fortpro 2 PCS Reversible Air Spring Replacement for Freightliner 16-13810-000, F For Sale

Fortpro 2 PCS Reversible Air Spring Replacement for Freightliner 16-13810-000, Firestone 9780, Goodyear 1R12-303 | F245584-2QTYKey Features Brand New Manufactured with high strength fabric and rubber compounds Air springs are designed to guarantee proper weight distribution to all tires, which helps truck Stability and Safety Air Springs systems let the driver to Add air or Deflate depending on cargo weight. Add air when heavy load ; deflate when riding empty for a softer ride Prevents drivers from excesive exposing to NVH (noise, vibration and harshness). These can cause fatigue, a bad back and even hearing loss (if the truck is very loud) Making the truck more comfortable means: Less time off work with aches and drivers becomes less fatigued and stays more focused Specifications Product Line: Suspension Category Name: Air Springs and Bags Part Type: Rolling Lobe Air Spring Alternate Part Name: Air Suspension Bag, Reversible Sleeve Air Spring, Air Ride Spring, Rolling Lobe Air Spring, Air Bag Suspension, Pneumatic Spring, Suspension Air Bag OEM Part Number: W01-358-9780 Application Type: Semi-Trucks, Heavy Duty Trucks VMRS Code: 016-008-000 Material: Fiber reinforced rubber bellows Air Inlet Inside Thread: 1/4-18 NPTF Air Inlet Outside Thread: 3/4-16 UNF Body Diameter: 10.62 in. Bottom Plate Alignment: Parallel Bottom Plate Diameter: 10.53 in. Bottom Plate Stud: 1/2-13 UNC Mounting Stud Configuration - Bottom: 1 Mounting Stud Configuration - Top: 2 Piston Height: 6.89 in. Piston Material Type: Composite Top Plate Diameter: 9.00 in. Top Plate Stud: 1/2-13 UNC Air Spring Type: 1T Reversible Sleeve Collapsed Length: 8.60 in. Extended Length: 23.00 in. Net Weight: 13.60 lb. Intended Application Compatible with Freightliner FASII AirLiner (1990+) Tractor Axle Rear Suspension. Cross-references 1613810000, 1613810001, 1613810002, 161381001, 1614377000, 161673000, 1619768000, 1R12186, 1R12189, 1R12303, 1R12603, 3529781, 566CT67473, 6813200017, 6813280001, 9780, A1613668002, A1614004000, A1614004001, A1614377, A1618335000, A1618335001, AB1DF239780, AS9780, EAS9780, FS9780, M3550, MAF9780, W013589780, W013778528, 136922, 1DK23K9780, 1R12-303, 1T15ZR-6, 1T15ZR6, 32303 KPP, 331061, 342303-CPL, 342303CPL, 449781-CPL, 449781CPL, 9 10S-16, 9 10S16, 910S16A382, 910S16P382, 935621, P 382, W01 358 9780 Fortpro 2 PCS Reversible Air Spring Replacement for Freightliner 16-13810-000, Firestone 9780, Goodyear 1R12-303 | F245584-2QTY Key Features

• Brand New Manufactured with high strength fabric and rubber compounds
• Air springs are designed to guarantee proper weight distribution to all tires, which helps truck Stability and Safety
• Air Springs systems let the driver to Add air or Deflate depending on cargo weight. Add air when heavy load ; deflate when riding empty for a softer ride
• Prevents drivers from excesive exposing to NVH (noise, vibration and harshness). These can cause fatigue, a bad back and even hearing loss (if the truck is very loud)
• Making the truck more comfortable means: Less time off work with aches and drivers becomes less fatigued and stays more Line: Suspension
• Category Name: Air Springs and Bags
• Part Type: Rolling Lobe Air Spring
• Alternate Part Name: Air Suspension Bag, Reversible Sleeve Air Spring, Air Ride Spring, Rolling Lobe Air Spring, Air Bag Suspension, Pneumatic Spring, Suspension Air Bag
• OEM Part Number: W01-358-9780
• Application Type: Semi-Trucks, Heavy Duty Trucks
• VMRS Code: 016-008-000
• Material: Fiber reinforced rubber bellows
• Air Inlet Inside Thread: 1/4-18 NPTF
• Air Inlet Outside Thread: 3/4-16 UNF
• Body Diameter: 10.62 in.
• Bottom Plate Alignment: Parallel
• Bottom Plate Diameter: 10.53 in.
• Bottom Plate Stud: 1/2-13 UNC
• Mounting Stud Configuration - Bottom: 1
• Mounting Stud Configuration - Top: 2
• Piston Height: 6.89 in.
• Piston Material Type: Composite
• Top Plate Diameter: 9.00 in.
• Top Plate Stud: 1/2-13 UNC
• Air Spring Type: 1T Reversible Sleeve
• Collapsed Length: 8.60 in.
• Extended Length: 23.00 in.
• Net Weight: 13.60 lb.

Intended Application

• Compatible with Freightliner FASII AirLiner (1990+) Tractor Axle Rear 1613810001, 1613810002, 161381001, 1614377000, 161673000, 1619768000, 1R12186, 1R12189, 1R12303, 1R12603, 3529781, 566CT67473, 6813200017, 6813280001, 9780, A1613668002, A1614004000, A1614004001, A1614377, A1618335000, A1618335001, AB1DF239780, AS9780, EAS9780, FS9780, M3550, MAF9780, W013589780, W013778528, 136922, 1DK23K9780, 1R12-303, 1T15ZR-6, 1T15ZR6, 32303 KPP, 331061, 342303-CPL, 342303CPL, 449781-CPL, 449781CPL, 9 10S-16, 9 10S16, 910S16A382, 910S16P382, 935621, P 382, W01 358 9780

× × × × × × × ×
