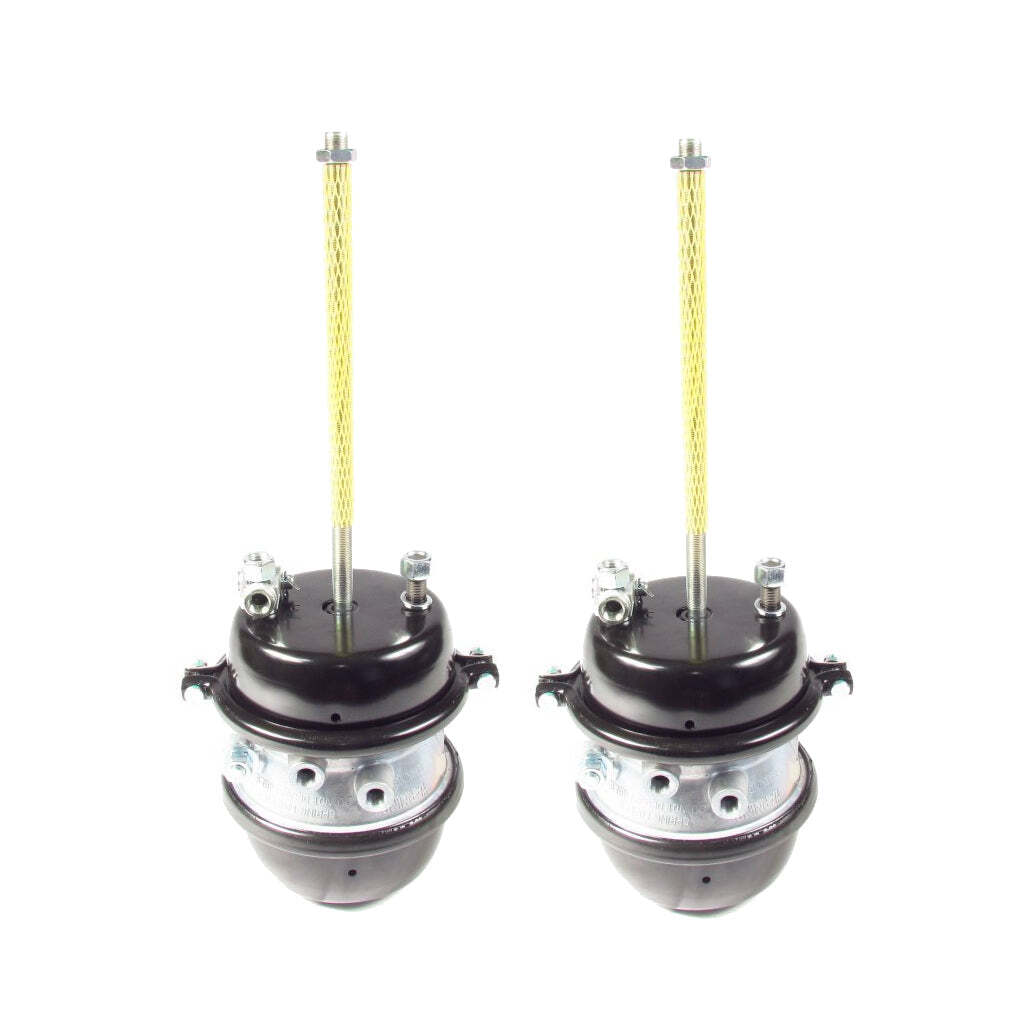

Fortpro 2-PCS Type 30/30 Sealed Air Spring Brake Chamber - 2 1/2" Stroke Threade For Sale

Fortpro 2-PCS Type 30/30 Sealed Air Spring Brake Chamber - 2 1/2" Stroke Threaded | F224746E-2QTYKey Features Type 30/30 Standard Strock with Length: 2.5" Pushrod: 13.25" Manufacture under ISO/TS 16949:2009 our brake components meets and exceed the international standards. Our air brake components have been passed the following tests: Salt spray test, Leak tightness, Endurance test Specifications Part Type: Air Brake Chamber Alternate Part Name: Brake Canister / Brake Can / Air Brake Canister Model: Type 3030, T30/30, 3030, 30 30 Application Type: Heavy Duty Trucks, Semi-Trucks Brake System Compatibility: S-Cam Brake Type: Drum Chamber Style: Double Diaphragm Chamber Type: Spring Brake Chamber Clevis Mounting Type: Threaded Emergency Port Thread Size: 3/8-18 NPTF Mounting Bolt Length: 1.50 in. Mounting Bolt Thread Size: 5/8-11 UNC-2A Outside Diameter (O.D.): 8.30 in. Push Rod Length: 12.00 in Push Rod Thread Size: 5/8-18 UNF-2A Service Chamber Joint Type: Single Clamp Band Service Port Thread Size: 3/8-18 NPTF Clevis Yoke: Included Maximum Operating Pressure: 150 PSI Port Orientation: 90° Serviceability: Sealed Stroke Lenght: 2.50 in. Stroke Type: Standard Stroke Cross-references 165255, 179SB3030, 179SB3030S, 19QE441RP1, 3030C, 3030TS, 3232951, 3232951X, E-BC3030C, EBC3030C, EM30300-100, EM30300100, GC3030, K049898, NT3030STD120, OTR3030SB, R873030C, SB3030CC, WA3030T Fortpro 2-PCS Type 30/30 Sealed Air Spring Brake Chamber - 2 1/2" Stroke Threaded | F224746E-2QTY Key Features

• Type 30/30
• Standard Strock with Length: 2.5"
• Pushrod: 13.25"
• Manufacture under ISO/TS 16949:2009 our brake components meets and exceed the international standards.
• Our air brake components have been passed the following tests: Salt spray test, Leak tightness, Endurance Type: Air Brake Chamber
• Alternate Part Name: Brake Canister / Brake Can / Air Brake Canister
• Model: Type 3030, T30/30, 3030, 30 30
• Application Type: Heavy Duty Trucks, Semi-Trucks
• Brake System Compatibility: S-Cam
• Brake Type: Drum
• Chamber Style: Double Diaphragm
• Chamber Type: Spring Brake Chamber
• Clevis Mounting Type: Threaded
• Emergency Port Thread Size: 3/8-18 NPTF
• Mounting Bolt Length: 1.50 in.
• Mounting Bolt Thread Size: 5/8-11 UNC-2A
• Outside Diameter (O.D.): 8.30 in.
• Push Rod Length: 12.00 in
• Push Rod Thread Size: 5/8-18 UNF-2A
• Service Chamber Joint Type: Single Clamp Band
• Service Port Thread Size: 3/8-18 NPTF
• Clevis Yoke: Included
• Maximum Operating Pressure: 150 PSI
• Port Orientation: 90°
• Serviceability: Sealed
• Stroke Lenght: 2.50 in.
• Stroke Type: Standard 179SB3030, 179SB3030S, 19QE441RP1, 3030C, 3030TS, 3232951, 3232951X, E-BC3030C, EBC3030C, EM30300-100, EM30300100, GC3030, K049898, NT3030STD120, OTR3030SB, R873030C, SB3030CC, WA3030T

× × × × × × × × × ×
