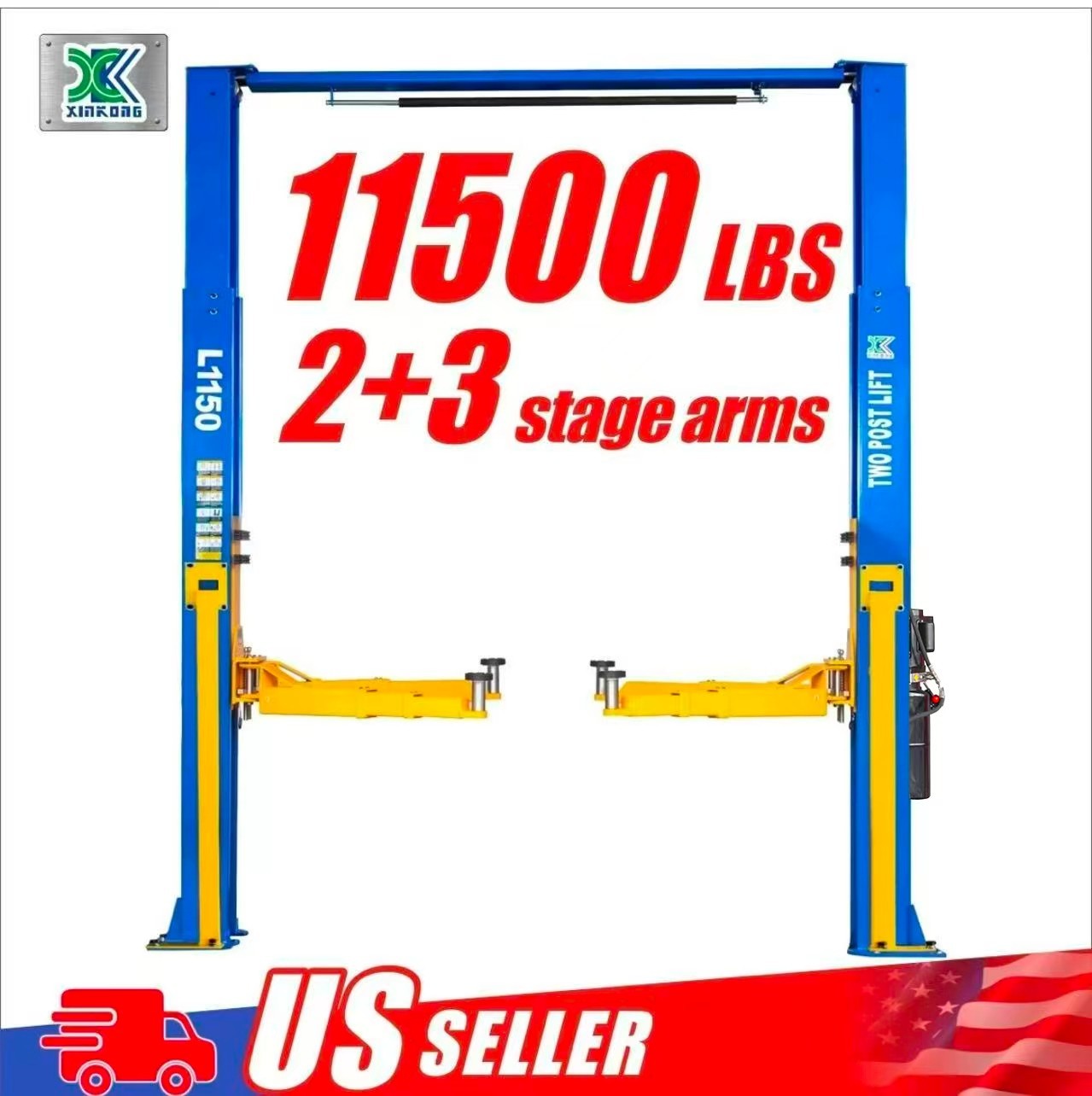

XK L1150 2 Post Lift 11500lbs 3 Stage Front Arm Auto Car Truck Hoist Lift 220v
XK L1150 – 11,500 lbs 2-Post Car Lift (220V)
3-Stage Front Arms + 2-Stage Rear Arms | Overhead Clear Floor | Auto/Truck Hoist
🛒 Welcome to Our Store!
Check out our store for more high-quality lift, tire machines, and shop equipment!
🚨 Important Notice
✔ Purchase only from our official store. We take full responsibility for product quality, warranty, and after-sale service for all items sold directly by us.
✔ Some sellers copy our photos/descriptions and list at unusually low prices — these are not affiliated with us.
✔ We have been selling on for 10+ years with a proven track record. Feel free to review our sold history!
📍 Local Pickup Available
Pick up from our Texas (McKinney) or California (Ontario) warehouse and save on shipping!
(Please message us before purchasing if you want local pickup.)
🚗 11,500 lbs Car Lift with 2 + 3 Stage Arm System— Model L1150 (220V)
📺 Installation Use the overhead bar to measure the space between the two posts.
🛠 Warranty (Best on )
We offer a 2-year warranty on:
✔ Metal parts
✔ Pneumatic components
✔ Electrical parts
✔ Motors
Most sellers offer 3–6 months or at most 1 year. Compare before purchasing!
Factory Defective Items
✔ Full refund for defective units
✔ If you request a replacement, we cover shipping both ways
⭐ Advanced Feature: 2 + 3 Stage Arm System✔ 3-Stage Front Arms + 2-Stage Rear Arms
The upgraded arm configuration provides:
Better reach for short-wheelbase sedans
Extended range for long-wheelbase trucks & vans
Greater flexibility and safer lifting for heavy-duty vehicles
The powerful 3-stage front arms allow precise wheelbase adjustment, making this lift suitable for everything from compact cars to large pickup trucks.
⚙️ Lift Features – XK L1150Motor
Included Accessories
🔧 Symmetrical Arm Assembly
🔒 Safety Features
✔ Double-point safety lock release
✔ Automatic arm lock restraints
✔ Built-in relief valve (prevents overload)
✔ Rubber door guards for vehicle protection
✔ Up-limit switch (prevents cylinder damage)
✔ Heavy-duty 5/16\" cable + 4.56\" pulley system
✔ Reinforced 5/8\" thick base plate
✔ Ultra-high molecular self-lubricating sliders
✔ Anchor bolts & mounting hardware included
🎛 Control System
✔ Press UP button to lift
✔ Manual lowering control lever
✔ Built-in overload protection
✔ Truck adapters included
📐 Specifications
Lifting Capacity: 11,500 lbs
Overall Height: 141.73\"
Overall Width: 130.31\"
Column Width: 11.02\"
Base Width: 17.31\"
Steel Thickness:
Column: 0.20\"
Carriage: 0.19\"
Arms: 0.23\"
Arm Reach: 29.92\" – 47.24\"
Minimum Pad Height: 3-7/8\"
Max Lift Height: 70-3/4\"
Drive-Thru Clearance: 108.26\"
Rise Time: 45–55 seconds
Shipping Weight: 1202 lbs
🧱 Installation RequirementsCheck Before Installing
✔ 220V / 30A / Single-phase grounded power
✔ Adequate overhead clearance
✔ No interference from heaters, electrical lines, lights, or garage doors
✔ Floor must be structurally sound
Concrete Requirements
✔ Level concrete recommended
✔ New concrete must cure 30 days minimum
✔ Minor slope adjustable by shimming
❌ Do NOT install concrete
Expansion seams
Elevated floors (unless approved by architect)
Outdoors without protection
Minimum Concrete Specs
✔ 3,000 PSI reinforced
✔ 6\" thickness recommended
