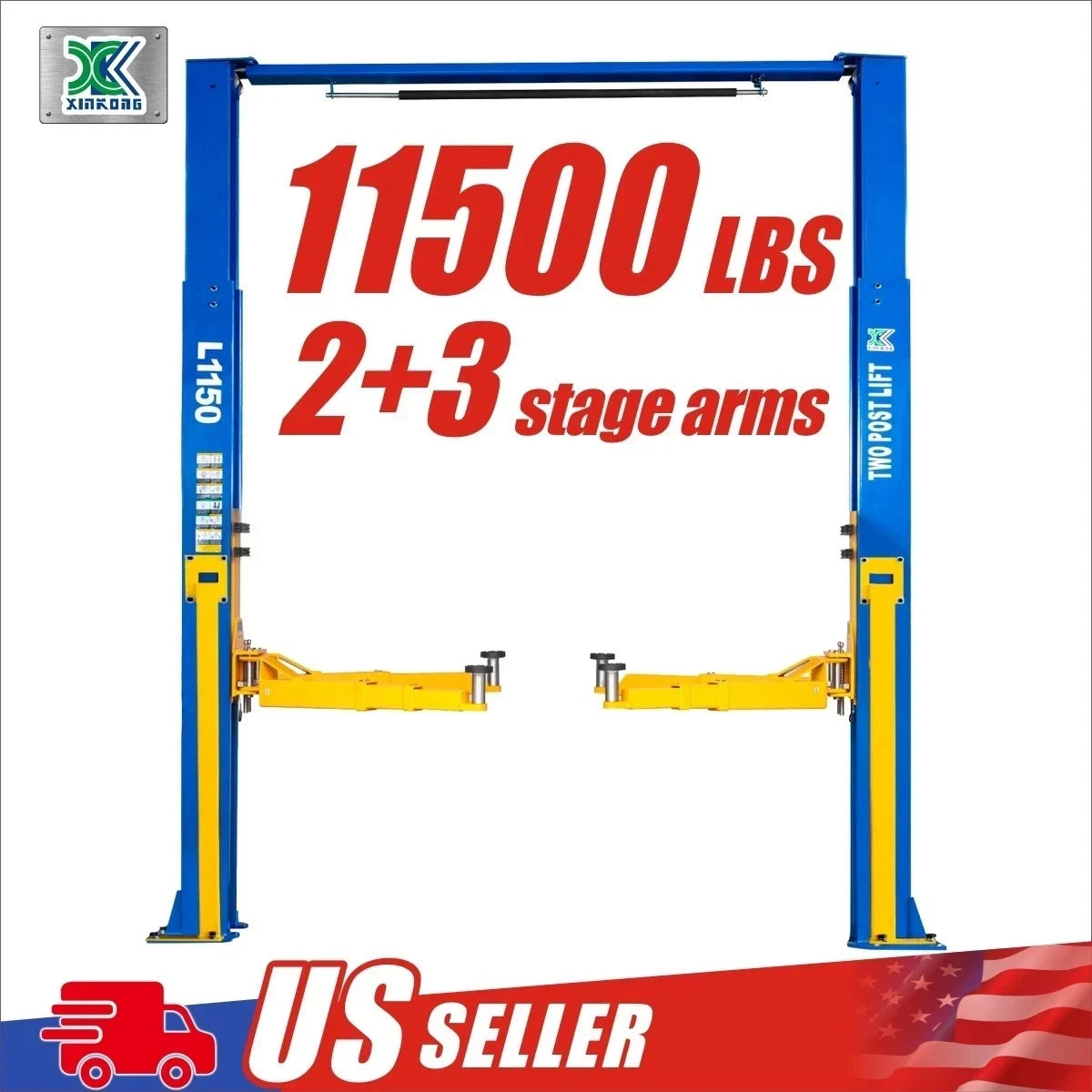

XK L1150 2 Post Lift 11,500lbs Auto Car Truck Hoist Overhead 220V Clear FloorWelcome to Our Store!
Check out our store for more great items!
🚨Beware of Scams!
Some sellers copy our company information and listings while offering much lower prices.These could be scams—please be cautious.
We have been selling on forover 10 years, with many successful transactions. Check oursold recordsunder our listings for verification.
📍Local Pickup Available!
Visit ourTX or CA warehousesto pick up your order in person and save on shipping costs.
11,500lbs Car Lift L1150 – 2 Post Lift (220V)
📺Installation data-end=\"830\" data-start=\"743\">✅Important:Use theoverhead barto measure the space between the two posts.
🛠Warranty
We offer a2-year warrantyon all metal parts, pneumatic components, electrical parts, and motors!When you choose us, you get the best warranty on .
Most sellers offerlittle to no warrantyor only cover parts for3-6 months(or 1 year at most). Compare before making your decision! Visit our store for fullterms and conditions—we provide thebest warranty!
Factory Defective Items
✅ Full refund for defective items.
✅ If a replacement is requested,we cover the shipping costfor the replacement.
Auto Car Lift L1100 – Features
🔹Motor:220V, 60Hz, 1PH, 3HP
🔹Adjustable Pads & Truck Adapters Included
Symmetrical Arm Assembly:
✔Straight front/rear 2-stage arms(Reach: 30.25\" - 49.2\")
✔Equal-length front and rear arms
✔Drop-in lifting pads and truck adapters included
Safety Features:
✔Double-point safety lock release
✔Automatic arm lock restraints
✔Built-in relief valve(Prevents overloading)
✔Door guard protection rubber
✔Up-limit switch(Protects cylinder stroke)
✔Heavy-duty 5/16\" cable & 4.56\" pulley(Reduces stress & extends cable life)
✔Stiffened base plate:5/8\" thick
✔Ultra-high molecular self-lubricating nylon slider(Ensures smooth movement)
✔Anchor bolts & mounting hardware included
Control System:
✔Lifting Operation:Press the \"UP\" button
✔Manual Lowering:Press the lever
✔Built-in relief valve(Prevents overloading)
✔1 Set of Truck Adapters Included
Specifications:
📌Lifting Capacity: 11,500 lbs
📌Overall Height:141.73\"
📌Overall Width:130.31\"
📌Column Width:11.02\"
📌Base Width:17.31\"
📌Steel Thickness (Column, Carriage, Arms):0.2\", 0.19\", 0.23\"
📌Front & Rear Arm Reach: 29.92\" - 47.24\"
📌Minimum Pad Height:3-7/8\"
📌Maximum Lift Height:70-3/4\"
📌Drive-Thru Clearance: 108.26\"
📌Full Rise Time: 45-55 seconds
📌Shipping Weight: 1202 lbs
✔Lift Location:Ensure proper space perarchitect’s plans. Requires220V, 30A, single-phase, grounded power.
✔Overhead Area:Ensure noheaters, supports, electrical lines, doors, or lightsobstruct installation.
✔Floor Area:Inspect forcracks or defective concrete.
Floor & Concrete Requirements
✔Level concreteis recommended for proper installation.
✔Minor slopescan be adjusted withshimming.
✔New concrete must cure for at least 30 days.
🚫DO NOT install on:
❌ Asphalt or non-concrete surfaces
❌ Expansion seams, cracked, or weak concrete
❌ A second/elevated floor (without consulting abuilding architect)
❌ Outdoors (unless properly weather-protected)
Concrete Specifications
✔Minimum Requirement:3,000 PSI reinforced concrete
🚚Shipping Information
✔We only ship within the 48 contiguous U.S. states.
🚫No shipping to:
❌ Alaska, Hawaii, Guam, Virgin Islands, Puerto Rico
❌ PO Boxes or APO/FPO addresses
📌 Deliver to both Residential and Business Address
⚠️ Important:
Unloading Requirements:
✅Customer must have a forklift or tractorto unload.
✅Terminal pickup availableif no unloading equipment is available.
📩Contact Us
Have questions? Feel free to reach out! We will respondwithin 24 hours on business daysandwithin 48 hours on weekends or holidays.
