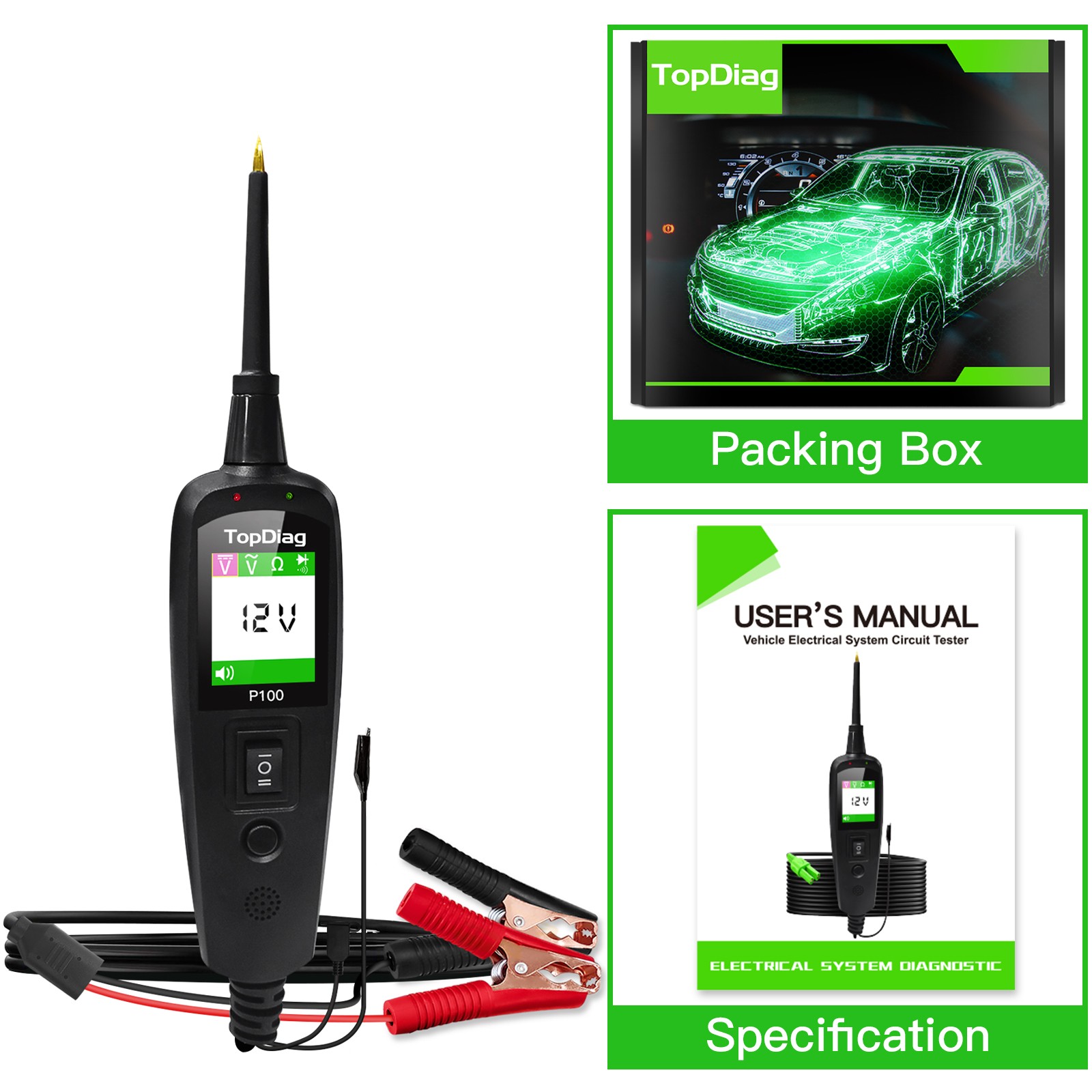

Topdiag P100 Auto Power Circuit Tester Probe Kit 12V 24V Vehicle Electrical Tool For Sale

TopDiag Power Pro P100 New Generation Automotive Electrical Circuit System Tester

1. JDiag Original Automotive Electrical Circuit System Tester for Cars and Trucks 0V - 70V
2. Voltage & Polarity Testing-Determine DC/AC Voltage and Postive/Negative quickly.
3. Resistance Continuity Testing- LCD Screen display the value of resistance.
4. AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.
5. Components Activation in your hand, in the vehicle or W/Ground.
6. Testing Trailer Lights and Connections-2M extension cable allow your to test Cars or Trucks.
7. Checking for Bad Ground Contacts and Locating Short TFT color display (160 x 128 dpi)

   Operating Temperature: 0 to 60°C (32 to 140 F°)

   Storage Temperature: -40 to 70°C (-40 to 185 F°)

   External Power: 12.0 or 24.0 V power provided via vehicle battery

   Dimensions: Length 165 mm * Width 40 mm * Height 27 mm

   Test Tool Specifications:

   • DC voltage range : 0-65V +1 digit
   • Resistance range : 0-200 K ohm
   • Frequency response of tone pass through
   • 0Hz to 10K hz.
   • Circuit Breaker
   • Rating current: 1-10 Amp

   Testing Standard:

   • 100% current : no trip
   • 150% current: trip in one hour
   • 200% current: trip in 3-30 seconds.
   • 300% current: trip in 0.5-4.0 This is 2 meter version, with no extension cable and carrying case!!!
     Item SpecificsNon-Domestic Product :NoWarranty :1 YearFeature 1 :Car Auto Circuit TesterVehicle Type :ATV Heavy Duty/Commercial Motorcycle Passenger VehicleCustom Bundle :NoFeature 3 :BT260 Power Probe Electrical TestersManufacturer Part Number :P100Volt :24 voltFeature 2 :Circuit Tester PowerScan Electrical Test ToolFeature 4 :Test mode contain AV Voltage, Current Resistance, read AVOmeterFeature :Car Diagnostic Power ProbeModified Item :NoBrand :TopDiagAccessories :Adapter Cable Carrying Case Clamps Probes User GuideFeatures :Analog Display Continuity Testing Digital Display Relay & Component Testing VoltmeterCountry/Region of Manufacture :China
