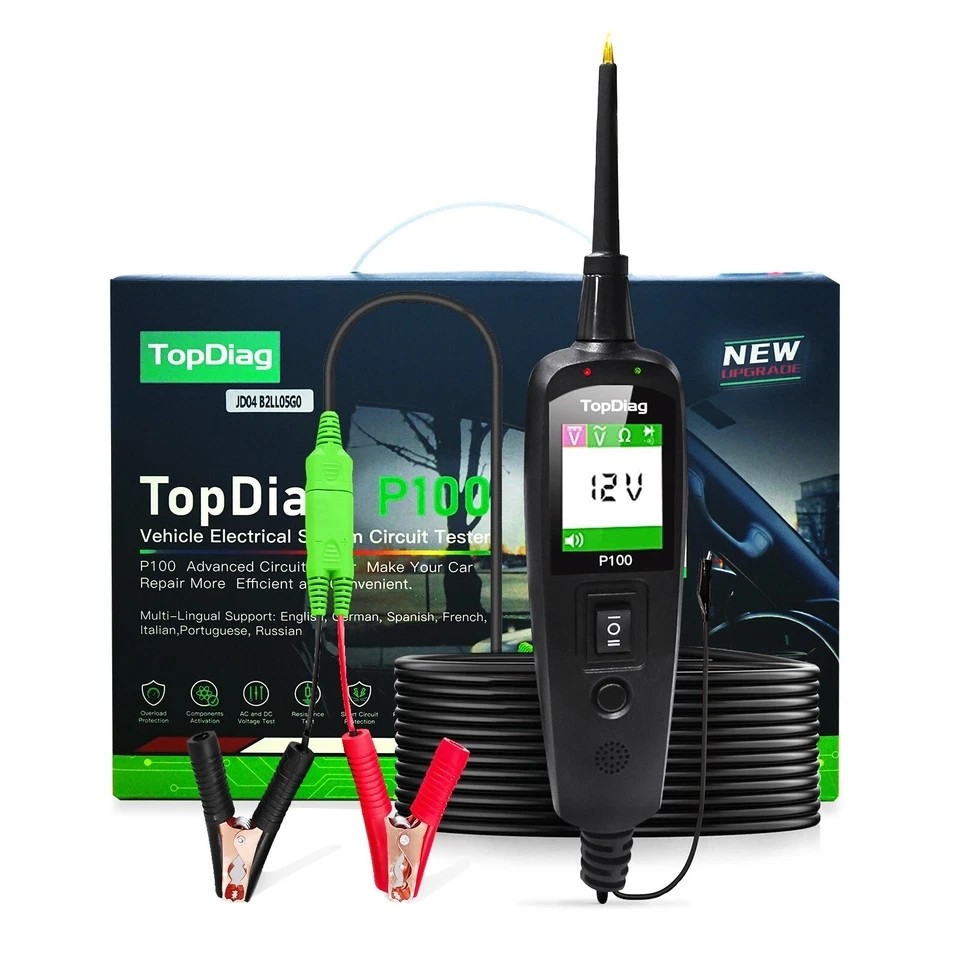

Topdiag P100 12-24V Car Electrical Circuit Tester Power Probe AVO Meter 2M Cable For Sale

P100 12V 24V Car Electrical Circuit Tester Power probe AVO meter Diagnostic Tool

Product Description:

Manufacturer Part NumberP100AccessoriesCarrying Case, Clamps, Probes, User Guide, Adapter CableBrandJDiagWarranty3 YearVolt24 voltFeaturesAnalog Display, Continuity Testing, Digital Display, Relay & Component Testing, VoltmeterCountry/Region of ManufactureChinaVehicle TypeATV, Heavy Duty/Commercial, Motorcycle, Passenger VehiclePower8WFeatureCar Diagnostic Power ProbeFeature 1Car Auto Circuit TesterFeature 2Circuit Tester PowerScan Electrical Test ToolFeature 3BT260 Power Probe Electrical TestersFeature 4Test mode contain AV Voltage, Current Resistance, read AVOmeter

JDiag Power Pro P100 New Generation Automotive Electrical Circuit System Tester

1. JDiag Original Automotive Electrical Circuit System Tester for Cars and Trucks 0V - 70V
2. Voltage & Polarity Testing-Determine DC/AC Voltage and Postive/Negative quickly.
3. Resistance Continuity Testing- LCD Screen display the value of resistance.
4. AC Circuit Singal Testing- Fast to trubleshoot the sensors circuit problem.
5. Components Activation in your hand, in the vehicle or W/Ground.
6. Testing Trailer Lights and Connections-10M extension cable allow your to test Cars or Trucks.
7. Checking for Bad Ground Contacts and Locating Short TFT color display (160 x 128 dpi)

   Operating Temperature: 0 to 60°C (32 to 140 F°)

   Storage Temperature: -40 to 70°C (-40 to 185 F°)

   External Power: 12.0 or 24.0 V power provided via vehicle battery

   Dimensions: Length 165 mm * Width 40 mm * Height 27 mm

   Test Tool Specifications:

   • DC voltage range : 0-65V +1 digit
   • Resistance range : 0-200 K ohm
   • Frequency response of tone pass through
   • 0Hz to 10K hz.
   • Circuit Breaker
   • Rating current: 1-10 Amp

   Testing Standard:

   • 100% current : no trip
   • 150% current: trip in one hour
   • 200% current: trip in 3-30 seconds.
   • 300% current: trip in 0.5-4.0 seconds.

   How to select language with P100 Circuit Tester

   1. Press [Mode Button] enter into the [Language] interface.

   2. Push [Power Switch Button] forward to select, Press and Hold [Mode Button] enter into L anguage setting interface.

   3. Press [Mode Button] to select desired language, Press and hold [Mode Button] back to working status.

   LCD HD Color Display (Adopt LCD color screen, the screen is clearer and the data is more intuitive).

   Package Contains For The Version of 2Meters Cable:

   • 1 x P100 Tester (2MMain Unit)
   • 1 x User Manual
   • 1 x Package Box

   Note: The extension cable is not included with this version.
