Product Overview

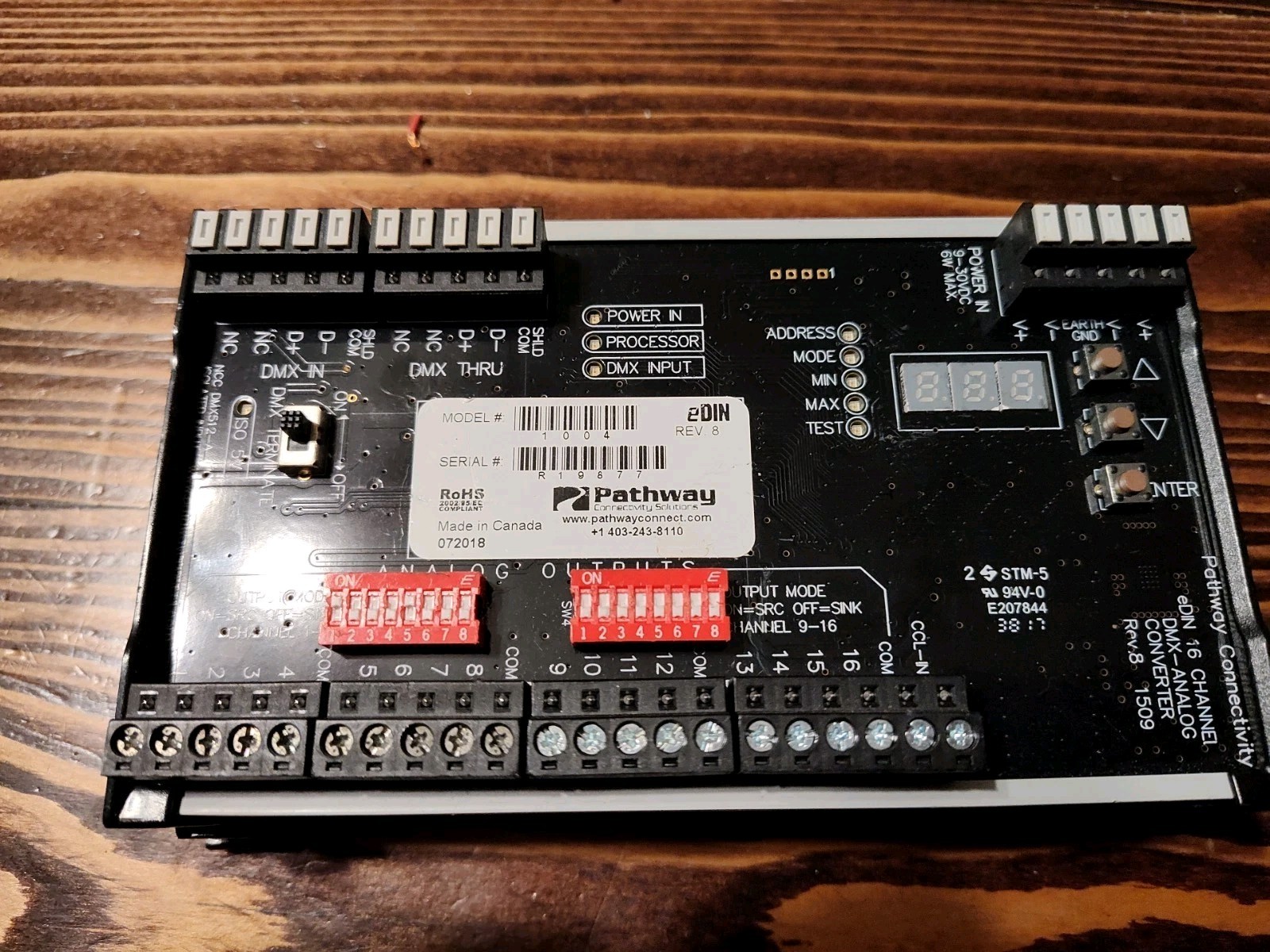

The Pathway eDIN Demultiplexer converts DMX512 signals to 0-10VDC, or other common DC ranges, or to current-sinking control of Mark 7-type fluorescent ballasts, solid state relays or fully isolated LED fixture drivers requiring 0-10V dimming control
As well as selectable DC output, the eDIN Demultiplexer provides simple, elegant DMX control over dimmable LED drivers. It also can provide single DMX-channel control over both the driver and the mains power breaker in Mark 7-type dimmable fluorescent ballast systems.
Starting with the Rev 4 board, sinking control down to zero volts is possible, along with a new panic contact closure input. The Rev 5 board is now factory -configured for out-of-the-box sinking control of LED systems. (Rev numbers appear on the paper serial number label, and are different from the circuit board revisions.
Pathway Connectivity 1004 Demultiplexer Features:
Contact Closure \"panic\" input drives all outputs to full
16 analog outputs
Selectable 0-10, 0-15, 0-2.5, & 0-5V output modes, or fully user-customized min/max
Selectable current sink output
10mA current source per channel
30mA current sink per channel (Rev 5 and above)
User-set DMX start address for easy daisy-chaining of modules
RDM discoverable and configurable
LED display and pushbuttons for configuration
2500V DMX input signal opto isolation
250V DMX fault protection
End-of-line termination switch
Status LEDs for power, DMX input
Pluggable screw terminals for all connections
DMX pass-thru connector
Snap-on DIN rail housing
DIN rail mounting section included
Pathway Connectivity 1004 Demultiplexer Specifications:
Output Rating:
10 VDC nominal, 16 VDC maximum
10mA current source per channel
Rev 5 boards and above: 30mA current sink per channel
(For earlier Rev numbers, please check with the factory.)
Power Supply:
9-30V DC, 5W supply required.
Use eDIN 1001 power supply or equal
Isolation:
2500V opto isolation
250V fault protection
Size: 3.5” x 6” x 1.25” (90mm x 152mm x 30mm )
Mounting: 35mm x 7.5mm DIN rail (included)
