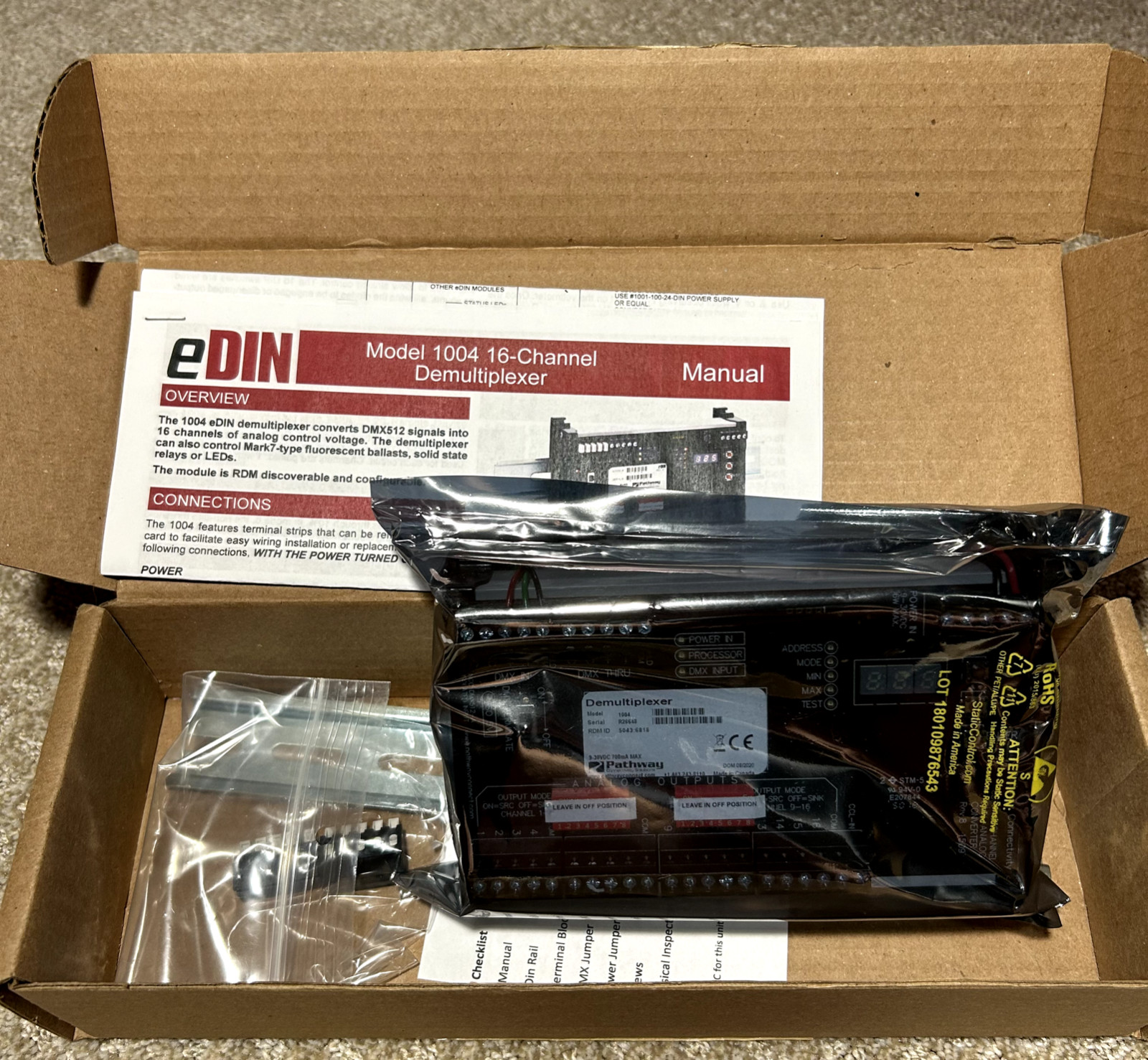

Pathway eDIN Demultiplexer converts DMX512 signals into 16 channels of analog control voltage.
The Demultiplexer can also control Mark 7–type fluorescent ballasts, solid state relays or LEDs.
The module is RDM discoverable and INPUTSIGNAL:
OUTPUTS: OUTPUTRATING:
9-30 VDC, 2.5W
ANSI E1.11 DMX512-A, ANSI E1.20 RDM
16 analog 0-10VDC nominal, maximum 16VDC 10MA current drive per channel sourcing or sink- ing, diode isolated
The eDIN Demultiplexer features terminal strips that can be removed from the card to facilitate easy wiring installa- tion or replacement. Make the following connections,WITH THE POWER TURNED OFF.
POWER
The Demultiplexer will operate on a range of voltages from 9-30 volts DC. Each eDIN module requires 250mA. Observe the correct polarity when connecting to V+ and V-. A second set of terminals are provided as a thru con- nection to other eDIN modules. The EARTH GND termi- nal must be connected to the enclosure’s chassis or elec- trical ground terminal to ensure EMC compliance.
DMX
DMX connections consist of a shield and a data pair. A
optional second auxiliary data pair is also occasionally
employed. DMX IN usually comes from a control console,
®
Pathport node, architectural controller or opto-splitter.
DMX THRU provides a means to daisy-chain DMX to other eDIN modules. Connect DATA+ and DATA- to D1+ and D1-. Observe the same polarity convention through- out the system. Connect the cable shield or common to the SHLD COM terminal.
ANALOG OUTPUTS
Sixteen analog output terminals are provided in groups of four, each with a common terminal. All common terminals are internally connected, so only one needs to be tied to the device being controlled. Outputs are rated up to 15 volts DC, 10mA per channel. Maximum wire run is 150 meters (500 ft.).
