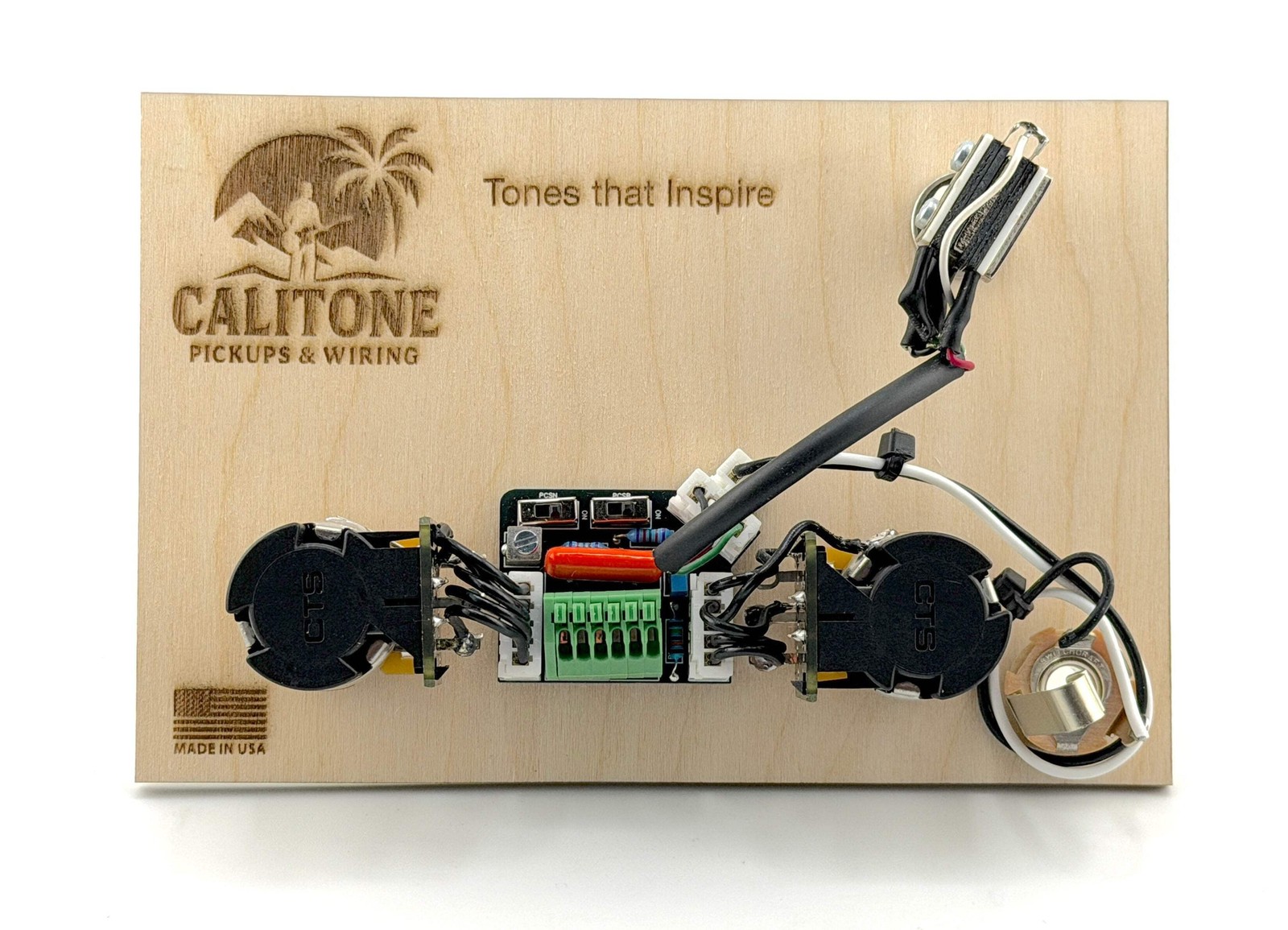

PRS Solderless Wiring Harness 1V-1T 3-Way Toggle Balanced Coil SplitsUpgrade your PRS-style guitar with a premium solderless wiring harness designed for dual humbuckers, a 3-way toggle switch, and a streamlined control layout. Built with USA-spec components and performance-focused wiring, this harness delivers clarity, versatility, and reliable operation in a clean, easy-to-install format. Perfect for players upgrading a PRS Custom 24, Custom 22, or SE model, this system gives you pro-level tone with modern switching options and the flexibility to evolve your setup over time. Premium USA-Spec Components Built with trusted components for consistent performance: 1 × CTS 500k Audio Taper Volume Pot (with coil split) 1 × CTS 500k Push-Pull Tone Pot (with coil split) Switchcraft 3-Way Toggle Switch 0.022µF Orange Drop Capacitor (100V) for smooth, musical tone roll-off Switchcraft 1/4" Wired Output Jack Swap Pickups in Minutes — No Soldering One of the biggest advantages of the Calitone solderless system is the ability to change pickups quickly and easily: Install or swap pickups without soldering Test different pickups without rewiring your guitar Ideal for experimenting with tone or upgrading over time Clean, secure terminal connections Whether you're dialing in your perfect tone or planning future upgrades, this harness makes your guitar fully modular. Advanced Coil Split System (Volume + Tone Controls) This harness features coil split functionality integrated directly into the controls for maximum flexibility: Coil split accessible from both volume and tone knobs Quickly switch between full humbucker and single-coil tones Brighter, more articulate tones on demand Ideal for clean, edge-of-breakup, and dynamic playing Selectable Balanced Coil Splits Unlike traditional coil splits that often suffer from volume drop, this system includes selectable balanced coil split options: Improved output when split — closer to full humbucker volume More usable tones across all positions Better balance between pickups when split Designed to retain body while adding clarity This makes coil splitting far more practical in real-world playing situations. Volume Clarity Circuit (Treble Bleed) Keep your tone clear as you roll back the volume: 1,000 pF (0.001µF) capacitor + 150k resistor (parallel) Retains high-end without sounding harsh Smooth, natural volume response across the full sweep Designed for PRS Layouts Optimized for guitars with: 2 Humbuckers3-Way Toggle Switch1 Volume, 1 Tone, 3-Way Toggle Clean layout ensures proper spacing and straightforward installation in PRS-style control cavities. Also compatible with many import models and kit guitars using the same control layout—ideal for builders and custom projects. Import models may need potentiometer holes widened using a hand reamer. Additional Fitment Information This harness may also be compatible with other PRS-style models that use a similar control layout. If you're unsure about fitment for your specific guitar, please contact us before ordering and we’ll help confirm compatibility. PRS Solderless Wiring Harness 1V-1T 3-Way Toggle Balanced Coil Splits
Upgrade your PRS-style guitar with a premium solderless wiring harness designed for dual humbuckers, a 3-way toggle switch, and a streamlined control layout. Built with USA-spec components and performance-focuséd wiring, this harness delivers clarity, versatility, and reliable operation in a clean, easy-to-install format.
Perfect for players upgrading a PRS Custom 24, Custom 22, or SE model, this system gives you pro-level tone with modern switching options and the flexibility to evolve your setup over time.
Premium USA-Spec Components
Built with trusted components for consistent performance:
- 1 × CTS 500k Audio Taper Volume Pot (with coil split)
- 1 × CTS 500k Push-Pull Tone Pot (with coil split)
- Switchcraft 3-Way Toggle Switch
- 0.022µF Orange Drop Capacitor (100V) for smooth, musical tone roll-off
- Switchcraft 1/4" Wired Output Jack
Swap Pickups in Minutes — No Soldering
One of the biggest advantages of the Calitone solderless system is the ability to change pickups quickly and easily:
- Install or swap pickups without soldering
- Test different pickups without rewiring your guitar
- Ideal for experimenting with tone or upgrading over time
- Clean, secure terminal connections
Whether you're dialing in your perfect tone or planning future upgrades, this harness makes your guitar fully modular.
Advanced Coil Split System (Volume + Tone Controls)
This harness features coil split functionality integrated directly into the controls for maximum flexibility:
- Coil split accessible from both volume and tone knobs
- Quickly switch between full humbucker and single-coil tones
- Brighter, more articulate tones on demand
- Ideal for clean, edge-of-breakup, and dynamic playing
Selectable Balanced Coil Splits
Unlike traditional coil splits that often suffer from volume drop, this system includes selectable balanced coil split options:
- Improved output when split — closer to full humbucker volume
- More usable tones across all positions
- Better balance between pickups when split
- Designed to retain body while adding clarity
This makes coil splitting far more practical in real-world playing situations.
Volume Clarity Circuit (Treble Bleed)
Keep your tone clear as you roll back the volume:
- 1,000 pF (0.001µF) capacitor + 150k resistor (parallel)
- Retains high-end without sounding harsh
- Smooth, natural volume response across the full sweep
Designed for PRS Layouts
Optimized for guitars with:
2 Humbuckers
3-Way Toggle Switch
1 Volume, 1 Tone, 3-Way Toggle
Clean layout ensures proper spacing and straightforward installation in PRS-style control cavities.
Also compatible with many import models and kit guitars using the same control layout—ideal for builders and custom projects.
Import models may need potentiometer holes widened using a hand reamer.
Additional Fitment Information
This harness may also be compatible with other PRS-style models that use a similar control layout. If you're unsure about fitment for your specific guitar, please contact us before ordering and we’ll help confirm compatibility.
× × × ×
