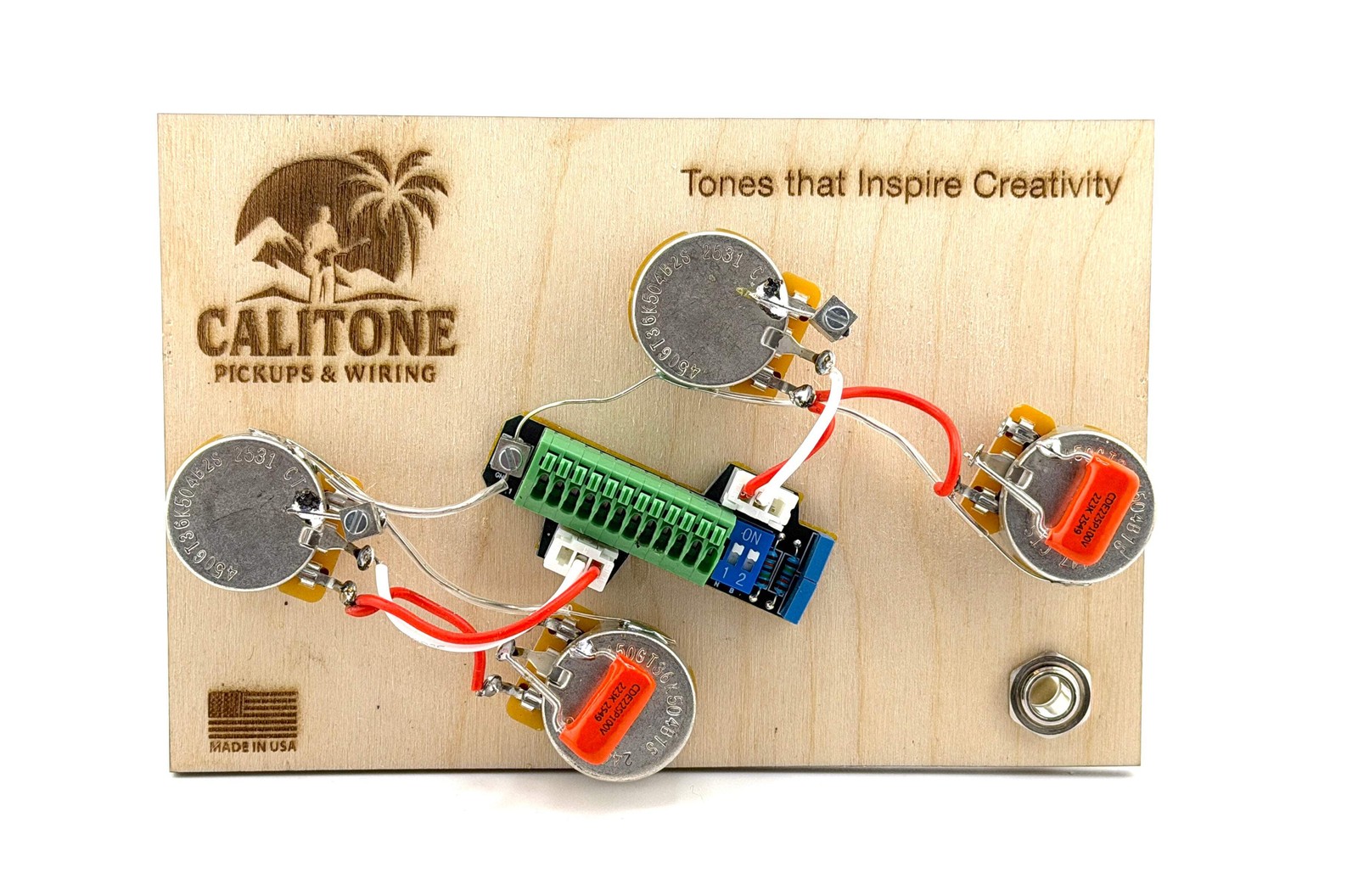

PRS Flex Fit Solderless Wiring Harness: Zach Myers 594 & TremontiTransform your PRS Zach Myers 594, Tremonti, or other PRS models using the diamond 594-style control layout with a premium solderless wiring harness designed specifically for this configuration. Built around a push-button terminal block system, this harness delivers clear, dynamic humbucker tone with fast, clean installation—no soldering required. Drop-in simplicity. Pro-level tone. Total control. Designed for PRS Diamond Control Layouts (Important) This harness is specifically designed for PRS guitars using the diamond 594-style control layout found on models such as: PRS Core McCarty 594 PRS Zach Myers 594 PRS Tremonti Other PRS models using the same diamond knob layout Unlike many standard PRS layouts, this configuration follows a Les Paul-style control arrangement: Top row = Neck pickup controls (Volume + Tone) Bottom row = Bridge pickup controls (Volume + Tone) This harness is wired specifically for that layout, ensuring correct control operation and an intuitive feel. Features CTS Pots Tuned for PRS Feel 2 × 500k CTS Short Shaft Audio Taper Volume PotsSmooth, responsive volume control with excellent clarity and natural taper. 2 × 500k CTS Short Shaft Linear Taper Tone PotsEven, predictable tone roll-off for precise shaping. Volume Clarity Circuit (1000pF / 150k Parallel) Maintains high-end detail as you roll down volume, keeping your tone articulate and consistent across clean, edge-of-breakup, and high-gain settings. High-End Components 2 × 0.022µF Orange Drop Capacitors (100V) – Balanced, musical tone shaping Pre-Wired Leads – Clean, reliable signal path CTS Mono Output Jack – Low-noise, dependable performance Push-Button Terminal Block System This harness uses a push-button terminal block connection system—press to insert wire, release to lock. Benefits include: Tool-free installation Fast, clean wiring with no soldering required Secure wire retention Easy pickup swaps or rewiring Ideal for mods, upgrades, and experimentation Perfect for PRS electronics upgrades, pickup swaps (2-conductor or 4-conductor), clean DIY installs, and players who want flexibility without soldering. Why This Harness Works Built specifically for PRS diamond 594-style layouts Compatible with Core, Tremonti, Zach Myers, and similar models Correct Les Paul-style control mapping (neck top/bridge bottom) Push-button terminal block for fast, tool-free installation Volume Clarity Circuit preserves high-end at lower volumes Premium CTS components throughout No soldering required Ideal for upgrades, mods, and custom builds Compatibility Notes Works with 2-conductor and 4-conductor humbuckers Designed only for PRS guitars using the diamond 594-style control layout CTS pots are larger than stock metric pots, so minor hole widening may be required on some SE/import models Always verify cavity depth and spacing before installation Build Time This is a build-to-order product. Please allow 1 to 14 business days for assembly before shipment. PRS Flex Fit Solderless Wiring Harness: Zach Myers 594 & Tremonti
Transform your PRS Zach Myers 594, Tremonti, or other PRS models using the diamond 594-style control layout with a premium solderless wiring harness designed specifically for this configuration. Built around a push-button terminal block system, this harness delivers clear, dynamic humbucker tone with fast, clean installation—no soldering required.
Drop-in simplicity. Pro-level tone. Total control.
Designed for PRS Diamond Control Layouts (Important)
This harness is specifically designed for PRS guitars using the diamond 594-style control layout found on models such as:
- PRS Core McCarty 594
- PRS Zach Myers 594
- PRS Tremonti
- Other PRS models using the same diamond knob layout
Unlike many standard PRS layouts, this configuration follows a Les Paul-style control arrangement:
- Top row = Neck pickup controls (Volume + Tone)
- Bottom row = Bridge pickup controls (Volume + Tone)
This harness is wired specifically for that layout, ensuring correct control operation and an intuitive feel.
FeaturesCTS Pots Tuned for PRS Feel
2 × 500k CTS Short Shaft Audio Taper Volume Pots
Smooth, responsive volume control with excellent clarity and natural taper.
2 × 500k CTS Short Shaft Linear Taper Tone Pots
Even, predictable tone roll-off for precise shaping.
Volume Clarity Circuit (1000pF / 150k Parallel)
Maintains high-end detail as you roll down volume, keeping your tone articulate and consistent across clean, edge-of-breakup, and high-gain settings.
High-End Components
- 2 × 0.022µF Orange Drop Capacitors (100V) – Balanced, musical tone shaping
- Pre-Wired Leads – Clean, reliable signal path
- CTS Mono Output Jack – Low-noise, dependable performance
Push-Button Terminal Block System
This harness uses a push-button terminal block connection system—press to insert wire, release to lock.
Benefits include:
- Tool-free installation
- Fast, clean wiring with no soldering required
- Secure wire retention
- Easy pickup swaps or rewiring
- Ideal for mods, upgrades, and experimentation
Perfect for PRS electronics upgrades, pickup swaps (2-conductor or 4-conductor), clean DIY installs, and players who want flexibility without soldering.
Why This Harness Works
- Built specifically for PRS diamond 594-style layouts
- Compatible with Core, Tremonti, Zach Myers, and similar models
- Correct Les Paul-style control mapping (neck top/bridge bottom)
- Push-button terminal block for fast, tool-free installation
- Volume Clarity Circuit preserves high-end at lower volumes
- Premium CTS components throughout
- No soldering required
- Ideal for upgrades, mods, and custom builds
Compatibility Notes
- Works with 2-conductor and 4-conductor humbuckers
- Designed only for PRS guitars using the diamond 594-style control layout
- CTS pots are larger than stock metric pots, so minor hole widening may be required on some SE/import models
- Always verify cavity depth and spacing before installation
Build Time
This is a build-to-order product. Please allow 1 to 14 business days for assembly before shipment.
× × × ×
