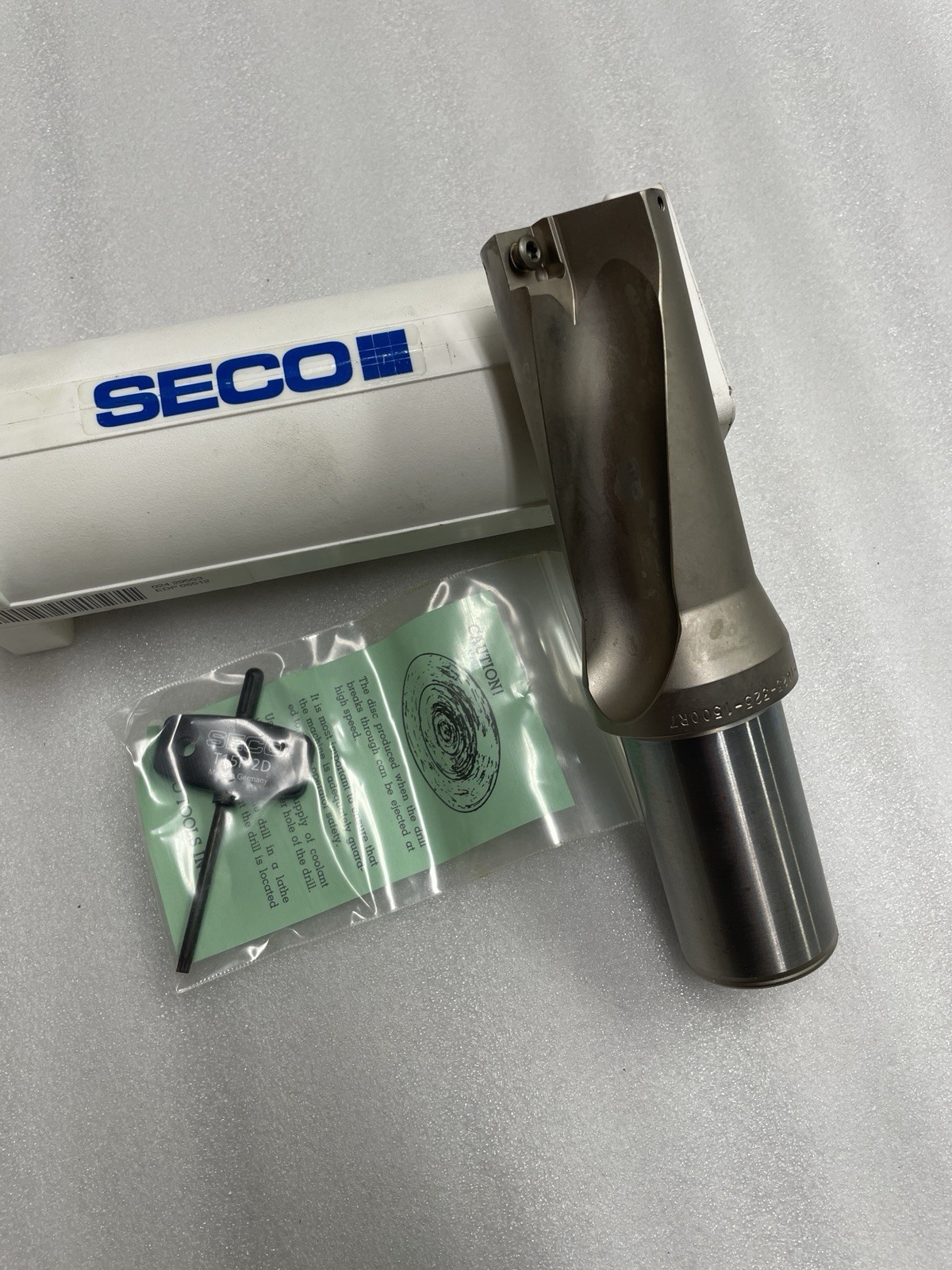

New Seco Perfomax coolant-through indexable drill body in the original Seco storage case as pictured.
Manufacturer: Seco Tools
Series: Perfomax SD502
Designation: SD502-1625-325-1500R7
Seco Item / Order Number: 02429553
Specifications:
- Cutting diameter: 1.625 in / 1-5/8 in / 41.28 mm
- Maximum drilling depth: 3.250 in / 3-1/4 in / 82.55 mm
- Drilling depth ratio: 2xD
- Shank diameter: 1.500 in / 1-1/2 in / 38.10 mm
- Shank length: 2.625 in / 66.68 mm
- Overall length: 7.378 in / 187.40 mm
- Body/projection length: 4.628 in / 117.55 mm
- Flute length: 3.447 in / 87.55 mm
- Cylindrical shank with drive flat
- Right-hand cutting direction
- Two indexable insert pockets
- Center insert family: SPGX12T3-C1
- Peripheral insert family: SCGX120408
- Coolant-through design
Lot includes:
- Seco SD502 indexable drill body
- Original Seco storage case
- Seco T15P-2D wrench
- Instruction sheet
- Inserts/components installed as pictured
New and unused. The storage case may show shelf wear from storage. Please review all photos closely for the exact condition and included contents.
Free shipping included.
