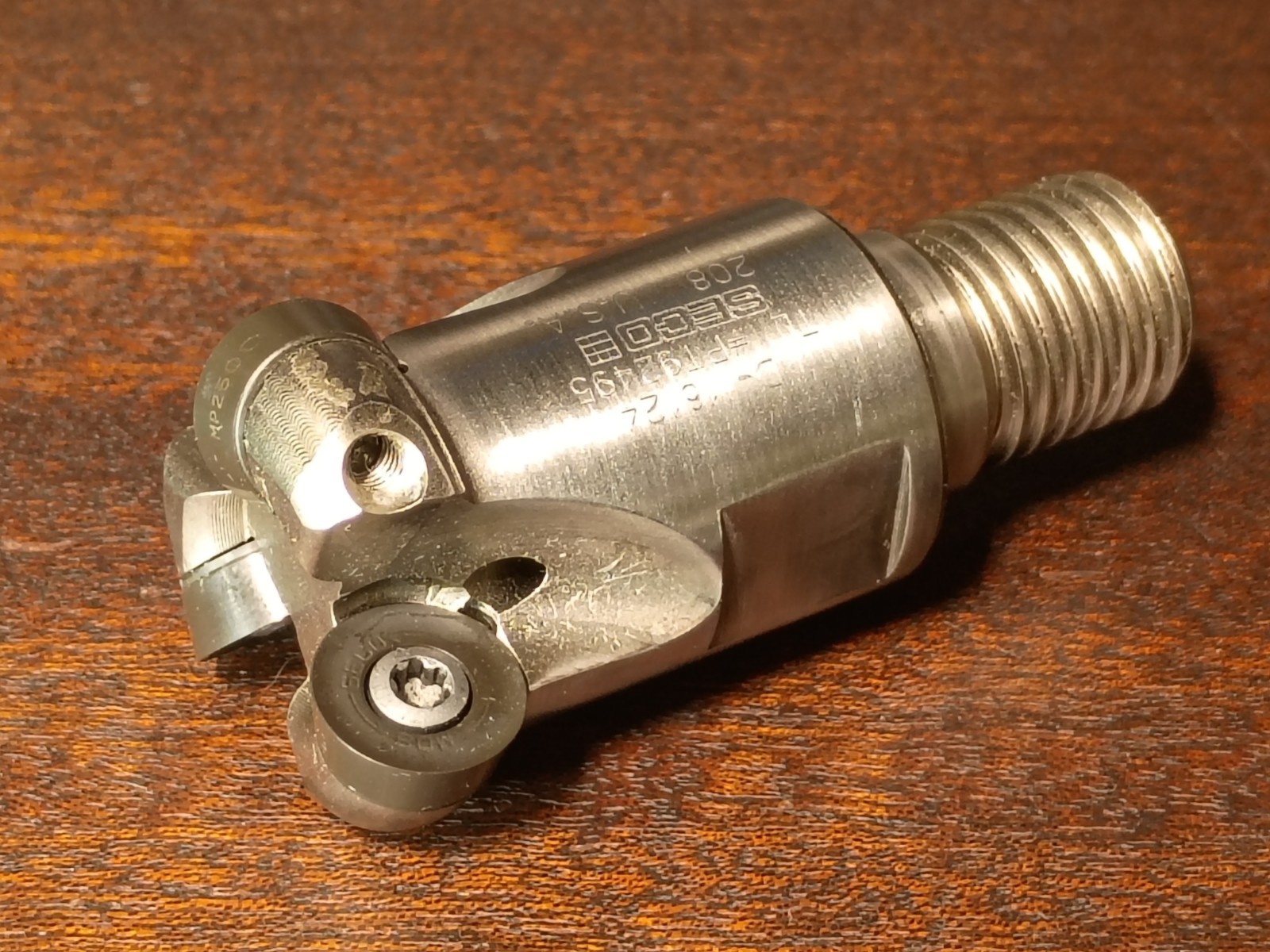

Seco PT92495 RPHT1204 M16 Modular Copy Mill (3) New Seco M0T-M08 MP2500 Inserts For Sale

Item #747

Additional inserts may be available, please inquire if Interested.

D-116124

TL # PT92495

The Seco PT92495 is a specialty indexable modular cutter head designed primarily for complex 3D profiling, die/mold cavity profiling, and copy milling operations.Part of Seco Tools' milling lineup, this tool is engineered to interface with modular extension shanks and hold high-performance round button inserts.

• Modular System Design: It utilizes Seco's M16 thread connection (fully compatible with the Seco Combimaster Threaded System). This allows it to be threaded into steel, heavy-metal, or solid caroffere anti-vibration modular shanks for deep-cavity reach.
• Pocket Capacity: Built with 3 precision-machined insert pockets (effective peripheral teeth / ZEFP=3) ensuring efficient chip evacuation.
• Insert Compatibility: Engineered for RP..1204 style round inserts (12mm outer diameter, approximately 1/2" inscribed circle).
• Through-Spindle Coolant: Features internal coolant holes bored directly behind each pocket to direct cutting fluid exactly onto the flank face, ensuring stable thermal control during roughing or finishing.

• Die and Mold Machining: Ideal for roughing and semi-finishing deep cavities, core profiles, and complex 3D surfaces where solid end mills lack the reach or rigidity.
• Aerospace and Power Gen Components: Used for copy milling curved surfaces on turbine blades, blisks, and structural aluminum or titanium frames.
• High-Feed Copy Milling: When paired with a strong grade like MP2500, it handles interrupted cuts or casting surfaces smoothly because the round insert geometry distributes cutting forces axially rather than radially.

The combination of a Seco PT92495 (M16 Combimaster style) modular copy mill cutter head bundled with three Seco RPHT1204M0T-M08 MP2500 inserts typically carries a market value between $160 and $260 on the secondary/surplus market.If purchased brand new through standard industrial distribution networks, the cost for a comparable Seco copy mill cutter head typically exceeds $450+, with the inserts sold in full packs rather than small loose quantities.

• Surplus Market Price: $120.00 – $180.00
• Details: This specific modular tool utilizes a threaded M16 backend connection designed for Seco’s standard modular shank system. It features 3 pockets specifically machined to seat round, indexable RP..1204 style (12mm or roughly 1/2" inscribed circle) copy milling inserts. Similar new surplus Seco M16 indexable heads on the secondary market hover right around the $150 to $200 range.

• Individual Insert Value: $14.00 – $17.00 per insert
• 3-Insert Bundle Value: $42.00 – $51.00
• Details: The MP2500 is a highly versatile, reliable PVD or CVD coated caroffere grade optimized by Seco Tools for steel, alloy steel, and general multi-material milling operations. The M08 chipbreaker geometry provides a balance of edge strength and free cutting action. Authorized retail pricing found via industrial vendors like Sowa Tool lists a single indexable insert variant around $15.40, whereas full boxes of 10 usually run between $150 and $170 depending on active distributor promotions.
