Item Specifics:

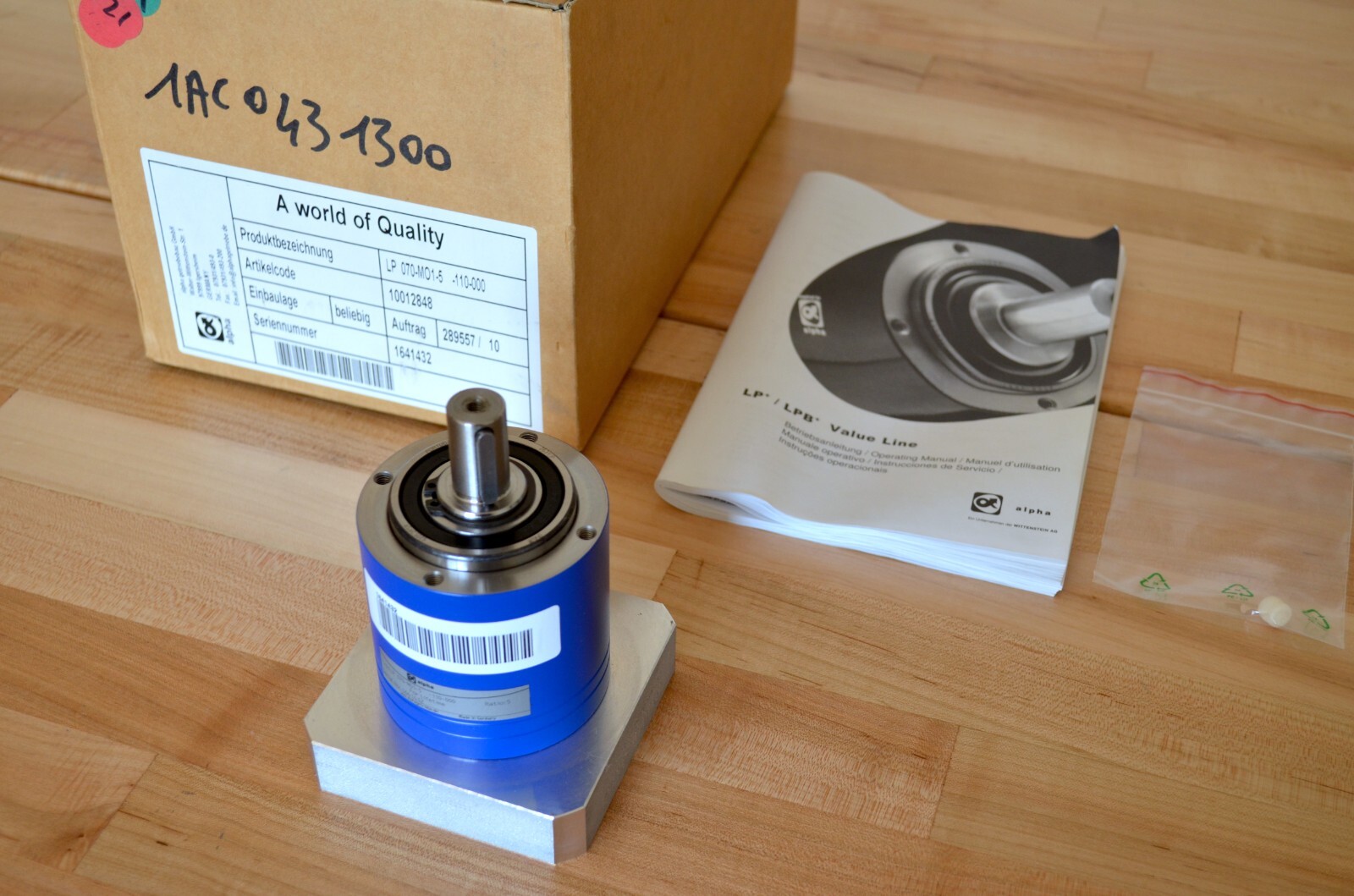

New Wittenstein Alpha
LP070-MO1-5 -110-000
Planetary Gearhead5:1 Ratio
90mm Input Motor Mount
Includes Instruction Manual
Brand New in Original Box
Item Description:
This is a brand new Wittenstein Alpha high
precisiongearhead, in perfect condition.
It is a model LP070-MO1-5 (ratio 5:1)
Output shaft is 16mm dia. w/ key.
Inputshaft diameter is 14mm.
(See photos for mounting dimensions)
LP070-MO1-5 Spec\'s:
Rated Output Torque = 21 Nm / 190in-lbs
Peak Output Torque = 40 Nm / 350in-lbs
Rated Input Speed = 3,700 rpm\'s
Max Input Speed = 6,000 rpm\'s
Average Efficiency = 97%
Torsional Rigidity = 3.3 Nm/arc-min
Radial Load = 1,450 N
Axial Load = 1,550 N
