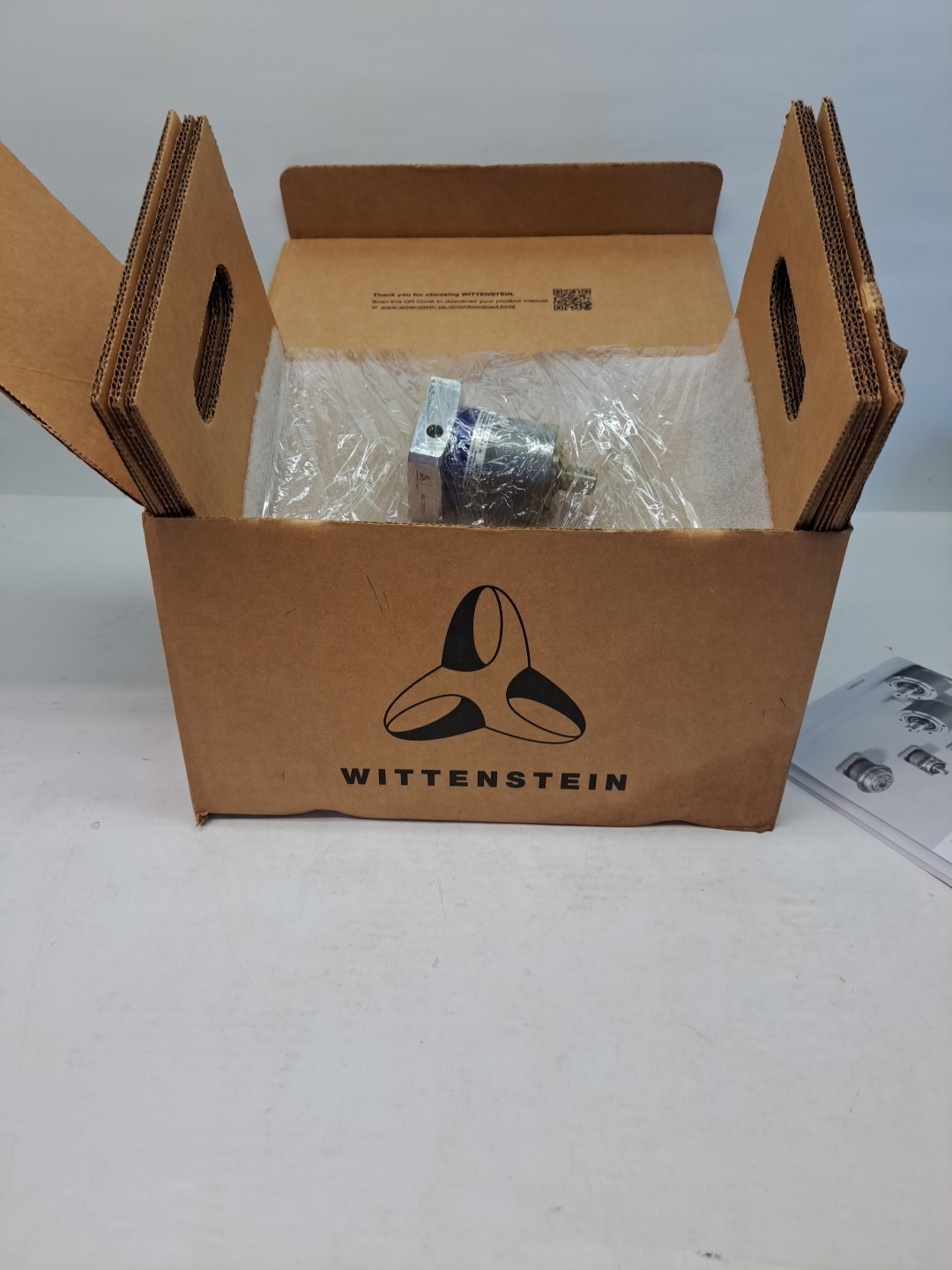

NEW WITTENSTEIN ALPHA NP-005S-MF1-10-1B1-1S GEARHEAD GEARBOX
Items acquired from large industrial parts room.
Units or boxes may be dusty from storage. Please see pictures for condition and details.
We do not have the ability to test these parts; however, we understand them to be in good working condition and guarantee them to work or your money back.
Free shipping. USA Seller. Fast AI descriptions below:
The WITTENSTEIN ALPHA NP-005S-MF1-10-1B1-1S is a planetary servo gearbox from WITTENSTEIN's "NP alpha Value" line. It is a compact, high-precision gearhead designed to provide speed reduction and torque multiplication for servo motor applications.
Details:
Brand: WITTENSTEIN alpha (a leading manufacturer of high-precision gearheads).1
Series: NP alpha Value. The "NP" indicates it's a planetary gearbox with an output shaft, designed for universal use in mid-range applications.2
Size: 005 (one of the smaller sizes in the NP series).3
Type: Standard planetary gearbox.
Stages: 1 (single-stage gearbox).
Ratio: 10:1. This means for every 10 rotations of the input (motor) shaft, the output shaft rotates once.
Output Type: Keyed output shaft (indicated by "1B1").
Clamping Hub Diameter: 11 mm. This is part of the motor attachment system.
Backlash: Standard backlash, typically ≤ 10 arcmin. Low backlash is a key feature of servo gearboxes for precise positioning.4
Nominal Torque (T2a): 6 Nm.5
Maximum Acceleration Torque: 13 Nm.
Emergency Stop Torque: 26 Nm.
Nominal Input Speed: 4600 RPM.6
Maximum Input Speed: 10000 RPM.
Efficiency: 97% at full load.
Moment of Inertia: 0.04 kgcm².
Weight: 0.7 kg.
Protection Class: IP64, indicating protection against dust ingress and splashing water.
Lubrication: Lubricated for life.
Operating Noise: ≤ 58 dB(A).
Paint: Dark pearl gray / innovation blue.
Applications:
WITTENSTEIN alpha gearboxes like the NP-005S are used in various industries and applications requiring high precision, dynamics, and reliability in motion control:7
Automation and robotics: For precise positioning, material handling, and assembly tasks.
Machine tools: For axes requiring accurate movement and high rigidity.
Packaging machinery: For precise control of motion profiles.
Printing machinery: Where accurate registration and high speeds are crucial.
Medical technology: In devices requiring smooth and controlled motion.
General industrial machinery: Any application needing to match a servo motor's speed and torque to the load requirements while maintaining high accuracy.
Linear drive systems (when combined with racks and pinions).
Pricing:
Pricing for the WITTENSTEIN ALPHA NP-005S-MF1-10-1B1-1S can vary significantly depending on the supplier and whether it's new or used. New units are typically found in the range of approximately $434.00 to $520.80.
Country of Manufacture:
WITTENSTEIN SE is a German company, headquartered in Igersheim, Germany.8 Their high-precision gearboxes, including the alpha series, are primarily manufactured in Germany.
