AC MOTOR, 2HP, 1725RPM, 3PH, 206-230V/460V, 56C/TEFC, WITH BASE For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

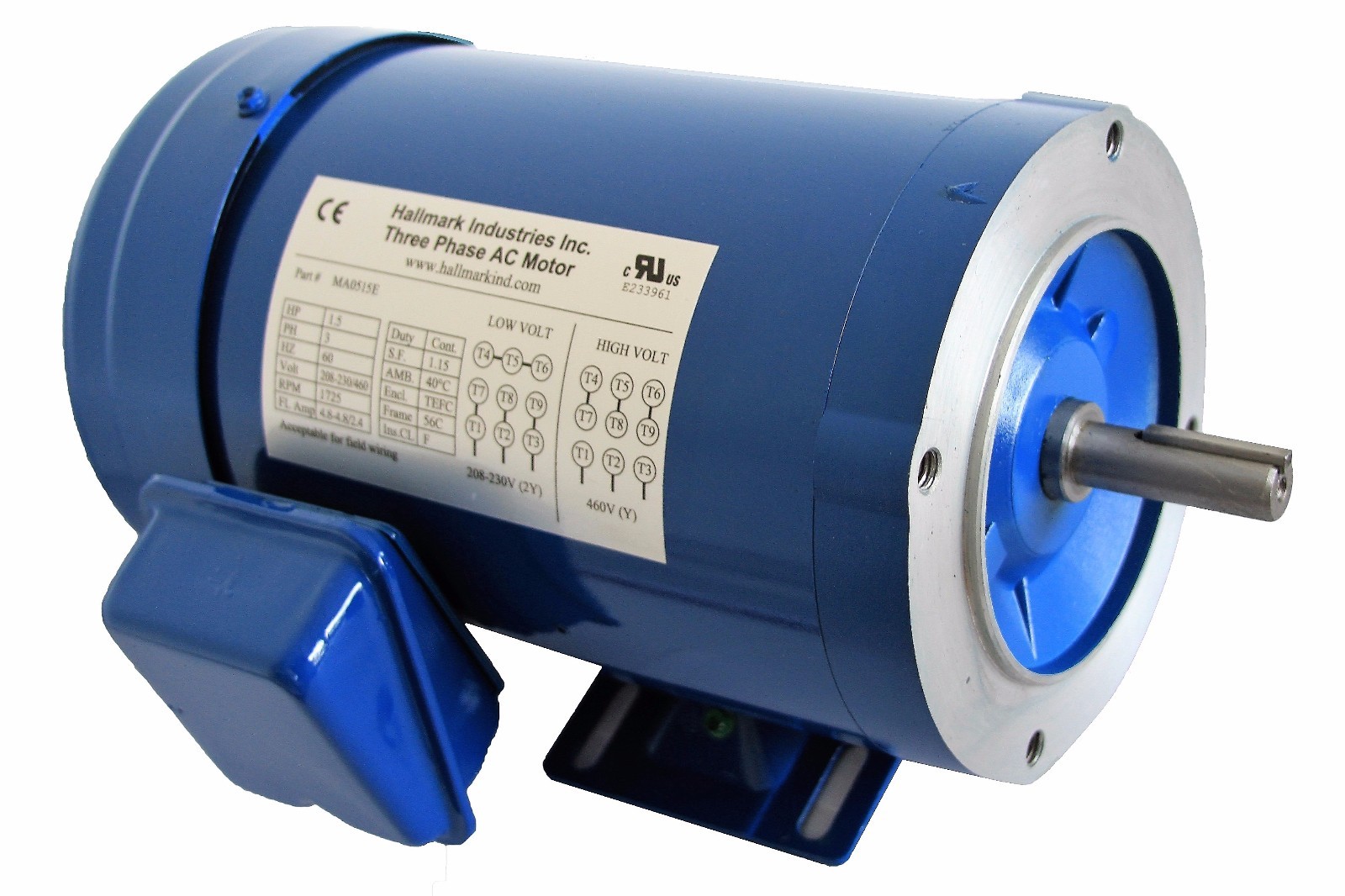

AC MOTOR, 2HP, 1725RPM, 3PH, 206-230V/460V, 56C/TEFC, WITH BASE:
$224.75
This motor is for 3 phase,206-230V/460V General purpose, AC Motor, 2HP, 1725RPM, 3PH/60HZ, 460V, 56C/ TEFC, F Insulation (for inverter duty), with removable foot, 1.15 Service Factor, Rolled Steel Frame, Reversible Rotation, 10:1 Variable Torque Rating, 2:1 Constant torque Rating.30 days worry free return policyWarranty: 12 months Dimension SheetFeatures - Totally Enclosed Fan Cooled (TEFC) enclosure
- Dual mounting with NEMA 56C and removable base
- Class F winding insulation
- Inverter duty
- Rolled steel shell frame / cast aluminum end bell
- Removable base / bolt-on/bolt-off mounting feet
- Large all-metal capacitor cover with rubber gasket
- Large easy-to-wire junction box with rubber gasket
- Heavy duty oversized ball bearings
- High tensile strength steel shaft
- Electrically reversible
- NEMA design B
- Service Factor: 1.15
|
|
