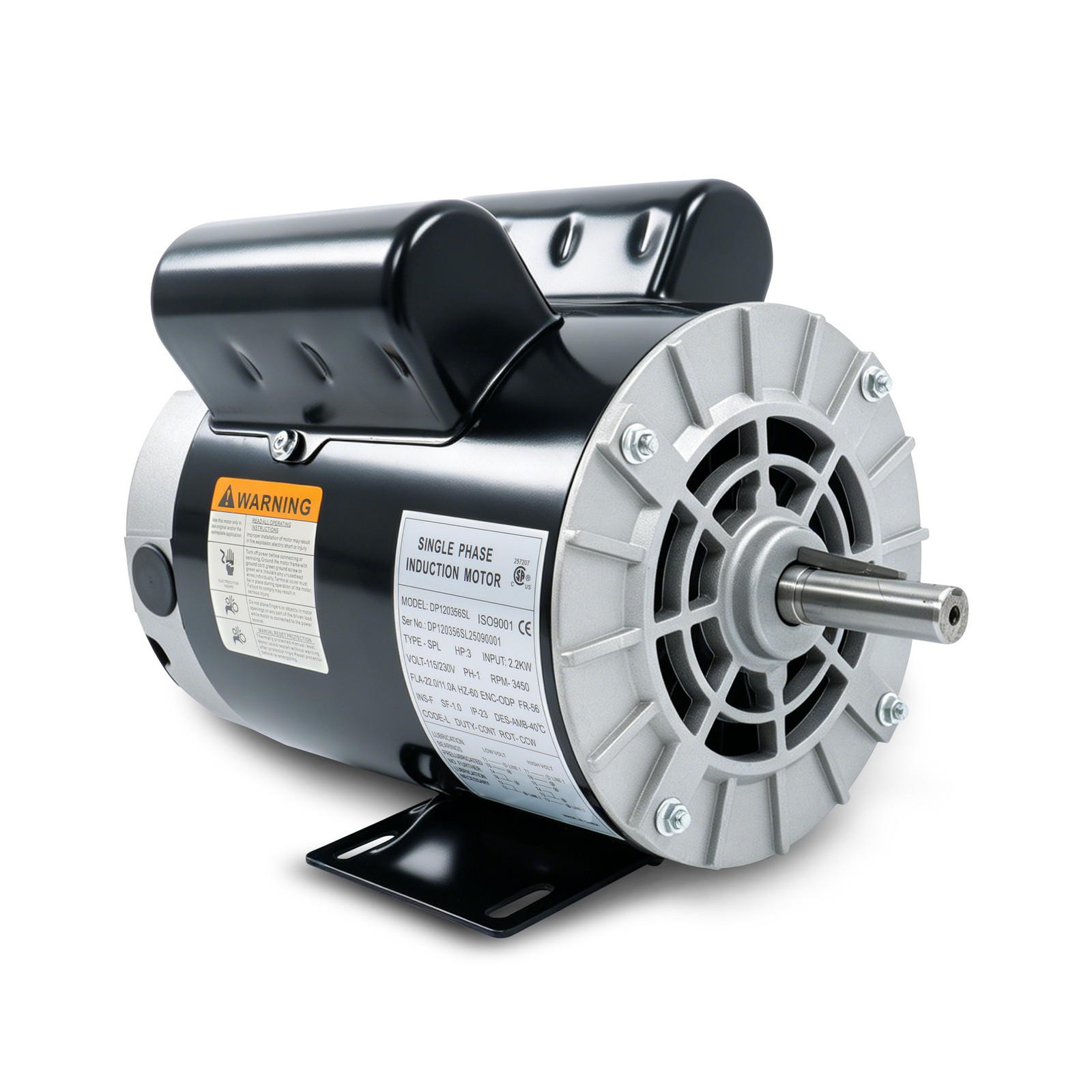

Material: Steel shellFull Load Amps: 15AC Phase: Single PhaseMounting Type: RigidAC Motor Type: 3HP SPL Electric Motor Air Compressor 3450RPM 56Frame 1Phase 115/230v 5/8"Shaft Description:
Material: Steel shell
Full Load Amps: 15
AC Phase: Single Phase
Mounting Type: Rigid
AC Motor Type: Steel Construction
The 3 HP compressor motor shell is made of premium steel material. The robust and reliable body can guard the internal circuit well against overheating. The attached steel bracket also offers excellent stability. Two capacitors and high-quality ball bearings ensure long service life. Mounting Type: Base-Mounted.
Overload Thermal Protector
The 3HP electric motor for air compressor adopts a manual reset knob allowing it to stand up against high-temperature overloads. A Reduced starting amperage design ensures the reduced voltage will start at a rated load.Insulation Class: F, Service Factor: 1.
Fast Heat Dissipation
The 56 frame electric motor has multiple heat dissipation strips for heat dissipation. It can also guard chips and objects against dropping into the motor and causing accidents. Power and protection that you can trust. Works hard while maintaining high performance.
ODP for Dry Environments
The open drip-proof motor demonstrates optimal performance when used in a relatively clean and dry environment. Specifically designed for air compressor duty uses. Ensure our motor matches the specific specifications listed on your compressor before purchase.
High performance,reliable quality
We work with every effort to provide quality products and professional service.
Specification:
Model: CM03256
Type: SPL
Input: 2.2 kW
Horsepower: 3 HP SPL
Voltage: 115/230V
Phase: Single Phase, 2 Pole
Amperage: 22.0/11.0
Rated Speed: 3450 RPM
Frequency: 60 Hz
Synchronous Speed: 3600 RPM
Frame: 56 Frame
Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft
Shaft Length: 1.875 in / 4.8 cm
Rotation: CCW
Service Factor: 1
Efficiency: 80%
Insulation Class: F
Mounting Type: Base-Mounted
Enclosure Type: ODP (Open Drip-Proof)
IP Rating: IP 23
Current Type: AC
About Delivery:
We have warehouses in California and New Jersey
We will follow the principle of nearest delivery
When one warehouse is out of stock, it will be shipped from another warehouse
Thank you for your understanding
Package Product List:
1 × Air Compressor Electric Motor
Item SpecificsCountry of Origin United StatesBrand findmallMPN IN2937168ALNEMA Frame Suffix 56 FrameMounting Type RigidIP Rating IP23Type SPLInput 2.2 KWSynchronous speed 3600 RPMShaft length 1.875 inchRotation CCW (Counter clockwise rotation when viewed from the shaft enEfficiency 80 %Actual Rated Input Voltage 115/230,Rated Load (HP) 3HP SPLFull Load Amps 22/11 AIEC Frame Size 56AC Frequency Rating 60 HzEnclosure Type ODP (Open Drip-Proof)Base RPM 3450Shaft Type KeyedAC Motor Type Induction/AsynchronousShaft Diameter 5/8 inReversible/Non-Reversible Non-ReversibleCurrent Type ACService Factor 1.15Nominal Rated Input Voltage 115 V, 208 V, 120 V, 240 V, 230 VAC Phase Single PhaseManufacturer Warranty 1 yearGross weight 19.12 kg / 42.15 lbs
Introduction of Promotion Fold over fold
Payment Shipping Usually your Items will be shipped within 1-3 business day after your payment is cleared.
Returns Refund is valid within 30 days after thepayment date
Item must be returned in original packing same as reached
