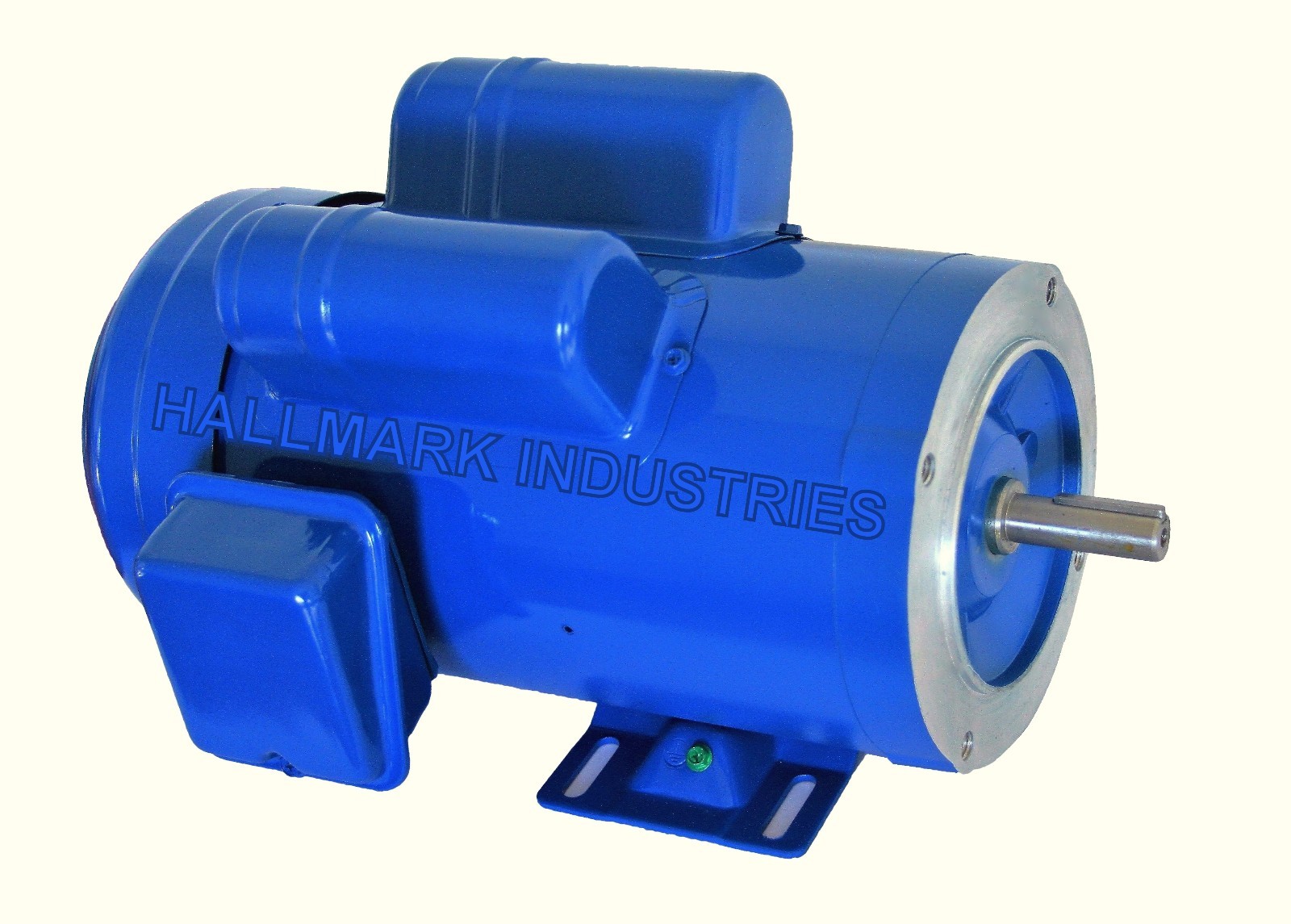

AC MOTOR, 1.5HP, 1725RPM, 1PH, 115V/208-230V, 56C/TEFC, With base For Sale

AC Motor, 1.5HP, 1725RPM, 1PH/60HZ, 115V/208-230V, 56C/TEFC, Capacitor Start and capacitor run, with removable foot, SF 1.15.
This motor has two capacitors. 30 days worry free return policy!Warranty: 12 months

HP

1.5

Voltage

115V/208-230V

RPM

1725

Phase

1

Frame

56C

Hertz

60

Enclosure

TEFC

Full Load Amp

18/9.0

Overload

None

Shaft Size

5/8”

Service Factor

1.15

C dimension

15.1” (Max)

Return policy

30 days

Weight

44 lbs

Warranty

12 months

Features

• Totally Enclosed Fan Cooled (TEFC) enclosure
• Dual capacitor: capacitor start and capacitor run

• Dual mounting with NEMA 56C and removable base
• Class F winding insulation
• Dual voltage for 115V or 230V
• Rolled steel shell frame / cast aluminum end bell
• Removable base / bolt-on/bolt-off mounting feet
• Large all-metal capacitor cover with rubber gasket
• Large easy-to-wire junction box with rubber gasket
• Heavy duty oversized ball bearings
• High tensile strength steel shaft
• Electrically reversible by easily switching the wires.
• NEMA design B
• Service Factor: 1.15

(For faster delivery, please use your commercial address when your order. Thank you!)
