Senville 36000 BTU Quad Zone Mini Split - SENA-36HF/Q SENVILLE AURA ENERGY STAR® HEATS TO -22°F 36000 BTU Quad Zone
Ductless Mini Split System
Model: SENA-36HF/Q • Configurable 4-Zone • 23 SEER2 • ENERGY STAR® • 10-Year Warranty
ENERGY STAR® Certified
23 SEER2 — meets strict EPA efficiency guidelines while cutting heating & cooling costs year-round.
Up to $10,000 in Rebates
Qualifies for federal tax credits and state/local utility rebates. Check availability for your area.
36,000 Total BTU 4 Zones 23 SEER2 Rating 1,350 Sq. Ft. Max Up to $10,000 in Federal & State Rebates
This ENERGY STAR® certified system is eligible for federal tax credits and utility rebate programs.
System is pre-charged with R454B refrigerant for up to 100 ft. Professional installation required.
Quad Zone Configuration
Four independent zones — customize each room's comfort separately
1 9,000 BTU (Default)
- 150–450 sq. ft.
- Wall-mounted
- Whisper-quiet
- Smart control
Perfect for: Master Bedroom 2 9,000 BTU (Default)
- 150–450 sq. ft.
- Wall-mounted
- Whisper-quiet
- Smart control
Perfect for: Living Room 3 9,000 BTU (Default)
- 150–450 sq. ft.
- Wall-mounted
- Whisper-quiet
- Smart control
Perfect for: Guest Room 4 9,000 BTU (Default)
- 150–450 sq. ft.
- Wall-mounted
- Whisper-quiet
- Smart control
Perfect for: Home Office Perfect Applications
Quad zone flexibility for complete multi-room comfort
Large Homes
Complete climate control for homes up to 1,350 sq. ft. with four independently managed zones.
Multi-Level
Perfect for 2-story homes — set different temperatures on each floor for maximum comfort.
Small Offices
Zone control for multiple office rooms, conference spaces, and common areas — all from one outdoor unit.
Retail Spaces
Manage comfort independently in showrooms, stockrooms, offices, and customer areas.
Cold Climate Homes
Reliable heating down to -22°F (-30°C) — engineered for northern climates and harsh winters.
Energy Savings
Only condition occupied rooms. COP of 4.0 and 23 SEER2 deliver outstanding energy efficiency.
Complete Quad Zone System
- Four configurable indoor units included
- Single powerful 36,000 BTU outdoor unit
- ENERGY STAR® certified — 23 SEER2
- Individual zone temperature control
- Heats down to -22°F (-30°C)
- Built-in diagnostics & refrigerant leak detection
- Wi-Fi & Amazon Alexa voice control
- 10-year compressor / 5-year parts warranty
36,000 BTU
OUTDOOR UNIT 23 SEER2 13 EER2 -22°F Min Heat 10.7 HSPF2 Outdoor Unit Dimensions
38.58" × 16.34" × 38.39" (W×D×H)
Weight: 211.86 lbs | Outdoor CFM: 3,037.2 ENERGY STAR® -22°F Heating AHRI Certified Leak Detection 10 Year Warranty Advanced Features
ENERGY STAR® Certified
23 SEER2 rating meets strict EPA guidelines — saves on energy bills and reduces your carbon footprint
-22°F Cold Climate Ready
Advanced heat pump technology maintains reliable heating even at extreme outside temperatures
Diagnostics & Leak Detection
Built-in smart monitoring alerts you to system issues and refrigerant leaks before they become problems
Independent Quad Zone Control
Set different temperatures in each room simultaneously — maximum comfort, minimum waste
Alexa & Wi-Fi Control
Voice commands, app scheduling, and remote management from anywhere in the world
R454B Eco Refrigerant
Latest low-GWP refrigerant — pre-charged for up to 100 ft. for flexible installation layouts
Outstanding Performance 23 SEER2 Rating 13 EER2 Rating 10.7 HSPF2 Rating 4.0 COP (W/W) Technical Specifications
Complete quad zone system specifications — SENA-36HF/Q
Cooling & Heating Total Capacity36,000 BTU Zone Config4 Zones (configurable) Cooling Range9,000 – 43,000 BTU Heating Range10,000 – 44,000 BTU Coverage AreaUp to 1,350 sq. ft. Min. Heating Temp-22°F / -30°C COP (W/W)4.0 Efficiency Ratings SEER223 EER213 HSPF2 (Region 4)10.7 HSPF2 (Region 5)8.5 ENERGY STARCertified Cooling Input Range600 – 4,000 W Heating Input Range600 – 3,750 W Electrical Power Supply208/230V, 1Ph, 60Hz Voltage Range187 – 253V Min. Circuit Amps37 A Max. Fuse40 A Cooling Current5.2 – 17.8 A Heating Current5.2 – 16.6 A Outdoor Unit Dimensions (W×D×H)38.58 × 16.34 × 38.39 in. Weight211.86 lbs. Air Flow (Max)3,037.2 CFM Noise Level65 dB RefrigerantR454B Refrigerant Charge134.04 oz. Pre-Charge Length100 ft. Control & Smart Features Smart HomeAmazon Alexa Wi-Fi ControlYes — App Enabled Leak DetectionBuilt-In DiagnosticsSmart Monitoring Timer Control24-Hour Sleep ModeYes DehumidifierYes Product Information BrandSenville ModelSENA-36HF/Q Number of Zones4 CompressorRotary Inverter Compressor Warranty10 Years Parts Warranty5 Years ENERGY STARCertified Professional Installation Process
6-step professional installation for your quad zone system
1 Zone Planning Select ideal locations for all four indoor units 2 Mount Brackets Install four wall mounting plates 3 Drill Holes 3" holes per zone for line sets 4 Connect Lines Connect & vacuum all refrigerant lines 5 Electrical 208/230V, 40A dedicated circuit 6 Test & Configure Set up all zones, connect Alexa & enjoy Complete System Package
Everything you need for a professional quad zone installation

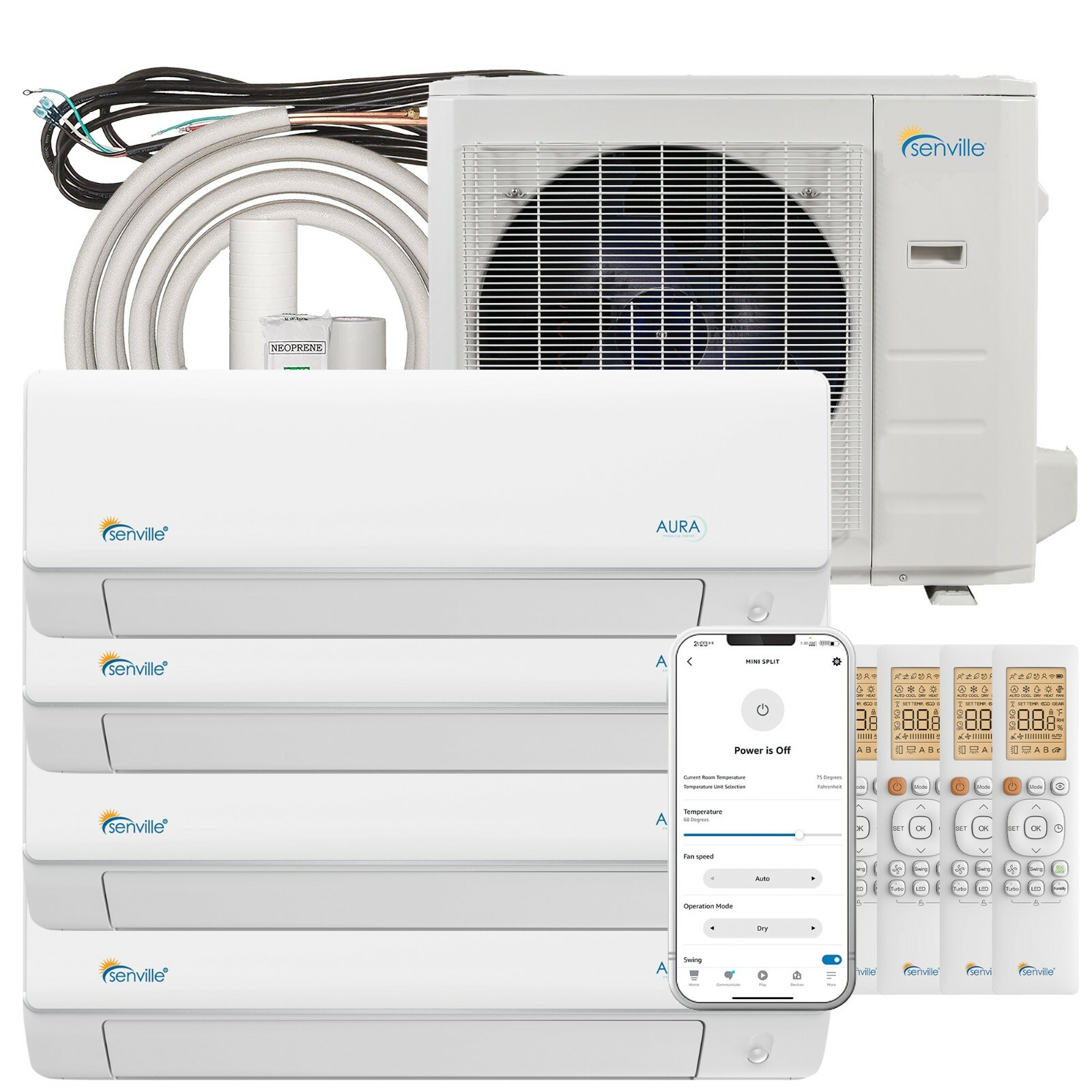

Indoor Units (4) 9000BTU Outdoor Unit 36,000 BTU Cold Climate Condenser 16 ft. Line Sets (×4) Insulated kits Remotes (×4) Wireless remote per indoor unit Alexa USB Kit Smart home voice control module Wiring Harnesses Indoor-to-outdoor connection cables Industry-Leading Warranty
Your SENA-36HF/Q investment is protected by Senville's comprehensive warranty program with dedicated North American support. Professional installation required for full warranty coverage.
5 YEARS PARTS 10 YEARS COMPRESSOR
Protecting your comfort investment — coast to coast
