36000 BTU Quad Split 4-Zone 22.5 SEER2 Ductless Wi-Fi Mini Split Heat Pump 3 Ton For Sale

Summary

Pioneer Quantum Ultra Multi-Split Heat Pump System – Complete 4 Zone Set

This Pioneer brand multi-zone heat pump system includes one outdoor condenser, matching wall-mounted indoor units, piping and accessory kits, and wireless remote controllers. Pioneer Quantum Ultra multi-split systems are available in configurations for 2, 3, 4, and 5 zones to suit a variety of residential and light commercial applications.

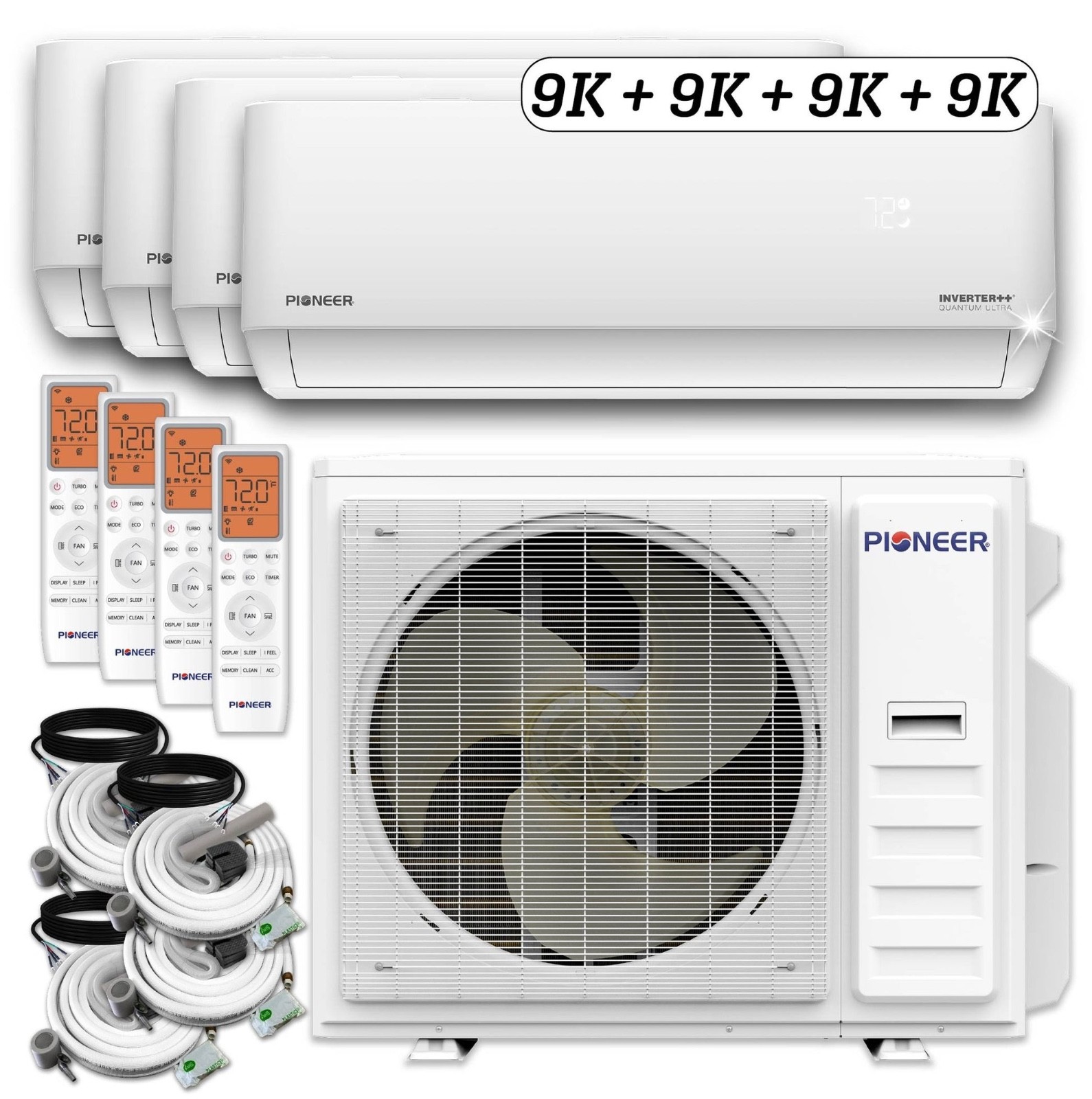

What’s Included

• Outdoor condenser unit

• (4) 9,000 BTU wall-mounted indoor units

• (4) Standard 10 ft copper line set installation kits

• (4) Wireless remote controllers

Features

• Ultra-high efficiency Inverter++ ductless multi-split quad (4) zone heat pump system

• (4) indoor units – 9,000 BTU/H nominal cooling capacity each

• Outdoor cooling capacity: 35,000 BTU/H nominal (5,500 – 41,000 BTU/H range)

• 22.5 SEER2 / 12.0 EER2 cooling efficiency

• Heating capacity: 36,000 BTU/H nominal (5,500 – 41,000 BTU/H range)

• 9.5 HSPF2 / 3.5 COP2 heating efficiency

• 208–230V, 60Hz, single-phase power (standard residential L1-L2-G)

• ENERGY STAR® certified and Wi-Fi enabled

• Complete system includes indoor fan coils, outdoor condenser, insulated flared line sets, wireless remotes, and installation accessories

• Dedicated technical support hotline for installation, operation, troubleshooting, warranty, and parts assistance

• Ultra-low ambient heating performance down to -13°F outdoor temperature

• Pre-charged with eco-friendly R454-B refrigerant supporting total combined line set lengths up to 100 ft

• Certified by ETL, AHRI, and DOE for safety, performance, and efficiency

• Advanced pulse width modulation DC inverter compressor and variable-speed DC inverter fan motors for high performance and reduced energy consumption

Pioneer systems are a trusted choice for HVAC professionals and homeowners, consistently earning high ratings for reliability, efficiency, and customer satisfaction.
