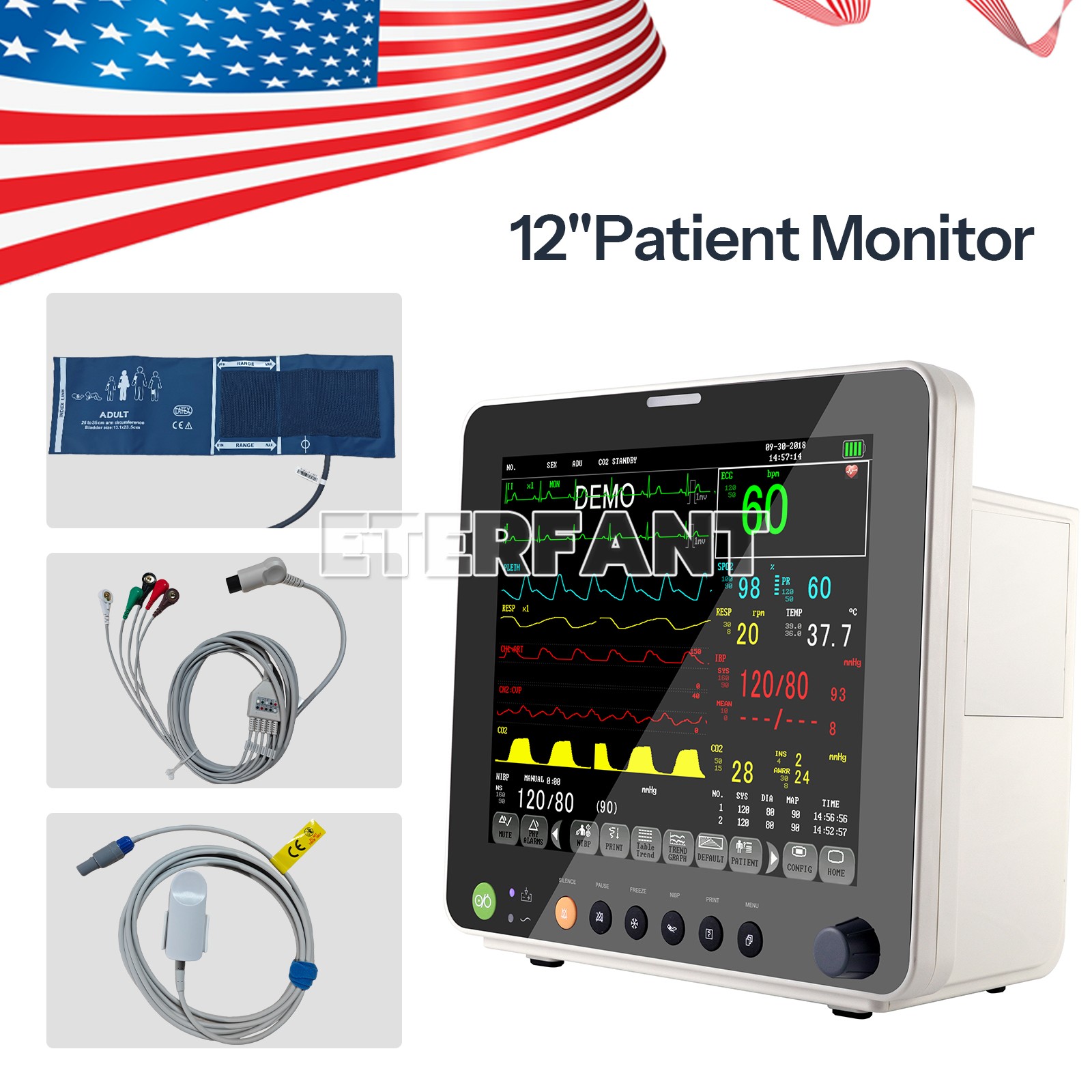

12" Patient Monitor ICU CCU Vital Sign For Hospital ECG NIBP RESP TEMP SPO2 PRFeatures：
1. Unique accessory management cabinet
2. 12.1-inch high resolution color TFT display
3. USB interfaces support easy software upgrade and data transfer
4. Three Working Modes: Monitoring, Surgery and Diagnosis
5. Simple and friendly operating display interface.
6. Multi-display modes suitable for different applications:
Standard Interface, Large font, ECG Standard Full Display, OXY, Trend Table, BP Trend.
7. Built-in high-capacity battery for up to 3 hours of continuous work
Standard Parameters:
ECG, RESP, TEMP, NIBP, SPO2, PR
Technique Specifications：
ECG
1. Lead Mode: 5 Leads (I, II, III, AVR, AVL, AVF, V)
2. Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV
3. Heart Rate: 15-300 BPM (Adult); 15-350 BPM (Neonatal)
① Resolution: 1 BPM
② Accuracy: ±1%
③ Sensitivity >200 uV(Peak to peak)
4. ST measurement range: -2.0 ~ +2.0 mV
① Accuracy: -0.8mV~+0.8mV: ±0.02mV or ±10%, which is greater
Other Range: unspecified
5. Sweep speed: 12.5 mm/s, 25mm/s, 50mm/s
6. Bandwidth:
7. Diagnostic: 0.05~130 Hz
8. Monitor: 0.5~40 Hz
9. Surgery: 1~20 Hz
SPO2
1. Measuring Range: 0 ~ 100 %
2. Resolution: 1%
3. Accuracy: 70% ~ 100% (±2 %)
4. Pulse Rate: 20-250 BPM
5. Resolution: 1 BPM
6. Accuracy: 3 BPM
NIBP
1. Method: Oscillometry
2. Measure mode: Manual, Auto, STAT
3. Unit: mmHg, kPa
4. Measure and alarm range:
5.1 Adult Mode
① SYS 40 ~ 280 mmHg
② DIA 10 ~ 225 mmHg
③ MEAN 20 ~ 240 mmHg
5.2 Pediatric Mode
① SYS 40 ~ 220 mmHg
② DIA 10 ~ 160 mmHg
③ MEAN 20 ~ 170 mmHg
5.3 Neonatal Mode
① SYS 40 ~ 135 mmHg
② DIA 10 ~ 100 mmHg
③ MEAN 20 ~ 110 mmHg
6. Resolution: 1mmHg
7. Accuracy: 5mmHg
RESP
1. Method: Impedance between RA-LL or RALA
2. Measurement Range:
① Adult: 10 ~ 120 BrPM
② Neonatal / Pediatric: 7 ~ 150 BrPM
3. Resolution: 1 BrPM
4. Accuracy: 2 BrPM
TEMP
1. Measure and Alarm Range: 0 ~ 50℃
2. Resolution: 0.1℃
3. Accuracy: 0.1℃
Standard Configurations:
Main Unit *1
5-lead ECG Cable *1
Disposable ECG Electrode *5
Adult Spo2 Probe *1
Adult NIBP Cuff *1
NIBP Extension Tube *1
Temperature Probe *1
Power Cable *1
User Manual *1
Fuse *3FDAStatement:
