USED ITEM APPEARS IN GREAT CONDITION (SEE PHOTOS). SEE PHOTOS FOR ANY DETAILS NOT LISTED HERE. ITEM SHIPS FREE WHICH SAVES YOU ALOT WITH TODAYS SHIPPING COSTS!

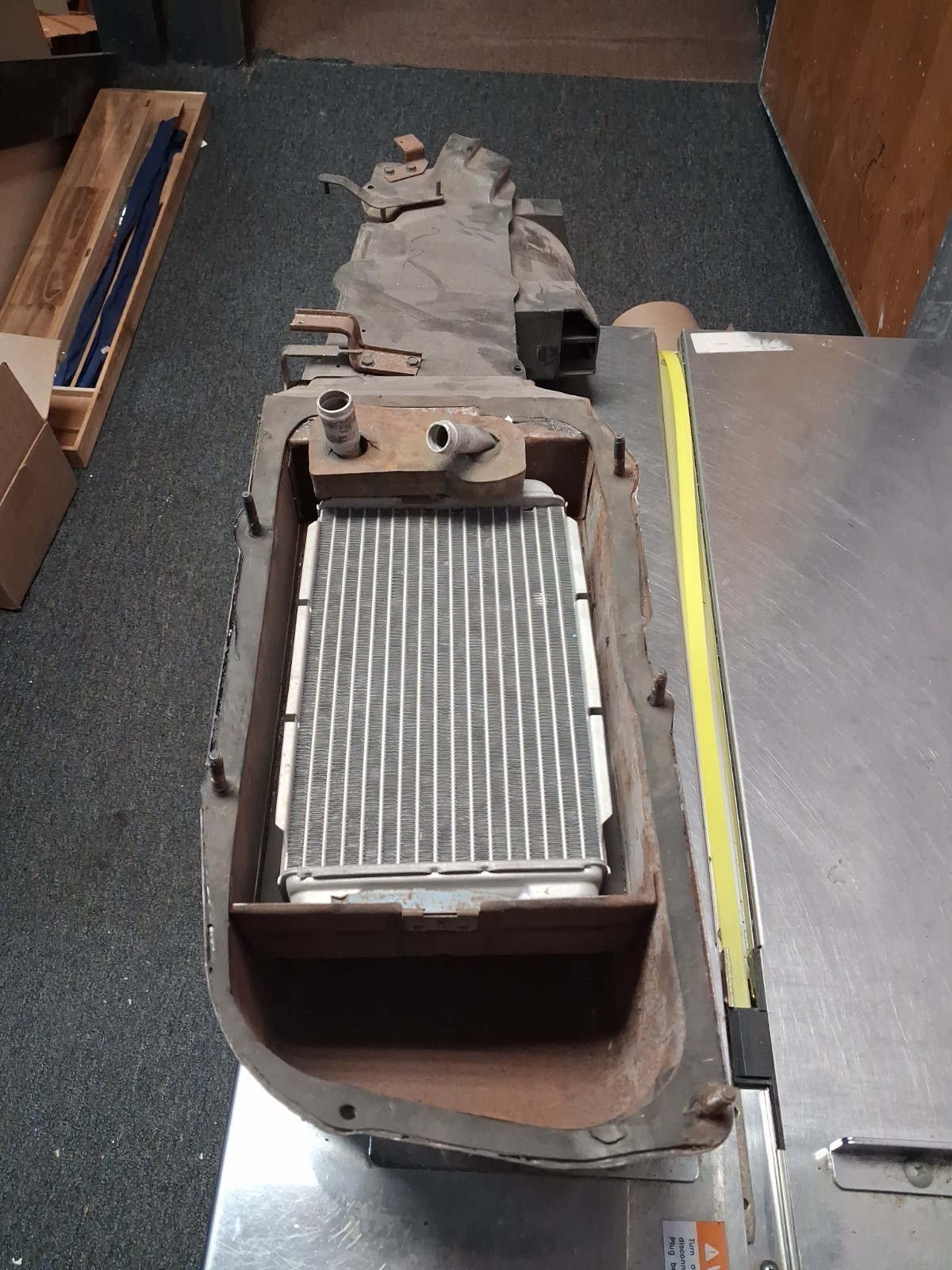

factory under-dash heater core housing box for classic 1968–1972 General Motors (GM) A-body vehicles equipped without factory air conditioning (Non-A/C).
Below are the breakdown specifications and design details for this original component:
⚙️ Physical Specifications
- Housing Material: The main structure consists of molded, heavy-duty black fiberglass/molded composite plastic body sections joined with metal assembly clips and perimeter hex-screws.
- Core Unit: Features a centrally mounted aluminum or copper/brass radiator-style heater core matrix with densely packed heat-transfer cooling fins.
- Firewall Connections: Standard dual coolant tubes (inlet and outlet supply lines) mounted to a sealed rust-preventative metal reinforcement plate that matches the specific firewall pattern of non-A/C passenger cars.
🗺️ Airflow & Function Details
- Multi-Tier Ducting: The elongated upper section acts as a distribution manifold, routing heated air upward directly into the firewall/dash junction.
- Control Door Flaps: Internal metal vacuum or cable-actuated blend doors direct air pressure variations dynamically between the floor and windshield defrost circuits.
- Integration Point: The lower discharge area mounts directly onto the 9790487 lower deflector floor vent to evenly disperse warm air beneath the dashboard on models lacking a full center console.
🛠️ Restoration & Identification Benchmarks
1968–1972 General Motors (GM) A-body vehicles
- OE Part Cross-Reference: Original factory units typically correlate to GM master housing assembly numbers such as 3017881.
- Physical Differences (Non-A/C vs. Factory A/C): Non-A/C under-dash boxes are significantly thinner and simpler. True factory A/C configurations include heavy, bulky under-dash duct frameworks, integrated air conditioning expansion/evaporator cores, and dedicated blend compartments that vastly differ in size.
Item location shelf P
