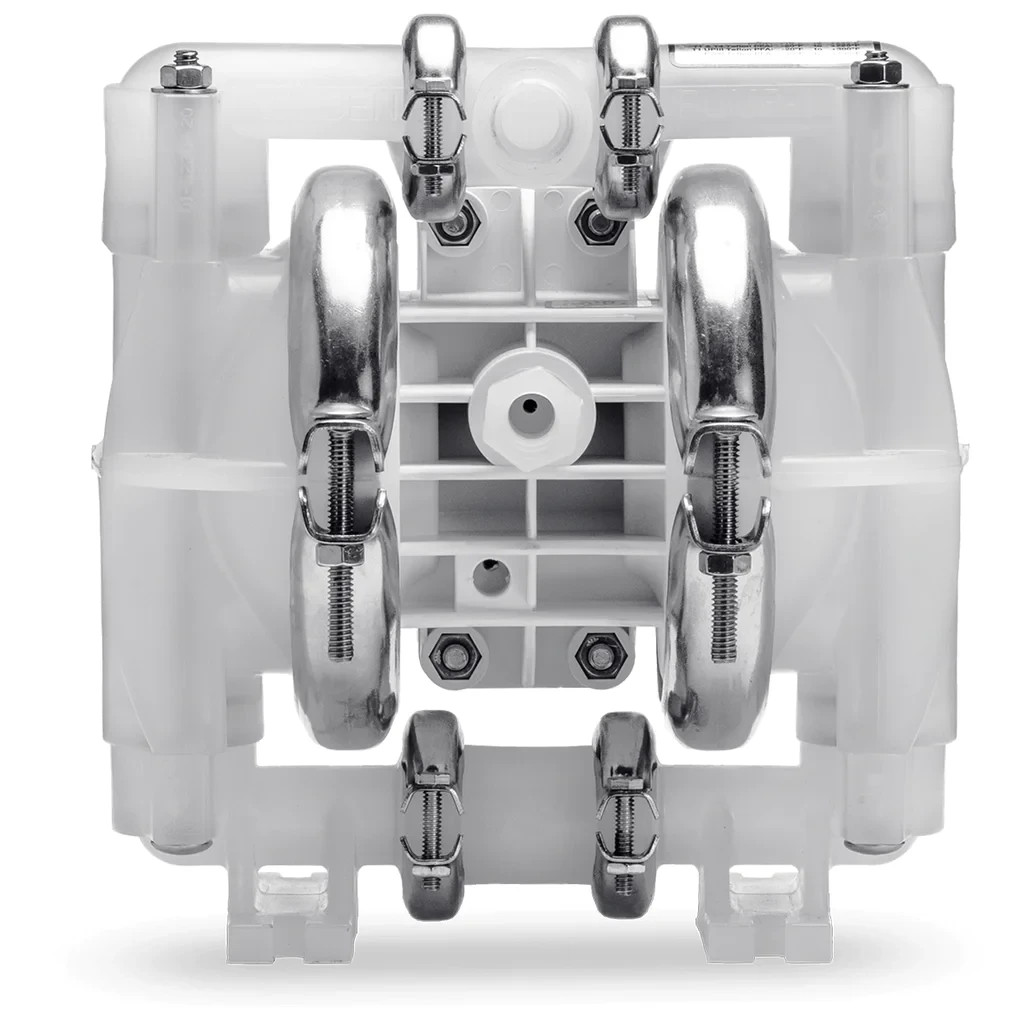

Wilden AODD Pump, Polypropylene, 1/2" Pro-Flo®, Clamped, Threaded, w/ PTFE For Sale

Wilden AODD Pump, 0.5" Pro-Flo, Clamped Polypropylene, NPT w/PTFE - P1/PPPPP/TNU/TF/KTVItem: 01-2654Description: P1/PPPPP/TNU/TF/KTV
Key Specifications

• Discharge Orientation:CENTER SWIVEL
• Inlet Orientation:CENTER SWIVEL
• Discharge Size (in.):0.5
• Default Max Diameter Solids (in.):0.06
• Max Flow Rate (gpm):14.1
• Inlet Size (in.):0.5
• Max Diameter Solids (in.):0.06

WILDEN Pump Description

P1/PPPPP/TNU/TF/KTV

Item Number Pump

01-2654

Port Size

1/2"

Air Kit

01-9985-20

Wet Kit

01-9805-55

Air Distribution System

Pro-Flo®

Pump Construction

Ptfe with Neoprene Back-Up

Valve/ Balls

Teflon

Valve Seats

Pvdf with Ptfe Encapsulated Viton

Outer Piston

Polypropylene

Air Chamber

Polypropylene

Center Block

Polypropylene

Air Valve

Polypropylene

Capacity GPM

14

Capacity Liters/min

53

Pump Weight Lbs

9,0

Pump Weight Kilo

4

Attributes for item 01-2654Model (in.):0.5Technical Construction:CLAMPEDWetted Path Material:POLYPROPYLENEDiaphragm Material:PTFEDiaphragm Design:TRADITIONALDiaphragm Stroke:Reduced-StrokeConnection Standard:NPTInlet Size (in.):0.5Inlet Orientation:CENTER SWIVELDischarge Size (in.):0.5Discharge Orientation:CENTER SWIVELOuter Piston Materials:POLYPROPYLENEAir Side Material:POLYPROPYLENEValve Material:PTFEValve Type:VALVE BALLValve Seat MATERIAL:PVDFO Rings Gasket Material:PTFE-ENCAPSULATED FKMHardware Material:STAINLESS STEELMuffler Material:PlasticSelf Priming:YESPower Source:COMPRESSED AIRAir Inlet Connection:1/4" FNPTMaximum Allowable Operating Pressure (psig):125.0Max Air Pressure (psig):125.0Max Diameter Solids (in.):0.06Max Flow Rate (gpm):14.1Flow Rate 40 Psi (gpm):12.8Flow Rate 50 Psi (gpm):12.2Flow Rate 60 Psi (gpm):11.5Flow Rate 70 Psi (gpm):10.4Flow Rate 80 Psi (gpm):8.9Flow Rate 90 Psi (gpm):6.5Flow Rate 100 Psi (gpm):4.4Flow Rate 120 Psi (gpm):0.0Max Suction Lift Dry (ft.):17.0Max Operating Temperature (°F):175.0Min Operating Temperature (°F):40.0Max Air Consumption (psi):13.0Atex Weight (lbs):9Shipping Dimensions:10.75" W X 10" L X 11" HCountry Of Origin:USA
