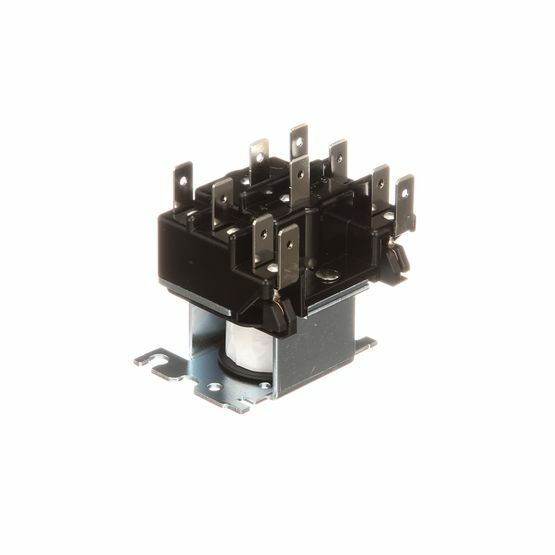

White Rodgers 90-340 Switching Fan Relay, DPDT, 24V
A Two Pole Double Throw Semi-Enclosed Relay 90-340 Fits Fan Control Centers 90-112, 90-113, 90-118E and 90-119
- Suited for use in vending machines, appliances, heating and air conditioning applications and general purpose switching
SPECIFICATIONS
Coil Voltage:24 Vac, 50/60 Hz
Terminals 1-2-3:PowerTerminals 4-5-6:Coil Data:17.5 D.C. Res., 334 mA, 9.5 Nominal VA, 22 Inrush VACoils, Operate:85% of nominal coil voltage; 110% maximum safe operateCoils, Duty Cycle:ContinuousApprovals:U.L. file number E12139C.S.A. file number LR13360
