NewSingle Roll 33 lbs. each.
Pallet of 60 available at the beginning of this listing.Make and offer or click this listing to buy it BAREAWS A5.18 ER70S-6 | ASME SFA 5.18 ER70S-6
This 70S-6 Bare is a non-copper coated carbon steel that contains high-levels of manganese and silicon for stronger deoxidizing power while having excellent welding results at optimal control at high welding speeds and amperage found in robotics or automation.
Applications:
Found in structural carbon steel pipeline/fitting, automotive, pressure low fume, low spatter, reduced copper fumes and less heat build up in excess long liners
Typical Weld Chemistry (%)
-
ER70S-6 BARE
AWS Spec
C
0.06
0.06 - 0.15
Mn
1.46
1.40-1.85
Si
0.86
0.80-1.15
Mo
0.15 max
0.01
Ni
0.15 max
0.01
Cr
0.15 max
0.03
Cu
0.50 max
0.02
P
0.025 max
0.011
S
0.035 max
0.005
V
0.03 max
0.002
Typical mechanical properties of weld metal
-
AWS Spec
ER70S-3
Tensile strength (psi)
70,000 min
82,935
Yield strength (psi)
58,000
71,420
Elongation in 2\" (%)
22% min
28.1%
Charpy V-notch at 0 F (ft. lbs)
20 ft lbs min
116
Reduction of area
-
59%
Average Brinell Hardness
-
164

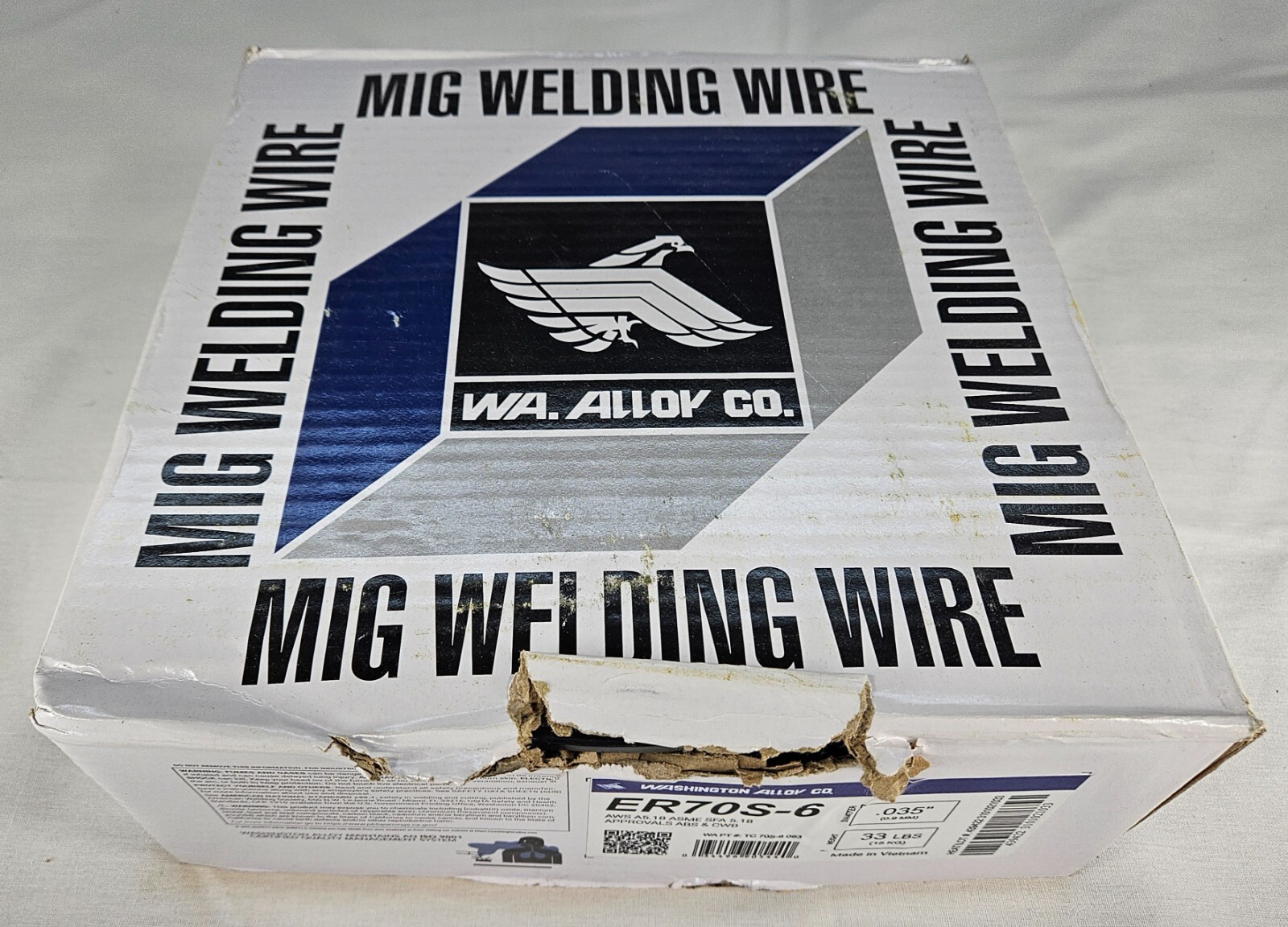

![Washington Alloy Mig Welding Wire Steel .035\](img-large/g/KRQAAOSwI4FmKWR0/s-l1600/Washington-Alloy-Mig-Welding-Wire-Steel-035-x-33-l.jpg "Washington Alloy Mig Welding Wire Steel .035\")
