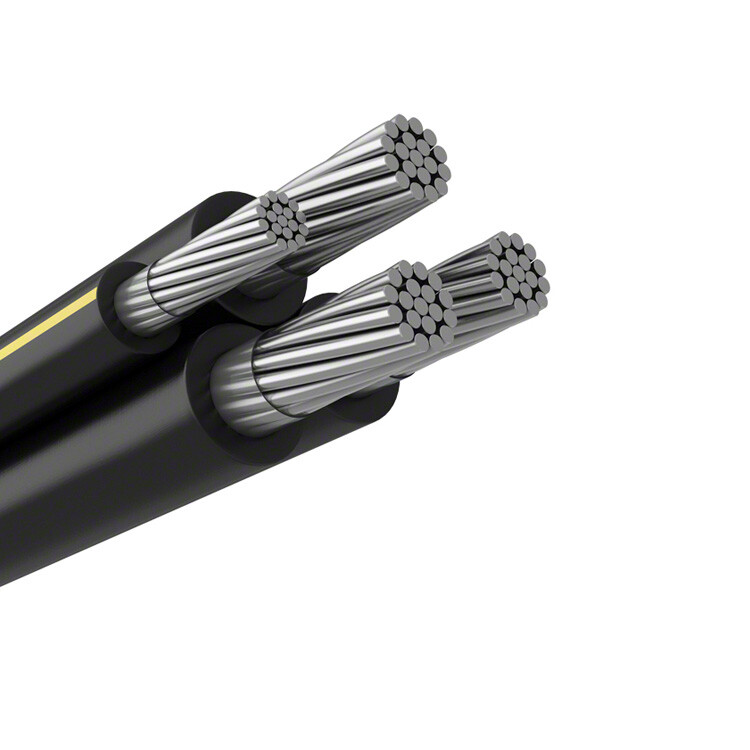

Wake Forest 4/0-4/0-4/0-2/0 Aluminum URD Direct Burial Cable (225 Amp) 600V Click Thumbnails to EnlargeAPPLICATION
• 4/0 AWG 225 Amp Aluminum URD Underground cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications. Maximum operating temperature is not to exceed 90°C in wet and dry locations. Voltage rating is 600 volts.
CONDUCTOR
• Compressed 1350-H19 Series Aluminum Conductor.
INSULATION
• Cross-linked polyethylene (XLPE) Insulation.
ASSEMBLY
• Three phase conductors and the neutral are cabled together, with surface printing for identification. The neutral conductor has a yellow stripe and sequential footage markings.
STANDARDS
• UL 854 Service-Entrance Cables, Sunlight Resistant
• RUS Accepted
• ASTM B-230 Aluminum 1350-H19 Wire for Electrical Purposes
• ASTM B-231 Concentric-Lay-Stranded Aluminum 1350Conductors
• ASTM B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes
• ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire Construction
• ICEA S-105-692 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables
• Federal Specification A-A-59544A
PRODUCT SPECIFICATIONSPhase Conductors Size AWG 4/0Number of Strands 19Neutral Conductor Size AWG 2/0Insulation Thickness(inches) 0.080Overall Diameter (inches) 1.590Ampacity (Direct Burial) 290 AmpsAmpacity (In Duct) 225 AmpsWeight (Lbs/1000ft) 1015Shipping
