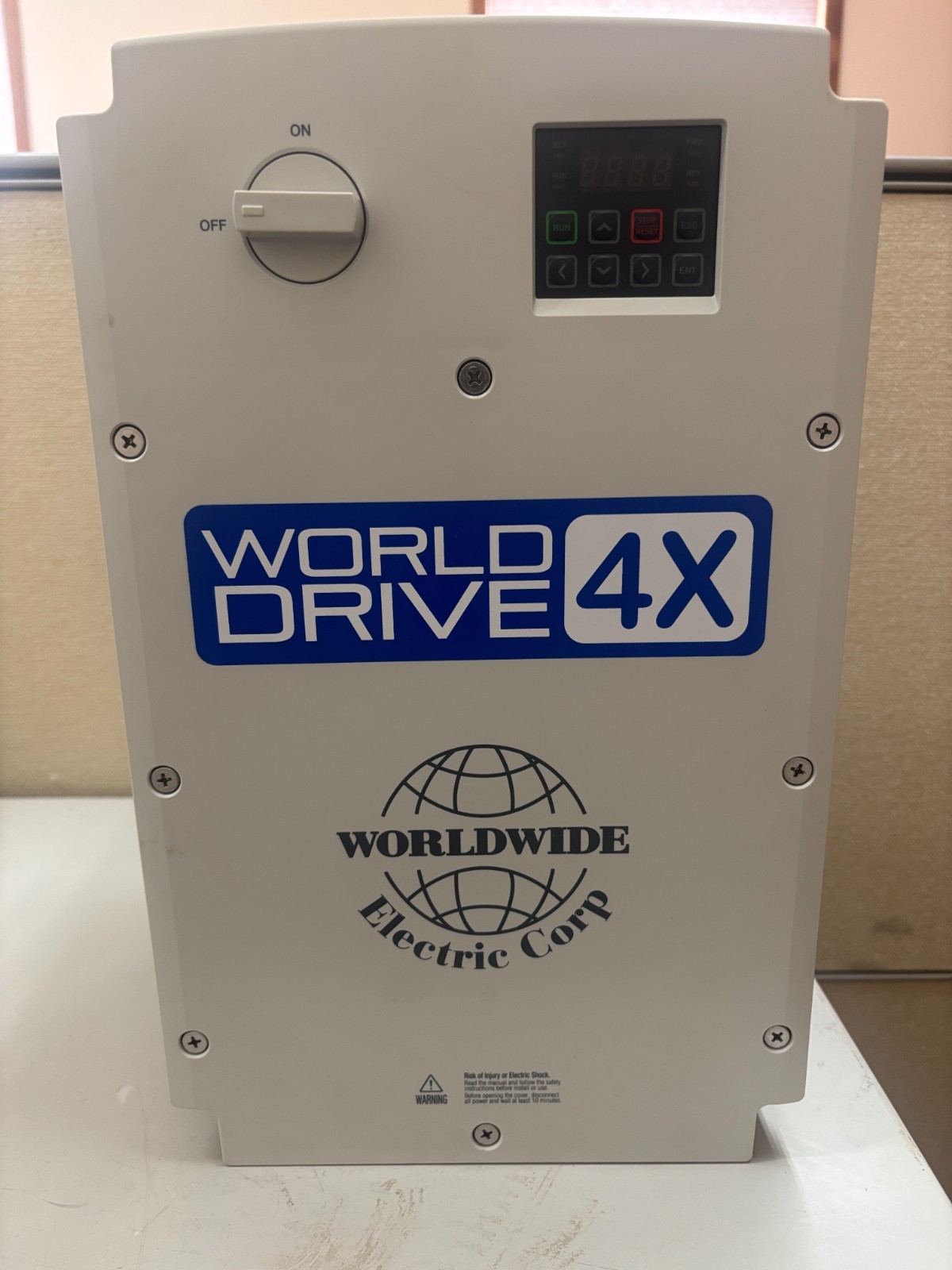

WORLDWIDE ELECTRIC WD4X110-4 WorldDrive 4X Variable Frequency Drive
Constant Torque Horsepower: 15Constant Torque Output Current: 24Dimensions: (inches) 15.7 x 10.2 x 9.7• V/f, Slip Compensation control, Sensorless Vector Control • 150% overload for 60 sec • 200-230V, Single-phase, 0.5-2HP • 200-230V, Three-phase, 1-30HP • 380-480V, Three-phase, 1-30HP • Input voltage range: 200-230V Single / Three Phase (-15%, +10%) • Input voltage range: 380-480V Three Phase (-15%, +10%) • Output Frequency: 0-400Hz Sensorless: 0-300Hz • Carrier Frequency: 1-15kHz • Protection degree: NEMA 4X / IP66 • Conformal Coated printed circuit boards • Built-in: Modbus-RTU • UL, cUL, CE CertifiedPhase: Three-PhaseCategory: Motor ControlsProduct Name WorldDrive 4X VFD, 460V, 15 HP, 24 Amps CT
Product Features & Specifications- Starting current: 150% overload for 60 sec, CT- Safe torque off- 200-230 V, Single-phase, 1/2 - 10 hp- 200-230 V, Three-phase, 1/2 - 20 hp- 380-480 V, Three-phase, 1/2 - 30 hp- Input Voltage range:- 200-230 V Single/three-phase (-15%, +10%)- 380-480 V Three-phase (-15%, +10%)- Output frequency: 0 - 400 Hz, Sensorless: 0 - 300 Hz- Carrier frequency: 1 - 15 kHz- Conformal coated printed circuit boards- Built-in Modbus RTU- Optional Ethernet IP communications- Intuitive, on-board keypad featuring a 7-segmentdisplay, 8 independent membrane keys, and 4status/pilot lights.Ultimate Control & SetupAll operational parameters can be configuredusing PC software or the intuitive, built-in keypad,and the current status is shown clearly on thedisplay and status lights. Scan the QR code with asmartphone to quickly view the product manualand key information.
Built for demanding, wash-down andoutdoor environments— IP66-rated,NEMA 4X Polycarbonate Enclosure Powerful & Versatile— Volts to frequency(V/f), slip compensation, and sensorlessvector control technologyɠ Easy Commissioning and Operation—Integrated keypad and display Secured Operation— lockabledisconnect for lock out tag outprocedures. 0.5 -30 hp
