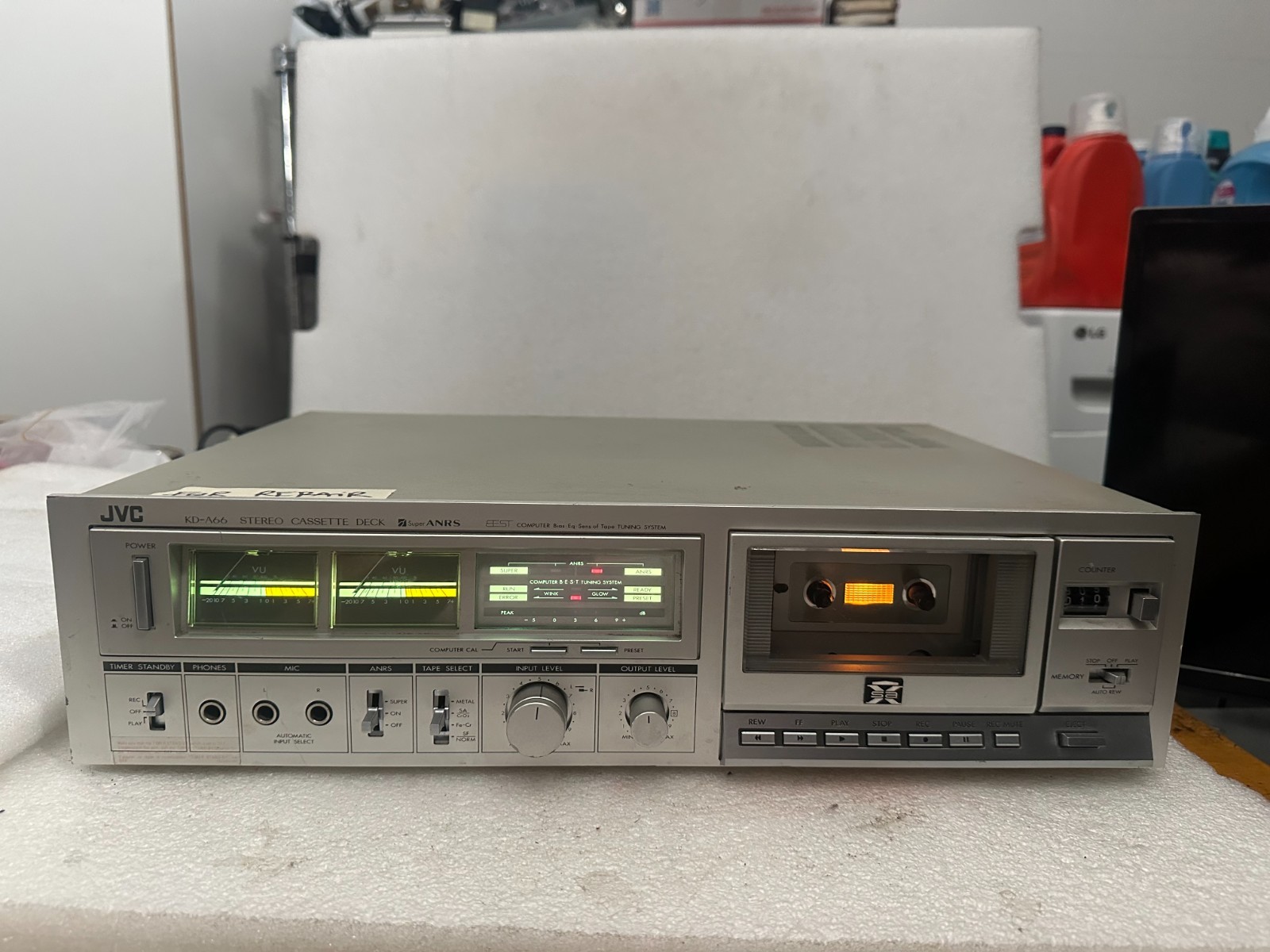

Vintage JVC KD-A66 Stereo Cassette Deck VU Meters.
Power on but can’t play tape.
SOLD FOR REPAIR.
Description
The JVC KD-A66 units have the following features:
Built in computer Best Tuning System for automatic adjustment of Bias, Equalisation and Sensitivity of tape, Metal tape compatibility having 4 tape select positions, full logic control operation with 2 motor ID (independent drive) mechanism, X-cut Sen-Alloy record/play head for an improved frequency response over Permalloy yet as durable as Ferrite, LED indication for cassette operation buttons, and ANRS for decreasing hiss-noise and improving linearity at high frequency.
Specifications
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: 1 x reel, 1 x capstan
Tape Type: type I, FeCr, CrO2, Metal
Noise Reduction: ANRS
Frequency Response: 15Hz to 18kHz (Metal tape)
Signal to Noise Ratio: 65dB (ANRS)
Wow and Flutter: 0.04%
Total Harmonic Distortion: 1.0%
Input: 80mV (line), 0.2mV (mic)
Output: 0.5V (line)
Dimensions: 450 x 331 x 118mm
Weight: 7.9kg
