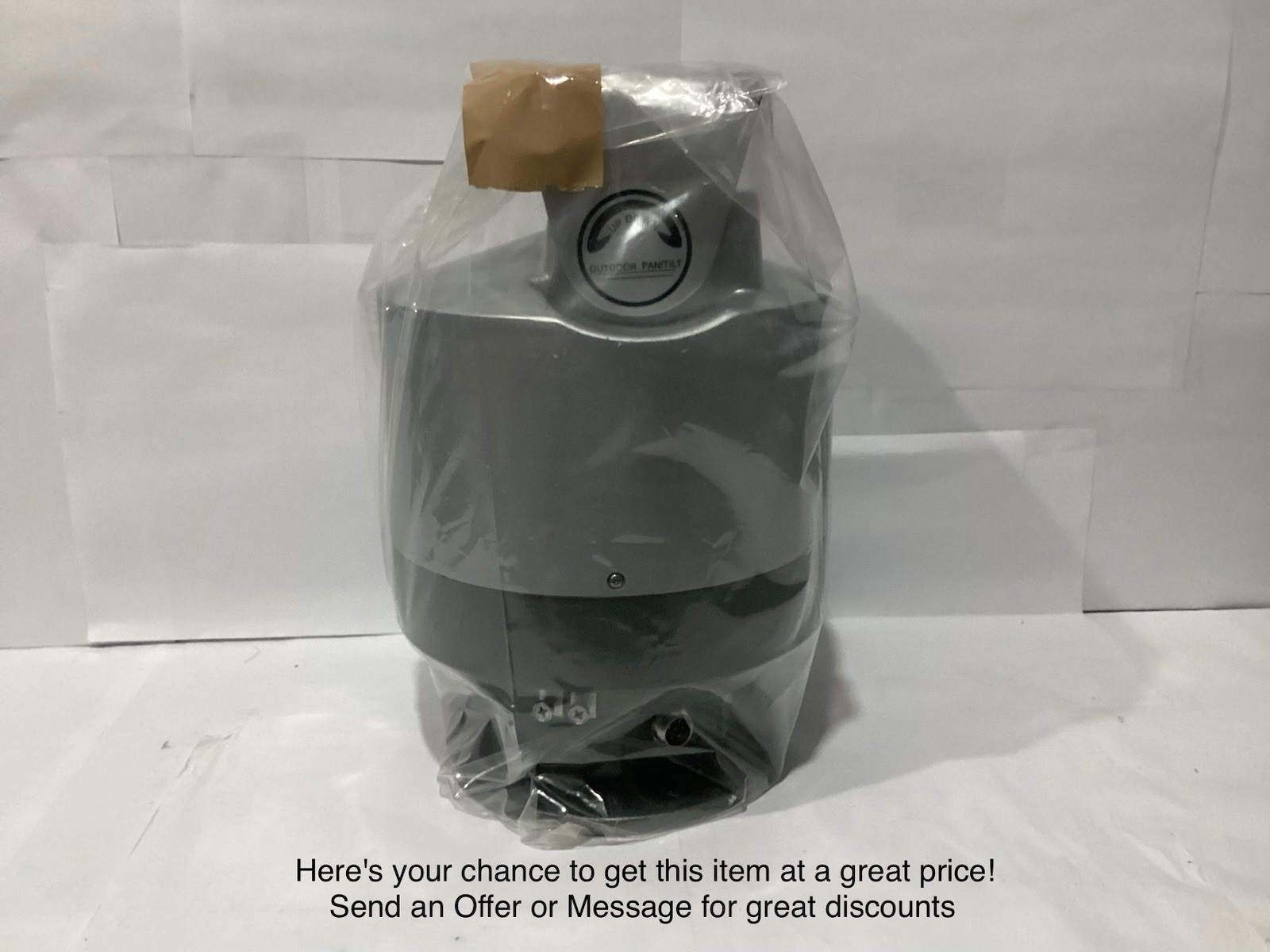

Vintage CCTV Outdoor Pan/Tilt Unit GL-301 Heavy Duty Motor Scanner 24VAC NOS For Sale

Up for sale is a vintage, heavy-duty industrial Outdoor Pan/Tilt Unit (Model GL-301 / GL-301C). This is a New Old Stock (NOS) item, completely unused and still sealed inside its original factory plastic wrapping.

Perfect for vintage CCTV collectors, security system restorers, or electronics hobbyists looking for a rugged, weatherproof motorized base to repurpose for ham radio antennas, laser systems, or custom robotics projects.

Features & Specs:

- Model: GL-301 / GL-301C

- Power Requirement: 24VAC (50Hz/60Hz)

- Build: Heavy-duty weatherproof cast aluminum casing

- Wiring: 6-pin analog connector (Clear color-coded pinout map sticker included on base)

- Weight: Gross weight is approx. 9.14 kg (20 lbs)

What's Included:

- Motorized Pan/Tilt base unit (factory sealed)

- Original Instruction Manual

- Sealed hardware pack with bolts, washers, and matching multi-pin cable connector

- Original cardboard storage box

Please note: This runs on an industrial security standard 24V AC power sup

ADVANCED TECHNICAL SPECIFICATIONS (FOR ENGINEERS / ROBOTICS / HAM RADIO)

For industrial buyers, automated system builders, antenna rotator projects, and robotics developers, here are the precise mechanical and electrical data specifications for the Tu Shing GL-301 series:

#### 1. MOTOR & ELECTRICAL

* **Operating Voltage:** 24V AC (±10%) 50/60 Hz

* **Power Consumption:** Panning: ~5W | Tilting: ~6W

* **Drive Type:** Dual-axis AC synchronous reduction motor drive

* **Internal Limit Switches:** Factory-installed, adjustable mechanical microswitches for pan/tilt travel control

* **Wiring Interface:** 6-Pin analog terminal connection block (Pinout diagram affixed to chassis base)

#### 2. MECHANICAL PERFORMANCES

* **Max Dynamic Load Capacity:** 38 kg (83.7 lbs)

* **Pan Movement Range:** 0° to 355° horizontal rotation

* **Tilt Movement Range:** Up 10° to Down 70° vertical articulation (-70° to +10°)

* **Panning Speed:** Approx. 5.0° to 6.0° per second

* **Tilting Speed:** Approx. 3.0° to 4.0° per second

#### 3. INDUSTRIAL DURABILITY DATA

* **Environmental Sealing:** IP65 Certified Ingress Protection (100% Dust-Tight & Water-Jet Resistant)

* **Enclosure Material:** Marine-grade, heavy-duty die-cast aluminum alloy

* **Finish:** Anti-corrosive industrial powder coat (Two-tone Metallic Silver-Gray & Dark Forest Green)

* **Gear Train Integrity:** High-torque reduction gear assembly with automatic self-locking back-drive prevention (Wind-load resistant)

#### 4. PHYSICAL DIMENSIONS & SHIPPING

* **Unit Height:** 277 mm (10.9")

* **Unit Diameter:** 196 mm (7.7")

* **Net Weight (Unit Only):** Approx. 8.10 kg (17.8 lbs)

* **Gross Weight (In Box with Hardware):** 9.14 kg (20.15 lbs)
