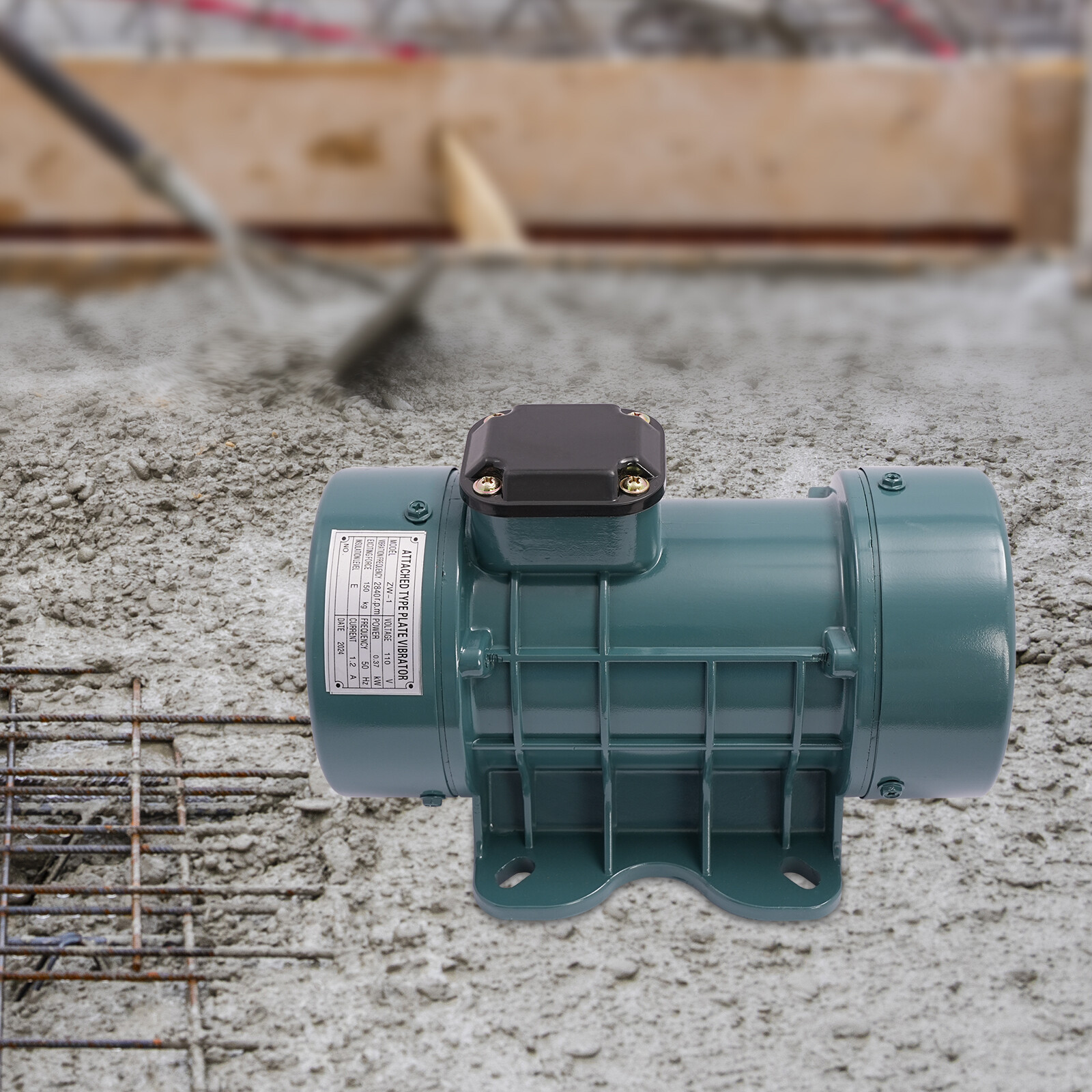

DescriptionOur vibration motor is a high-performance vibration drive unit designed for industrial applications. It combines leading-edge vibration technology with precision engineering to provide you with unrivaled vibration force and stability, ensuring that your equipment performs well in a variety of operating environments.
Key Features
Made to Last: The product is made of high-quality aluminum alloy and adopts forging technology, featuring high strength, wear resistance, and excellent insulating properties to ensure a long service life.
Good Performance: It consists of two rotor ends of single-phase and three-phase asynchronous motors, which are fitted with eccentric blocks corresponding to the performance of the motor to ensure its excellent performance.
Strong Power: The 370W power and speed up to 2840rpm give it a powerful vibratory force(330.69lbs) that makes it well suited for a wide range of industrial and commercial applications.
High Safety:The IP44 rating, copper core coil, 3.28ft four-core rubber power cord, and class E insulation provide safety for your use.
Ready to Use: Thanks to its simple construction and detailed English manual, all you need to do is wire it up and you\'re ready to use.
Thoughtful Design: The push-button switch provides great convenience for your operation and use.
Easy to Clean: The smooth surfaceand simple structure allow you to easily remove dust from the surface of the motor with a towel.
Good Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us.We will reply and solve the problem for you as soon as possible.
Details
Long Power Cable:The 3.28 ftpower cable reduces usage restrictions and further protects your safety.
High Precision Rotor:It is wear-resistantand not easy to rust. Bi-directional stabilization design allows it to work at high speed for a long time without fear of vibration.
Stable Base:The base with 4 holes allows you to secure it to keep it running stably.
Application
This product is suitable for mining, metallurgy, coal, electric power, construction, chemical industry, medical equipment, food machinery, and other industries.It can be used to the surface of concrete base or prefabricated components. It is also suitable to work as the source of vibration, andis widely used as a universal excitation source for vibrating machines such as hoppers, silos, distributors, agitators, dust collectors vibrating feeders, shakers and so on.
Specification
Model: ZW-1
Material: Aluminum Alloy
Color: Blue
Process: Forging
Style: Modern
Installation Required: Yes
Protection Grade: IP44
Plug Type: US Standard
Voltage: 110V
Frequency: 50Hz
Current: 1.2A
Power: 370W
Vibration Frequency: 2840 rpm
Exciting Force: 150kg/330.69lbs
Insulation Level: E
Power Cable Length: 1m/3.28ft
Product Size: 23x15x17cm/9.05x5.9x6.69in
Package Size: 23x15x17cm/9.05x5.9x6.69in
Gross Weight: 7kg/15.43lbs
Net Weight:6.4kg/14.11lbs
Package Included
1* Vibration Motor
1* English Manual
Notes
- Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
- The insulation condition of the motor should be kept good at all times. If the motor is transported over a long distance or left unused for a long period of time, the insulation between phases of the coil and the insulation to the ground should be measured, and the resistanceshould not be less than 0.5 megohm (at the same time, check whether the power supply meets this standard).
- When installing, the screw holes of the base plate should be correctly positioned to avoid tilting the bolts.
- The product should not be used on dry and hard ground for a long time, so as to avoid excessive vibration and damage to the machine parts. In the process of use, please strictly aoffere by the safety of electricity and operating procedures. The motor should be equipped with a leakage switch(not included), please check the ground contact resistanceon time.
- After the vibrator has been used, the external surface of the motor must be carefully cleaned to ensure that the motor operates with good heat dissipation.
- Please check the sealing and insulation of the motor frequently. If you find that the motor is damp, it must be dried. Please check the damage to other machine parts regularly and repair them promptly if found.In case of motor and electrical failure, it must be repaired by a full-time electrician.
