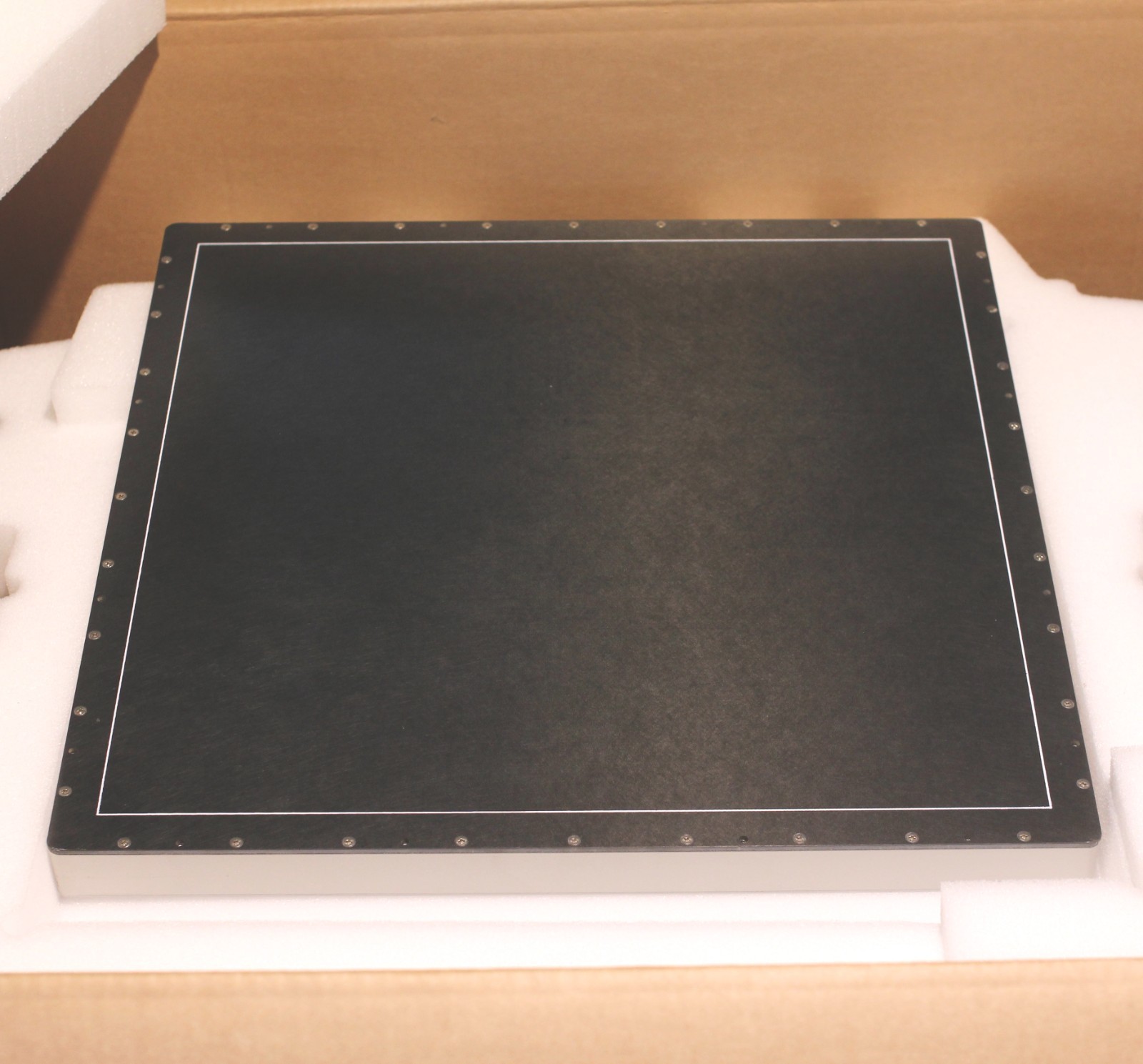

Varian PaxScan 4343CB Digital Flat Panel Detector (Detector Only)
Model: PaxScan 4343CB
Type: Digital Image Receptor (Amorphous Silicon Flat Panel)
Part #: 76961
Serial #: W4-337S06-0702
Revision: AC
Manufacture Date: October 2014
Scintillator:CsI:Tl (Cesium Iodide)
Key Specifications (per Varex Imaging datasheet)
- Active Area: 42.7 x 42.7 cm (16.8 x 16.8 in)
- Pixel Matrix: 3072 x 3072
- Pixel Pitch: 139 µm
- Limiting Resolution: 3.6 lp/mm (1x1 binning)
- A/D Conversion: 16-bit (>17-bit effective in dual/dynamic gain modes)
- Dynamic Range: 94 dB (standard modes) / 108 dB (DGS modes)
- Energy Range: 40–150 kVp
- Data Output: LVDS, CameraLink
- Housing: Aluminum, 13 kg
- Imaging Modes:(3072x3072 @ 4 fps), (1024x1024 @ 25–30 fps), (768x768 @ 40 fps)
Designed for general imaging applications, this detector pairs Varex's proprietary readout electronics with a high-sensitivity CsI scintillator for excellent low-dose performance.
What's Included
- PaxScan 4343CB Detector Panel ONLY
What's NOT Included
- Cables
- CP2LC (command processor)
- Frame Grabber
Condition
Good condition, with a few scratches on the paint and some slight scratches on the carbon entrance window. Last used 2 years ago, at which time it successfully acquired images.
Important — Please Read Before Buying
This detector will NOT function on its own. It requires a Varian or Varex Imaging CP2LC command processor, a matching frame grabber, and the appropriate cables to operate — none of which are included in this listing.
This unit is sold untested, as-is. No guarantee of function is given, and given the time since last use, buyers should be prepared to test/troubleshoot upon receipt.
Ideal For
Buyers who already own a compatible CP2LC command processor, frame grabber, and cabling and are looking to add or replace a panel, system integrators, or those parting out/building an imaging system.
Please review all photos carefully and feel free to message with any questions before purchasing.
