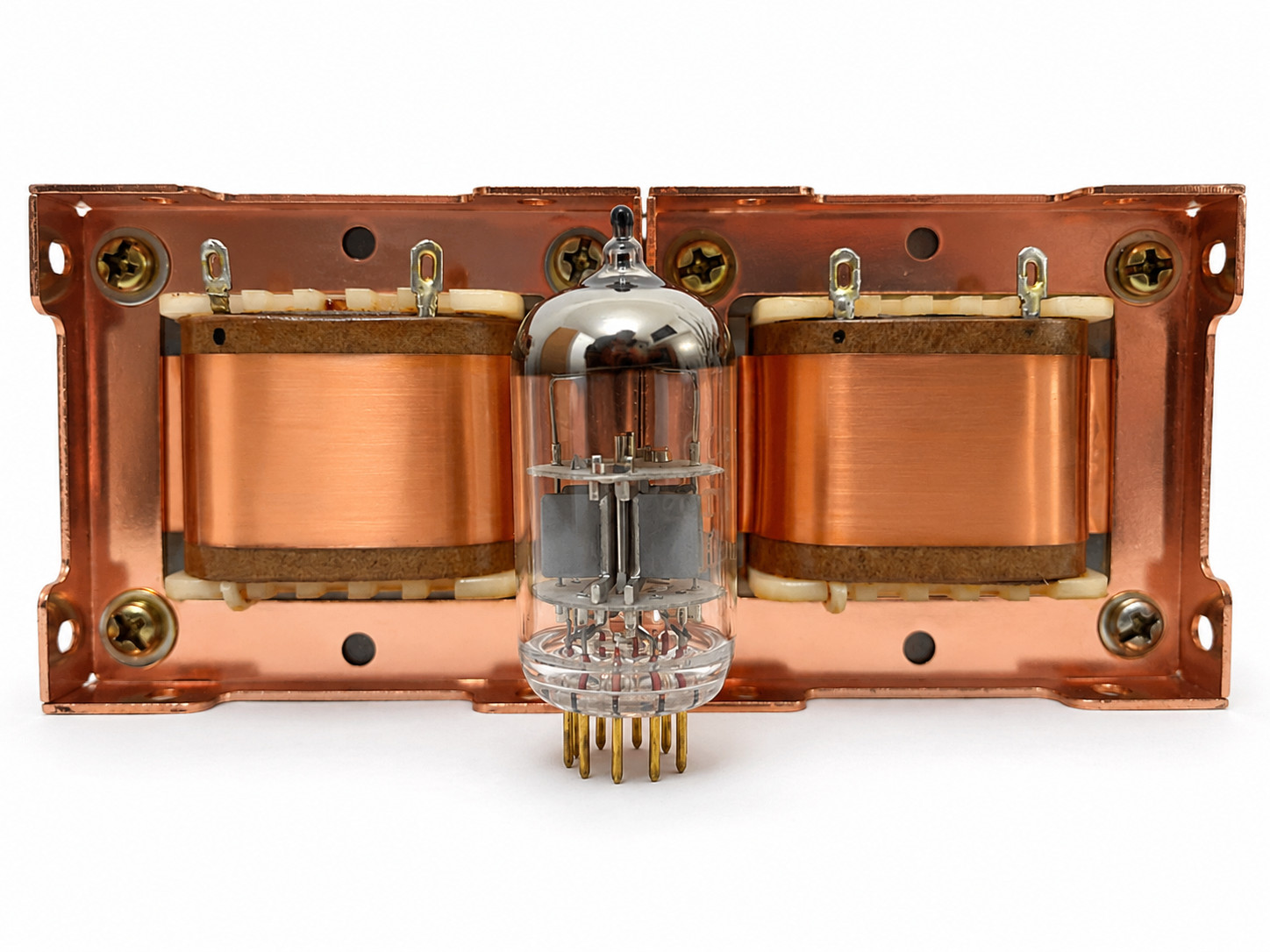

VALAB 200H Anode / Plate Choke High-Inductance Upgrade for Tube Amplifiers Optimized for Low–Medium Rp Tubes / Best Performance with Rp 2–7kΩ VALAB Best-Selling Anode Choke A balanced high-inductance plate choke designed for real-world tube amplifier driver stages.
The VALAB 200H Anode / Plate Choke is one of our most popular and best-selling choke designs.
It is built for builders who want to replace traditional plate resistors with a high-inductance choke load,improving headroom, dynamics, openness, and musical flow in suitable tube circuits.
Important: Higher Inductance Is Not Always Better
In anode choke applications, choosing the correct choke is not simply about selecting the highest inductance value.
The tube’s plate resistance, operating current, circuit voltage, core design, winding structure, and DC resistance must work together as a complete system.
This 200H choke performs best with tubes whose Rp is approximately 2–7kΩ. For very low-Rp tubes, a different choke may be more suitable. For very high-Rp tubes, more inductance may be required.
This is why VALAB offers different anode choke models instead of claiming one choke works perfectly for every tube.
Designed for Rp 2–7kΩ Tubes
This choke is optimized for low-to-medium plate resistance tubes, especially in high-performance signal stages and driver stages.
Recommended tube examples include:
5687 6H30 6DJ8 / 6922 6N1P 12AU7 6J5 / 6SN7 5842 / WE437 may also be used, but lower-Rp tubes may benefit from VALAB 60H choke depending on the circuitWhat Is an Anode Choke?
An anode choke, also called a plate choke, is a very high-inductance load used in tube amplifier plate circuits.It can replace a traditional plate load resistor in suitable circuits.
Compared with a resistor, an anode choke provides:
Extremely high AC impedance Lower energy loss Reduced heat generation Better use of available B+ voltage Improved voltage swing capability in suitable circuits
This allows the tube to operate more freely and efficiently.
Why Upgrade to a Choke Load?
Replacing a plate resistor with a properly matched anode choke can provide:
Higher headroom Lower distortion Better dynamics Improved resolution More open and natural presentation More stable high-voltage operation
This is why many high-end and boutique tube amplifier designs use choke loading instead of simple resistor loading.
Small component. Major upgrade.Specifications – VALAB AP200 Inductance: 200H @ 120Hz / 1100H @ 20HzWorking current: 30ma DC Resistance: 2330Ω Core: Z11 Silicon-Iron Lamination Wire: 5N Oxygen-Free Copper Turns: Approx. 14,000 turnsBuilt for Real Performance
This is not a generic choke.
It is designed with real-world tube amplifier experience and balanced for practical driver-stage applications.
High turn count for high inductance Carefully selected Z11 silicon-iron core 5N oxygen-free copper winding wire Designed for stable high-voltage tube circuits Balanced inductance and DCR for Rp 2–7kΩ tubes
The result is strong low-frequency performance, clean signal behavior, and a natural sonic presentation in suitable circuits.
Sonic Benefits
With this choke installed in a properly matched circuit, you can expect:
More open and layered soundstage Better micro-detail and texture Improved dynamics and drive Lower perceived noise floor Smoother, more natural and fatigue-free soundImportant Application Note This choke is designed for suitable low-to-medium Rp tube circuits. Best performance range: approximately Rp 2–7kΩ. It is not always correct to choose the highest inductance available. Please confirm your tube type, plate current, and operating point before use.
This product is intended as an anode / plate choke in suitable tube amplifier circuits.It is not a power supply choke, speaker crossover inductor, or universal transformer.
Why VALAB?
VALAB products are developed from real-world tube audio experience.
Designed for musicality, stability, and long-term use.
I only sell what I personally use and believe in.Price USD $100 per pair / 2 pcsShipping
Worldwide shipping available.
Carefully packed before shipment.
Custom Designs WelcomeCustom Designs Welcome
Looking for a specification that is not currently listed?
We are always interested in developing new products for the DIY audio community.
If you need a custom inductor, choke, transformer, or another special specification, please feel free to contact us.
Many of our current products actually began as custom requests from customers around the world.
Your ideas help us develop better products for everyone.
Even if your project is unique, we would be happy to discuss it with you.
Many of today\'s Valab products began as customer requests and were later refined into standard production models.
Plate Chokes
Anode Chokes
Grid Chokes
Filter Chokes
Different inductance Different current ratingCustom specifications
Please message me with your requirements.
