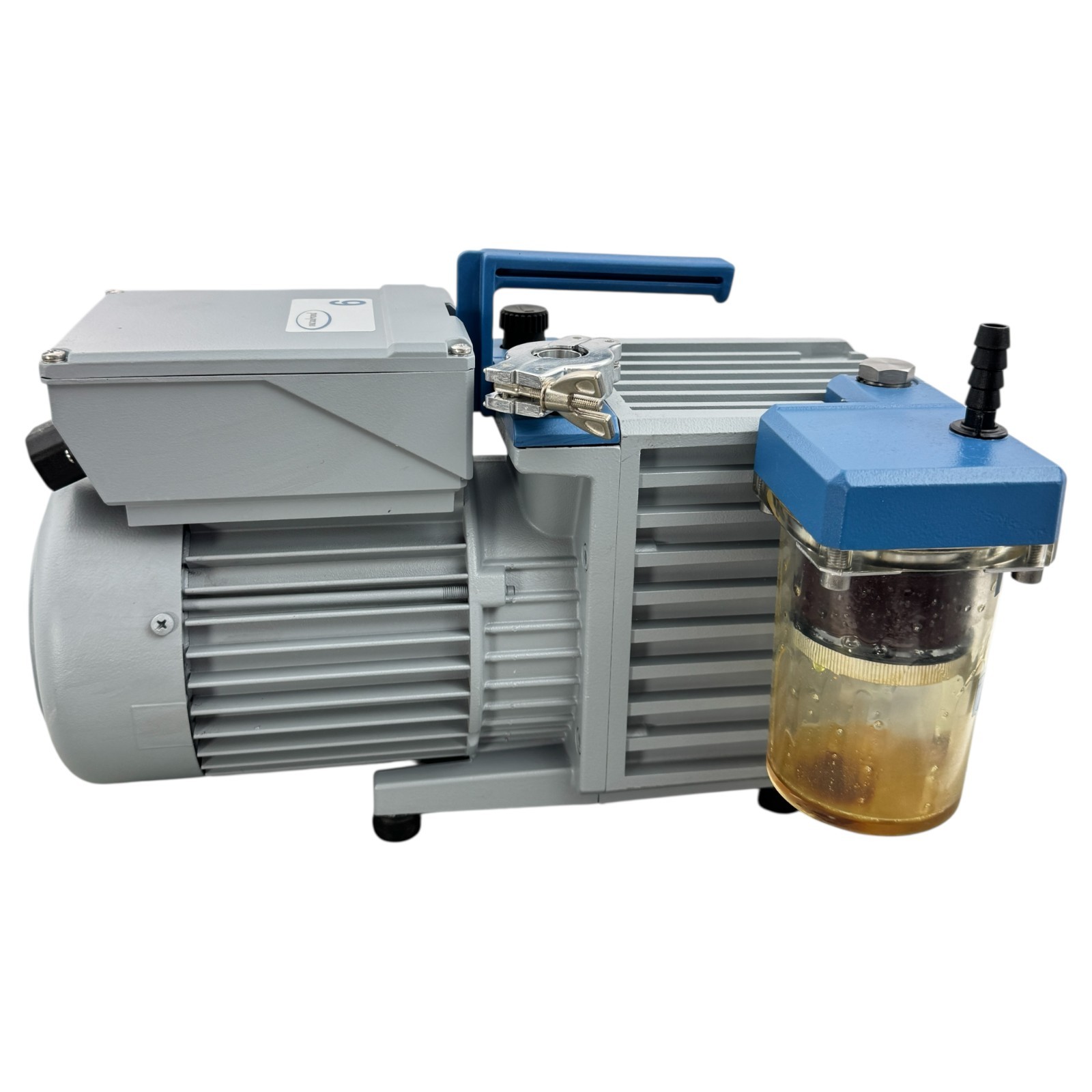

Vacuubrand RE 6W Rotary Vane Vacuum Pump YEAR 2017/11
Compact and lightweight rotary vane design ideal for lab and process applications
Handles medium to high gas flow rates with consistent performance
Vacuum-tight at switch-off without the need for an anti-suck back valve
Large oil volume reduces frequency of oil changes
Telescopic design allows for easy maintenance access
Operates quietly with a low 50 dBA sound level
Durable construction with KF DN 16 inlet and 3/8\" hose nozzle outlet
Recommended for degassing, lyophilization, fine vacuum distillation, and drying chambers
DETAILS Vacuubrand RE 6W Rotary Vane Vacuum Pump Specifications Maximum Pumping Speed (60Hz)4.0 CFM (6.8 m³/h) Maximum Pumping Speed (50Hz)3.4 CFM (5.7 m³/h) Ultimate Vacuum0.1 mbar (0.075 Torr) Water Vapor Tolerance40 mbar (30 Torr) Maximum Permissible Inlet Pressure1.1 bar (16 psi) Maximum Permissible Outlet Pressure1.1 bar (16 psi) Inlet ConnectionSmall flange KF DN 16 Outlet ConnectionHoze nozzle for tubing I.D 3/8\" (hoze nozzle DN 10 mm) Maximum Motor Speed1,800 RPM Rated Motor Power0.4 hp (0.3 kW) Sound Level50 dBA Maximum Oil Capacity930 ml Recommended OilVacuubrand B-oil Dimensions (L x W x H)14.6 x 5.6 x 8.1 in. (37 x 14.2 x 20.7 cm) Weight34.8 lb. (15.8 kg) Electrical Requirements 100-120V, 50/60Hz, 5.4A
127V, 60Hz, 4A
200-240V, 50/60Hz, 2.7A Return Policy
30 days returns
