🏷️ SEARCH-OPTIMIZED TITLE (80/80 Characters)

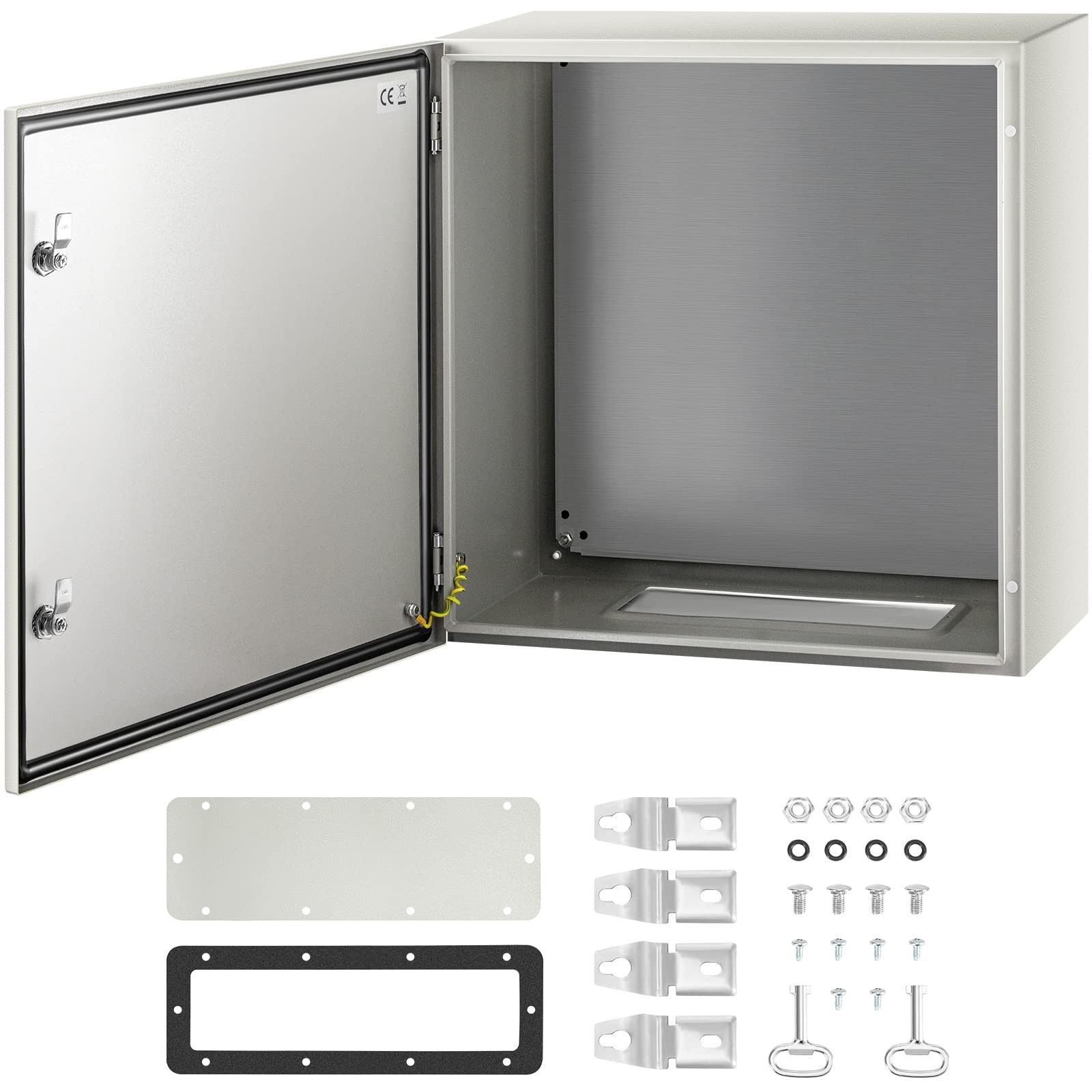

VEVOR NEMA 4X Steel Electrical Box 24 x 24 x 12 IP66 Outdoor Enclosure DQXJSTCFS
📋 PRODUCT DESCRIPTION
Protect sensitive electrical controls and components in harsh environments with the VEVOR 24 x 24 x 12-inch NEMA 4X Steel Electrical Enclosure (MPN: DQXJSTCFS60X60X30). Constructed from heavy-duty cold-rolled carbon steel with an epoxy-polyester powder coat, this rugged junction box provides NEMA 4X / IP66 rated protection against rain, snow, dust, and corrosive elements. Featuring a reinforced hinged door, a secure quarter-turn lock core, a top rain hood, and a removable galvanized mounting backplate, it offers ideal utility for industrial, outdoor, and commercial installations.
⚡ KEY FEATURES & HIGHLIGHTS
☆ Heavy-Duty Carbon Steel: Built from 1.5 mm cold-rolled steel with precision welding for extreme durability.
☆ NEMA 4X & IP66 Rated: Foam sealing gaskets and a top rain shield keep water, oil, and airborne dust out.
☆ Removable Mounting Plate: Includes a 2mm galvanized steel backplate for quick component layout and mounting.
☆ High-Security Locking: Reinforced hinges and a key-lock core keep internal electronics protected from unauthorized access.
☆ Pre-Drilled Grounding: Pre-installed grounding screws and smooth cable cutout entries simplify installation.
🛠️ TECHNICAL TypeNEMA 4X Outdoor Electrical Box / EnclosurePart / MPN NumberDQXJSTCFS60X60X30Exterior Dimensions24" H x 24" W x 12" D (60 x 60 x 30 cm)Protection RatingNEMA 4X / IP66MaterialCold-Rolled Carbon Steel (1.5mm)Backplate2.0mm Galvanized Steel Mounting PlateFinish / ColorEpoxy Polyester Powder Coat / Gray-White (RAL 7032)ConditionBrand New, Unused, Open Box
🔄 COMPATIBLE BRANDS & APPLICATIONS
Applications: Ideal for housing outdoor circuit breakers, solar power controllers, industrial automation equipment, security systems, pool controllers, and HVAC power distribution.
Installation Tip: Use appropriate NEMA-rated liquid-tight conduit hubs or cable glands at the bottom cutout entries to maintain the IP66 weather seal.
💡 ITEM DETAILS
Product Overview: VEVOR 24x24x12-inch NEMA 4X carbon steel electrical junction box with mounting backplate.
Key Features & Specs: MPN DQXJSTCFS60X60X30, NEMA 4X / IP66 rating, 1.5mm steel, removable galvanized backplate, key lock.
Item Details: Includes 1x VEVOR Steel Enclosure Box, 1x Removable Galvanized Mounting Backplate, Key Set, Rain Hood, Mounting Hardware.
📦 CONDITION & IMPORTANT INFORMATION
Item Condition: Brand New, Unused, Open Box.
Packaging Note: Items may ship in open-box or warehouse-inspected packaging. Outer boxes may show minor cosmetic wear, shelf handling, torn packaging, or residual adhesive/sticker marks from labels, but all internal contents remain brand new, sealed, and unused.
The Benefit: Deep discounts passed directly to you!
Return Policy Note: Returns must be in their original, unused condition to receive a full refund. Per policy, items returned in used, altered, damaged, or installed condition may be subject to a 50% deduction to account for loss of product value.
🏷️ ITEM SPECIFICS
UPC: Does Not Apply
Brand: VEVOR
Model: NEMA Metal Electric Enclosure
MPN: DQXJSTCFS60X60X30
Type: Electrical Box / Enclosure
IP Rating: IP66
NEMA Rating: 4X
Material: Carbon Steel
Color: Gray
Height: 24 in
Width: 24 in
Depth: 12 in
Features: Lockable, Waterproof, Removable Backplate, Hinged Door
Number of Items: 1
Unit Quantity: 1
Unit Type: Unit
Country/Region of Manufacture: China
