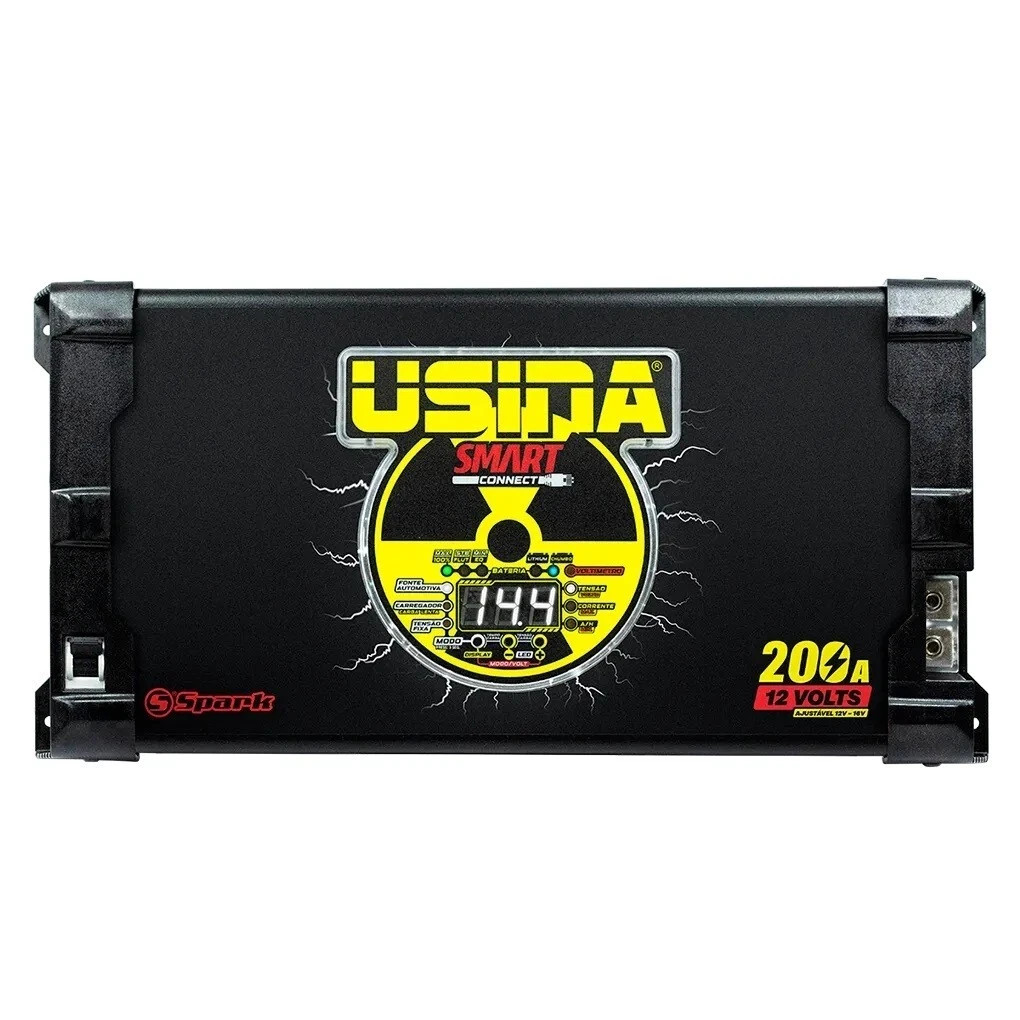

SMART CONNECT 200A - 12V LAUNCH
The USINA power supply was created with the main objective of powering the car\'s sound system without letting its batteries run down, even with the sound playing for several hours. It can also be used as a direct power supply (without using batteries), powering CD players, power modules, etc.
Input Voltage: Automatic Bivolt
AC 127Vac: 100 @ 140Vac
AC 220Vac: 170 @ 250Vac
127Vac Consumption: 36A (maximum)
220Vac Consumption: 21A (maximum)
Output Voltage: 12V @ 16Vdc (+-1%)
Output Current: 200A @ 12.5Vdc (+-5%)
Output Power: 2500 Watts (maximum)
Efficiency: 85%
Input Power: 2980 Watts (maximum)
Input Cable: 3x2.5mm² - 2P+T
Input Protection: 32A Circuit Breaker
Output Cable: 50mm²
Recommended Extension: 4mm² (max 30 meters)
Weight: 3,500 Kg
Approximate Dimensions (LxWxH): 420mmX200mmX80mm
