Uni-Solar PVL-128 Flexible Solar Laminate 128W 24V Carton 30 Panels 3840W For Sale

Uni-Solar PVL-128 Flexible Solar Laminate 128W 24V Carton 30 Panels 3840W

Uni-Solar PVL-128 Flexible Solar Laminate 128W 24V Carton 30 Panels 3840W

This listing is for a full factory carton of 30 Uni-Solar PVL-128B flexible amorphous thin-film solar laminates, totaling 3,840 watts of solar capacity. The PVL-128 is a photovoltaic laminate made by United Solar Ovonic (Uni-Solar) designed to bond directly to metal and membrane roofing surfaces without penetrations or mechanical fasteners. Each panel uses triple-junction amorphous silicon cells encapsulated in a durable ETFE polymer film with a self-adhesive ethylene propylene copolymer backing. This carton includes MC4 cables and a junction box for DIY installations.

Specifications & What\'s Included

• Model: Uni-Solar PVL-128B (PVL-128 with bottom-facing 4\" wire configuration)


• Quantity: 30 panels per carton


• Total carton power: 3,840W


• Maximum Power (Pmax) per panel: 128 Wp


• Production Pmax tolerance: ±5%


• Nominal operating voltage: 24V


• Max Power Voltage (Vmpp): 33.0V


• Max Power Current (Impp): 3.88A


• Open Circuit Voltage (Voc): 47.6V


• Short Circuit Current (Isc): 4.8A


• Maximum series fuse rating: 8A


• NOCT Max Power: 100W @ Vmp 30.8V / Imp 3.24A


• NOCT Voc: 43.5V; NOCT temperature: 46°C


• Panel dimensions: 216\" L × 15.5\" W × 0.2\" thick (5,486 × 394 × 4 mm)


• Panel weight: 16 lbs (7.7 kg)


• Cell type: Triple-junction amorphous silicon, 356 mm × 239 mm connected in series


• Encapsulation: Durable ETFE high light-transmissive polymer


• Adhesive: Ethylene propylene copolymer adhesive-sealant with microbial inhibitor


• Output cables: 4 mm² (12 AWG), 560 mm (22\") length; bare bottom-facing 4\" wire leads (red = positive, black = negative)


• Bypass diodes: Connected across every solar cell — shading or soiling of one cell affects only that cell\'s output (typically less than 4.5% total loss)


• Maximum system voltage: 600 VDC (UL)


• Wind/hurricane rating: Category 3, 130 MPH uplift resistant; no mounting hardware required


• Certifications: UL 1703 listed to 600 VDC, IEC 61646 v1 certified, IEC 61730 and TUV certification pending at time of data sheet publication


• Installation temperature range: 10°C to 40°C (50°F to 100°F)


• Maximum operating temperature: 85°C (185°F)


• Roof slope range: Minimum 5/8:12 (3°), maximum 21:12 (60°)


• Approved substrates: PVDF coated (Galvalume® or Zincalume®) steel metal roofing pan with flat surface; EPDM and TPO membranes from approved manufacturers; minimum 406 mm (16\") width


• Data sheet part number: AA5-3851-02


• Included: 30 PVL-128B solar laminates, MC4 cables, junction box for DIY installations

Applications

The Uni-Solar PVL-128 is designed specifically for commercial and residential metal roofing and membrane roofing systems where traditional glass-framed crystalline panels are impractical. Because the laminate bonds directly to the roof surface with its self-adhesive backing, installations avoid roof penetrations entirely — a significant advantage on flat or low-slope commercial roofs where leak risk is a primary concern. The flexible, glass-free construction makes these panels roughly one-fifth the weight of equivalent crystalline modules, which matters on load-limited roof structures. Amorphous thin-film technology gives the PVL series a performance advantage in low-light and high-temperature conditions compared to crystalline silicon panels: the triple-junction cell stack captures a broader portion of the solar spectrum, and the negative temperature coefficient means output degrades less on hot roof surfaces. These panels are commonly used on standing-seam metal roofs, TPO and EPDM membrane commercial roofs, and in off-grid systems where a low-profile, non-penetrating installation is required. The 24V nominal voltage makes them compatible with standard 24V battery banks and common grid-tie and off-grid inverters. Uni-Solar (United Solar Ovonic) produced the PVL series at their Michigan facility; production of new panels has ceased, making existing new-in-carton stock increasingly sought after for roof replacement projects and system expansions that used the original laminate design.

Condition: New

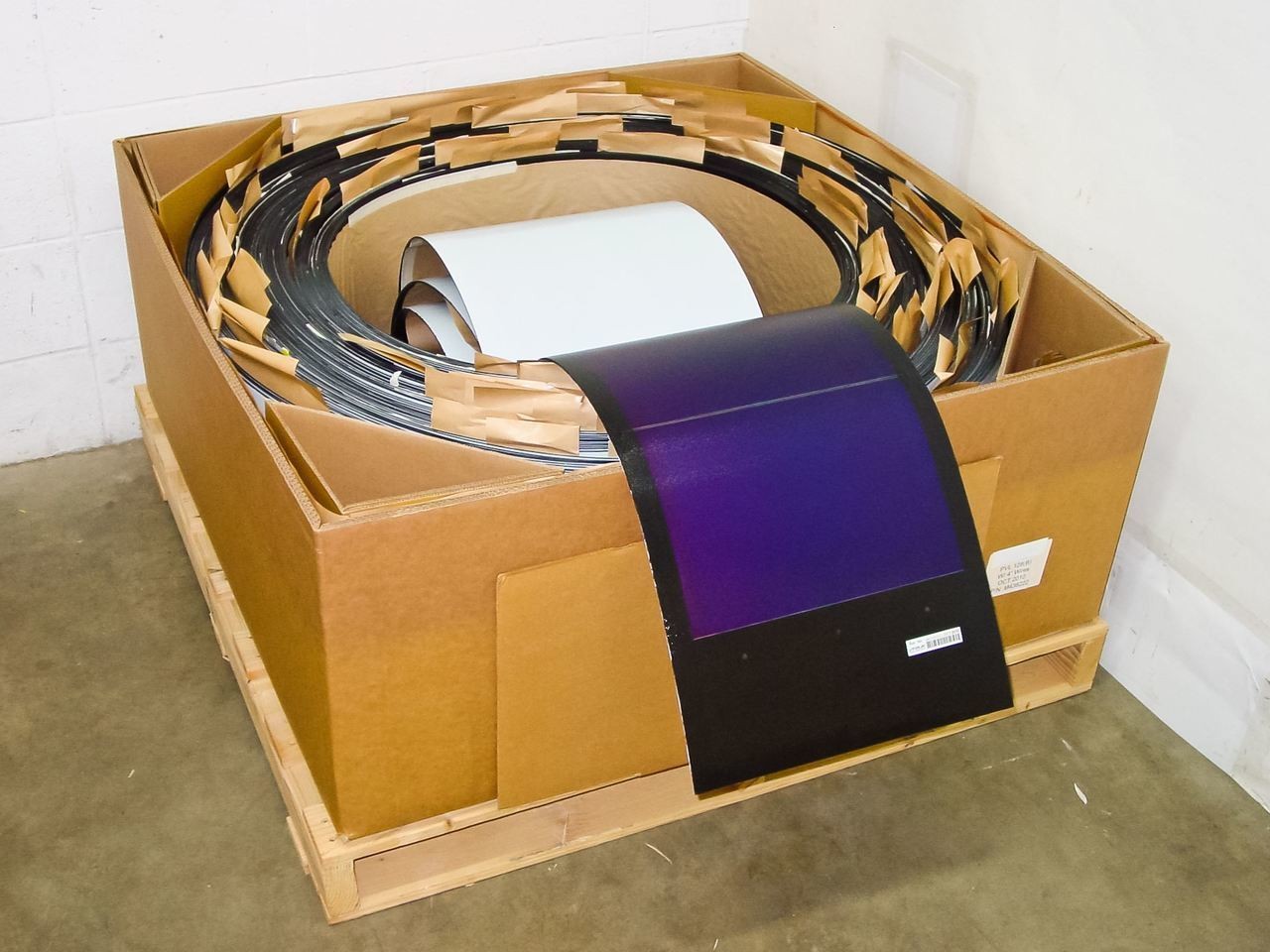

This Uni-Solar PVL-128 flexible solar laminate carton is brand new and unused. The carton contains 30 panels, each individually separated with cardboard interleaving as seen in the photos. MC4 cables and a junction box for DIY installations are included with every panel. Each panel has bottom-facing 4-inch bare wire leads (red positive, black negative) for connections made below the panel surface. Shipping is via freight to your nearest terminal for customer pickup — please contact us to confirm freight details before ordering. Please view our photo set and contact us if you have any questions. Visit Our Store
