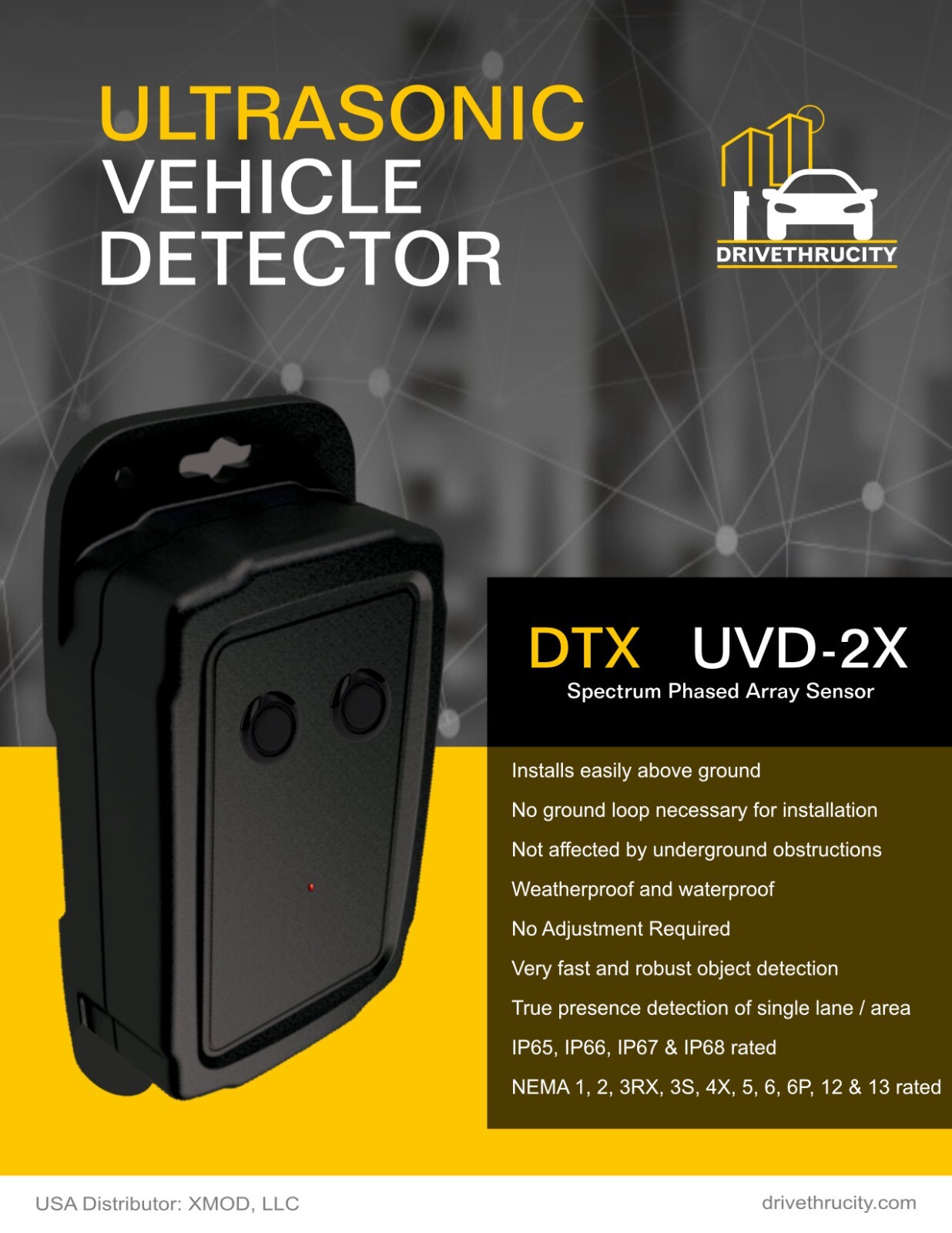

ULTRASONIC VEHICLE DETECTOR - SENSOR
- Installs easily above ground
- No ground loop necessary for installation
- Not affected by underground obstructions
- Weatherproof and waterproof
- No Adjustment Required
- Very fast and robust object detection
- True presence detection of single lane / area
- IP65, IP66, IP67 & IP68 rated
- NEMA 1, 2, 3RX, 3S, 4X, 5, 6, 6P, 12 & 13 rated
This device uses Spectrum Phased Array Sensor (SPA) technology to provide precise vehicle detection with the most reliable results.
This sensor can be used for a variety of different drive-thru applications including fast food (QSR restaurants), car wash, banking, automatic gates, toll booths, loading dock monitoring and other parking or access control applications.
Unlike a vehicle loop detector configuration that requires the installation of a loop in the pavement (you won\'t have to worry about cutting concrete), the UVD-2X may be simply mounted on a post or order box, 2 to 3 feet off the ground and aimed at the location of the vehicle when in position to perform a transaction or place an order.
The UVD-2X does not require any set up or functional adjustments, no additional loop detector, no need for special programmers or the need to stop traffic through the driveway during installation.
The UVD-2X greatly reduces the cost associated with installation of vehicle detection capabilities, compared to loop detectors for these types of applications.
In addition, the UVD-2X is factory calibrated to match sensor beam patterns and provide reliable detection zones and offers virtually noise free detection through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms.Compatible with all Drive-Thru Headset System like HME EOS - ION - NEXEO HDX, 3M XT1 - G5, Par, EMX, Panasonic Attune
Sensing elements:2 ultrasonic in Spectrum Phased Array configuration
Operating range:1ft. – 5ft.
Response time:2.0 / 4.0 seconds
Relay output configuration:1 SPDT (form C)
Relay Output:Settings forPresence,Pulse onENTRY, EXIT or BOTH
Relay contact rating:10A @ 24VDC
Power Indicator:Yellow LED
Vehicle Detection Indicator:Red LED
Supply voltage:9/24 VDC
Operating current:40mA
Operating x 3.5\" x 1.6”
Weight:0.5 lbs. (226g)
Housing:Impact-resistant polycarbonate
IP65, IP66, IP67 & IP68 rated
Weatherproof and waterproof
Made in the USA
Connection:6 position terminal block
Mechanical protection:NEMA 1, 2, 3, 3R, 3RX, 4, 4X, 5, 6,12 & 13 rated
