US SHIP】2SET Servo Motor Kit 750W 110V Servo Motor No Brake+Driver Controller For Sale

SHIPEED FROM US WAREHOUSE

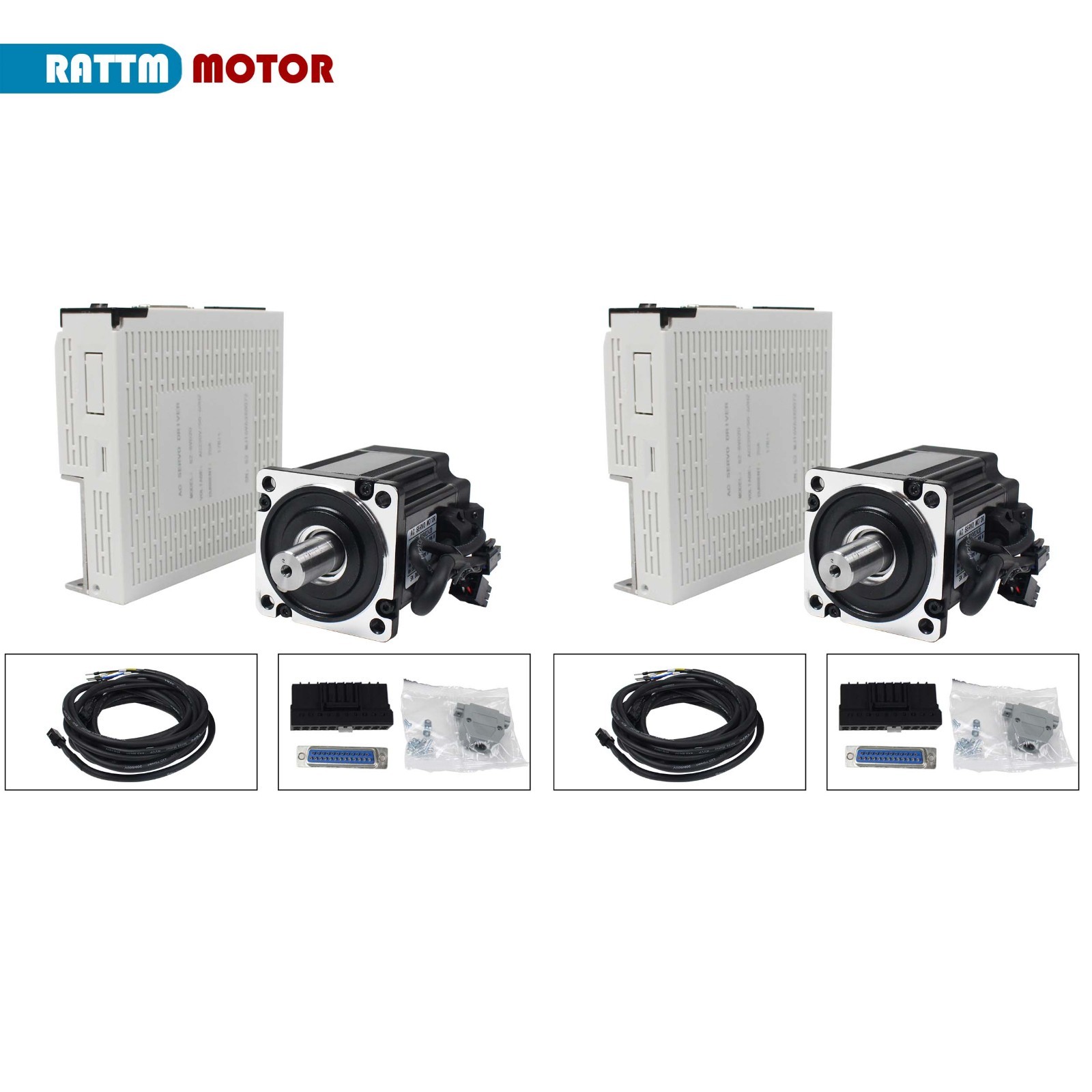

RATTMMOTOR 2SETS YPMC-750W 110V Servo Motor Kit, Servo Motor with Servo Motor Driver CNC Controller Kit for CNC Engraver Milling Machine/Robot (Without Brake)
Package Include

1 * A2M110-80SV02430 Type 750W 110V AC Servo Motor without brake

1 * S2SVD15-110 Type Servo Drive

1 * DB25 hole plug and shell

1 * 3m Power cable with plug

1 * 3m Encoder cable with plug

1 * Pdf. user manual (If you have not received the user manual at Amazon Message Center from us,please message us)

Wiring diagram of S2-SVD servo driver

CN1 port:

• Support RS-232 and RA-485 interfaces, adopts Modbus communication protocol, and can be connected to upper computer devices such as PC and PLC.( Note: Controllers with CN1 ports need to be customized separately )

CN2 port:

• Upper computer singal cable. Can be connected to CNC system, programmable controller or other upper device.

CN3 port:

• Encoder cable. Connected to servo motor.

L1 / L2:

• Input power supply.

B+ / B1 / B2:

• Braking resistor terminal.

U / V / W:

• Motor power cable. The four motor power cables must be connected to the correspoonding teiminals of the driver and cannot be connected incorrectly.

PE:

• Ground terminal of the driver.

Servo Motor Parameters:

• Model: A2M110-80SV02430
• Power: 750W
• Rated power supply: 110V
• With brake: No
• Number of poles: 5
• Rated torque: 2.4 N.m
• Instantaneous max torque: 7.2 N.m
• Rated speed: 2500rpm/min
• Max speed: 3000rpm/min
• Moment coefficient ( Nm/A ): 0.5±10%
• Back EMF Coefficient ( X10V/rpm ): 33.2±10%
• Resistant( Ω ): : 1.6±10% ( 20℃ )
• Inductance: 9.5±20% mH ( 20℃ )

• Moment of inertia ( X10V/rpm ): 1.72±10%
• Max radial load: 392
• Max axial load: 174
• Ender resolution: 10000ppr
• Protection structure: IP65
• Insulation class: F
• Insulation Resistance: More than 20mΩ DC500V
• Insulation withstande voltage: AC 1500V 1 minutes
• Bibration level: Rated A for operation
• Turn around: F0rward turn command view from load sid,counterclockwise ( CCW )
• Surroundings: Temperature-20℃-40℃, humidity 20%-80% RH ( no condensation ), altitude below 1000; Temperature-20℃-60℃, ( no freezing ), humidity 20%-80% RH ( no condensation ).
• Inpact Strength: 98m/S²
• Vibration resistance: 49m/S²
• Rated voltage DC ( V ): 24±10%
• Rated power: 0.3
• Static torque: ≥ 4
• Insulation resistance: ＞500
• Resistance to high voltage: 1500V/1S/5mA
• Rotary clearance: ≤ 0.5
• Operating ambient temperature: -10 - +40
• Attract Time: ≤ 60
• Release Timeattract voltage: ≤ 20
• The release of the voltage: ≤19.2
• Running noise: ＞1.5
• Running noise: ＜60

Display Screen

1. Mode selection key: Mode switching and return to the parent directory.
2. Number increase key: Increase the number, and long press will have repeated effect.
3. Number reduction key: Decrease the number, and long press has a repeating effect.
4. Shift key: Cursor shift.
5. OK key: Determine setting and End parameter setting.

Note

When the display screen shows Fnxxx, Dnxxx, Pnxxx, it is in the top directory, and the mode key is the mode switching function, which can directly switch to othe modes. Otherwise, the mode key is the fuction of returning to the upper directory.

Driver Parameters:

• Model: S2SVD15-110
• Input voltage: AC110V (50/60Hz)
• Cooling method: Heat dissipation air cooling
• Encoder type: 17 bit magnetic encoder

DEFINITION OF CONTROL PORT CN2 PIN ( Interface No-Pin-Name-Fuctiom)

NO.9 (DC12-24V), NO.10(COM) :

• Power supply and gound of inout/output control singal.

NO.6 ( sigin1: servo cable ), NO.7 ( sigin2: alarm reset ), NO.8 ( sigin3: position deviation clearing ), NO.9 ( sigin4: pulse input disable ) :

• Input command signal. Functions assigned to each input signal port at the factory.

NO.2 ( sigout1: PV,open collector input power supply ), NO.3 ( sigout2: PP+ ), NO.14 ( sigout3: PP- ), NO.4 ( sigout4: PD+ ), NO.5 ( sigout4: PD- ) :

• The command pulse can beinput in three different ways:

1. Command direction and pulse input
2. Clockwise/counterclockwise pulse input
3. Quadrature pulse input with 90 degree phase difference.

NO.20 ( empty ), NO.19 ( empty ), NO.18 ( empty ), NO.17 ( empty ), NO.15 ( empty ), NO.16 ( empty ), NO.22 ( OZ ), NO.1 ( GND ) :

• Contact the manufacturer for encoder output function.

NO.25 ( verf ), NO.13 ( AGND ) :

• Analog voltage input port. When speed or torque is controlled, it is used to receive speed or torque commands. Voltage input range: -10V~+10V.

Application Areas

Suitable for a variety of automation equipment and instruments, such as screw machines, automatic equipment, medical equipment, semiconductor equipment, engraving equipment, measuring equipment, AGV carts, etc.
