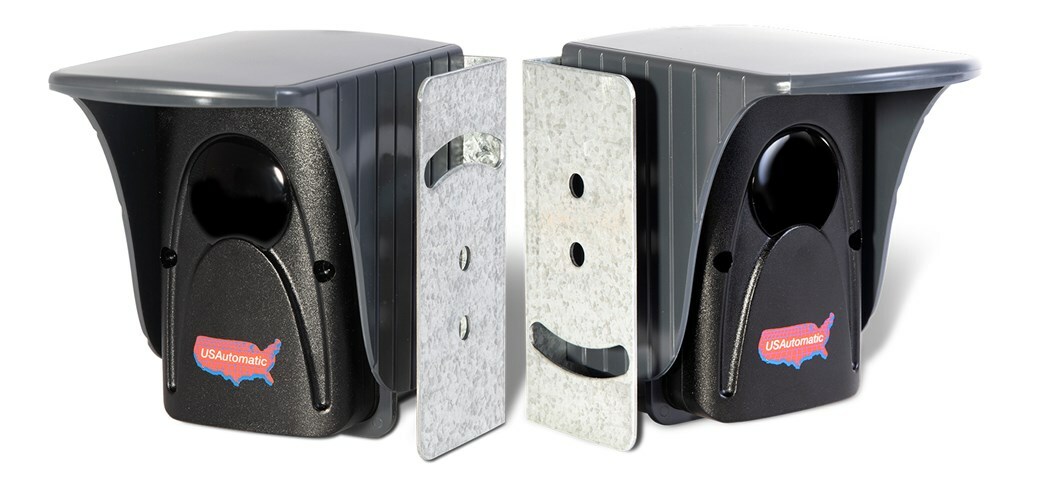

US Automatic 550011 Photo Eye Kit - Battery Operated Infrared Through Beam
US Automatic 550011 Photo Eye Kit - Battery Operated Infrared Through Beam
The infrared photo eyes are a People and Property safety device intended for use with automatic gate operating systems. Swing gate operators require at least one external monitored entrapment device for gate operation and Slide gate operators require at least two external monitored entrapment devices (one for each direction) for gate operation per UL325 the standard for gate operator safety. See gate operator installation manual.
The transmitter can be powered by two 3.6 vdc lithium batteries
(model - ER14505) or it may be hard-wired to the gate operator
control board. The expected battery life should exceed 1 year.
TECHNICAL SPECIFICATIONS
Power supply TX: 3.6V
Battery voltage 2 x 3.6V
Battery capacity 2.4Ah
Battery type ER14505
Expected battery life 15 months
Power supply RX 9 / 24 Vac/dc
Current consumption Transmitter 400 μA
Current consumption Receiver 20 mA
Double contact relay with serial exchange yes
RX output contacts 1 NO / 1 NC
Max DC power on relay contacts 24W / 48V
Max AC power on relay contacts 60 VA / 48 V
Operating temperature -4°F /+131°F
Housing protection IP55
Rated range 42 ft / 13 m
Dimensions with hood: WxHxD 75 x 105 x 105 mm
2.95 x 4.13 x 4.13 in
