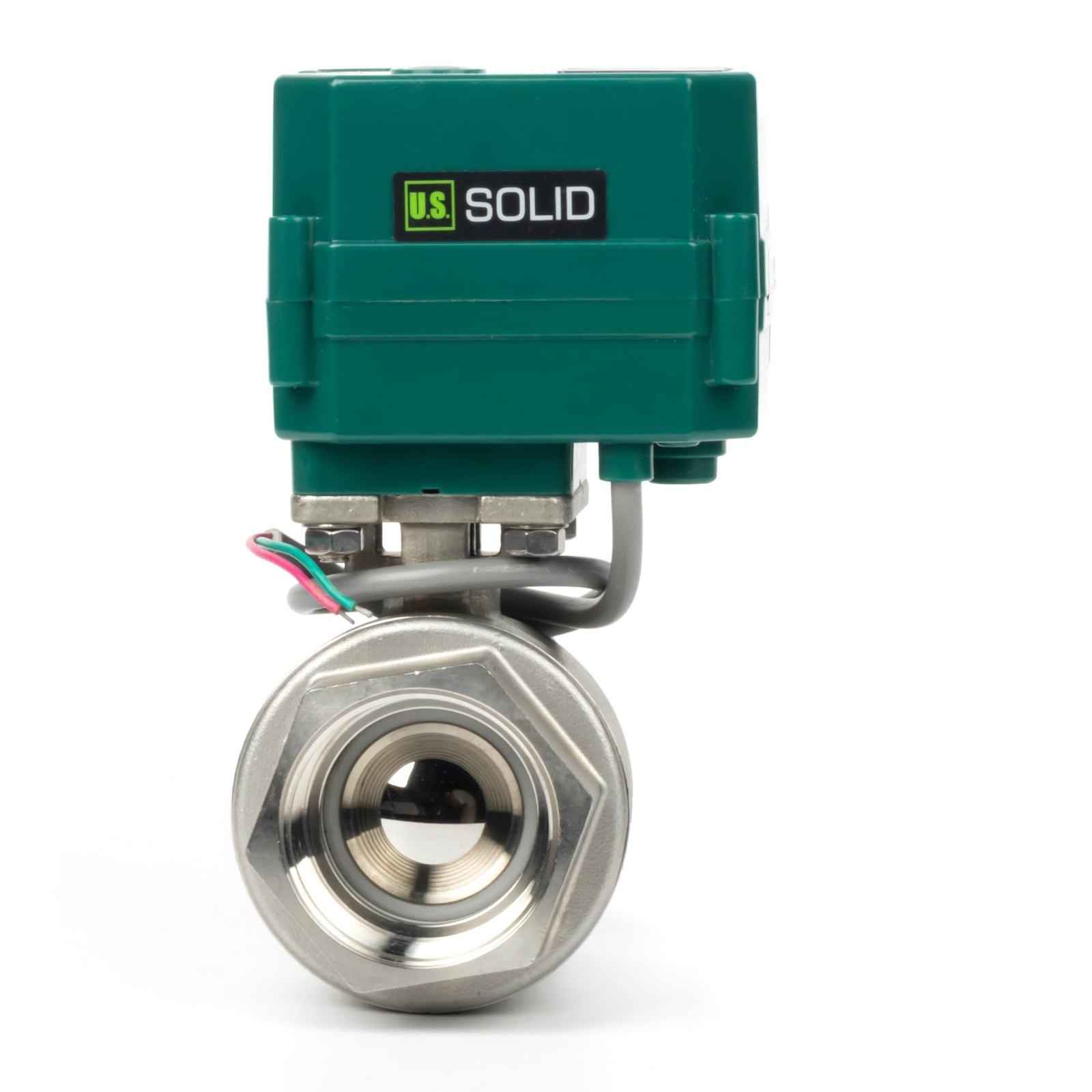

U.S. Solid Motorized Ball Valve 1 1/2in Full Port SS 9-24V NC Auto Return For Sale

Motorized ball valves provide an energy-efficient option compared to solenoid valves, particularly for extended periods of operation. They primarily use power when opening and closing, with minimal consumption once fully open. This enables continuous operation without the concern of overheating or premature failure. We recommend using Teflon tape to ensure the sealing of NPT threads.

• IP65 Rating: protection from water jets from any direction. If permanently installed outdoors, it is advisable to place it in a shaded area or in a protective enclosure to prevent prolonged exposure to rainwater.
• Full port. The internal diameter of the valve matches that of the connected pipe.
• Normally closed. It remains closed without power and opens when energized.
• 2 Wire auto return wiring. DC: Connect the red wire to the positive pole(+) and the black wire to the negative pole(-) to open the valve. Disconnecting either wire will close the valve. AC: Connect one wire to the positive pole(+) and the other to the negative pole(-) to open the valve. Disconnecting either wire will close the valve. To ensure proper operation of the auto-reset function in case of power failure, it is necessary to power the equipment for approximately one minute for charging the capacitor in 2-wire-auto-return motorized ball U.S. SOLID
  Model: USS-MSV00409
  Valve Material: Stainless Steel
  Is Drinking Water Available?: Yes
  Seal: PTFE
  Voltage: AC/DC 9-24V
  Port Size: 1-1/2\" NPT Full Port
  Normally Closed/Normally Open: NC, Normally Closed
  Maximum Torque: 10 N·m
  Maximum Power: 18 W
  Open/Close Time: 6-8 Seconds
  Life Expectancy: 30,000 to 50,000 Cycles
  IP Rating (Casing): IP65
  Maximum Pressure: 1.0 MPa (145 psi)
  Medium Temperature: 0℃ to 90℃ (32℉ to 194℉)
  Ambient Temperature: -10℃ to 40℃ (14℉ to 104℉)
  Wiring: 2 Wire Auto Return
  Casing Color: Green
