Hiossen/OSSTEM/Nobel/Zimmer TSV/MIS/Biohorizons/Neodent GM/ MegaGen Locator Abutment
Similar to: zest locators●Material: Titanium (Ti6Al4V ELI)●Connection Type: Internal Conical Connection
Model:

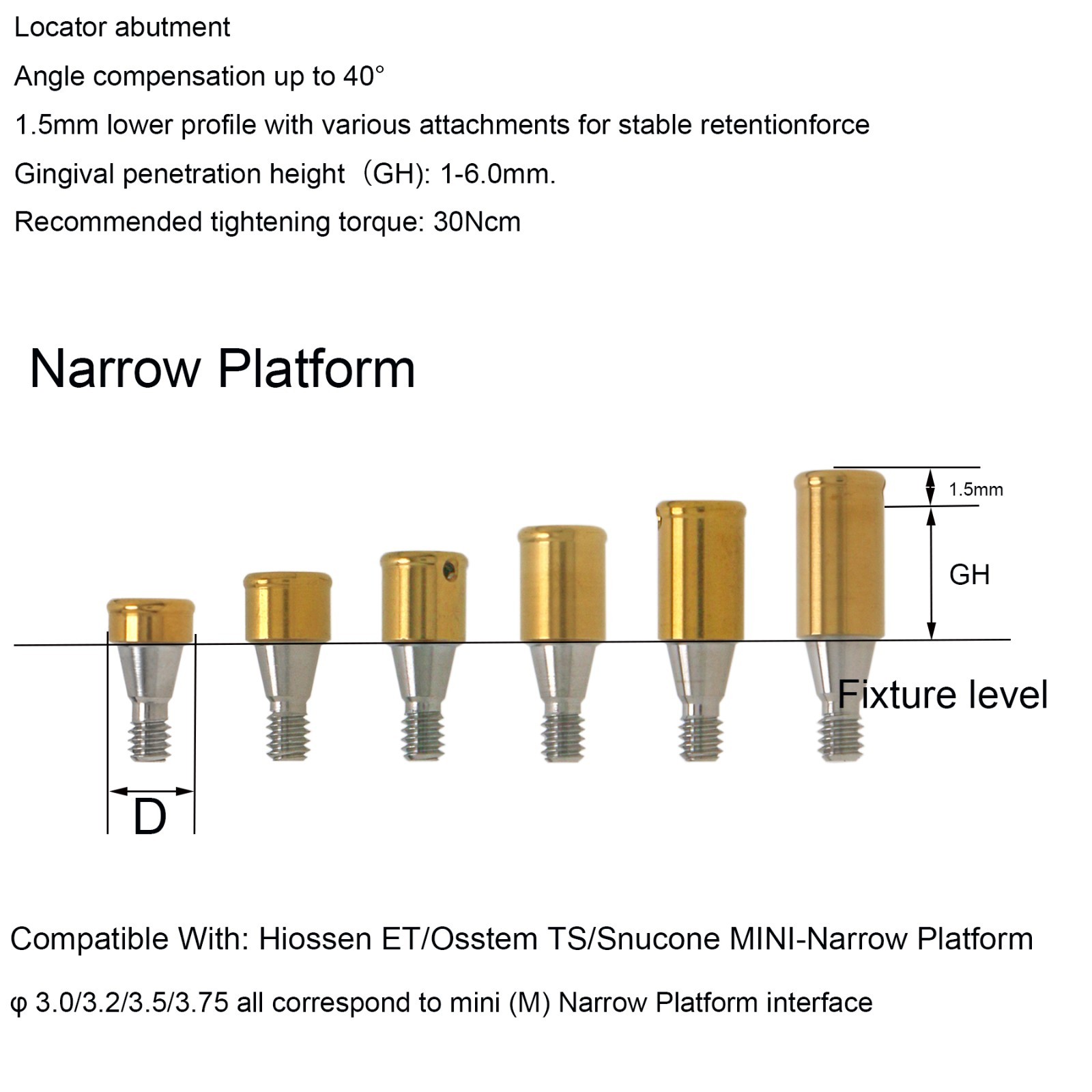

●Compatible With: Hiossen ET/Osstem TS/Snucone MINI-Narrow Platform
1.0/2.0/3.0/4.0/5.0/6.0mm GH
●Compatible With:Hiossen ET/Osstem TS/NeoBiotech/DIO UF II/Cowell/INNO/CSM,Anker Snucone Regular GH
φ 3.0/3.2/3.5/3.75 all correspond to mini (M) Narrow Platform interface;φ 4.0/4.5/5.0 corresponds to the conventional (R) Regular Platform interface.
●Compatible With:ZimmerTSV Tapered Screw-Vent 3.5mm,BEGO,MIS,Cortex, Adin，BioHorizons Tapered Internal hexagonal Platform
Adin: Standard Internal Hex Implant system(Touareg-OS, Touareg-S, SWELL)
MIS: Seven/M4/Lance
ABT: IHC/SPI/ICE\\DFI
Zimmer TSV Tapered Screw-Vent 3.5mmBioHorizons Tapered Internal, Tapered Pro, Tapered Plus
1.0/2.0/3.0/4.0/5.0/6.0/7.0mm GH
●Compatible With:Zimmer TSV Tapered Screw-Vent 4.5mm/BioHorizons Tapered Internal, Tapered Pro, Tapered Plus1.0/2.0/3.0/4.0/5.0/6.0mm GH●Compatible with: NobelActive, NobelActive TiUltra, NobelParallel CC, NobelParallel CC TiUltra, NobelReplace CC, NobelReplace CC PMCConical GH●Compatible With: Straumann ® Bone LevelNarrow Platform NC/Regular Platform RC GH
●Compatible With:MegaGen AnyOne Den-tium Dentis SG Platform
3.0/4.0/5.0mm GH●Compatible With:MegaGen AnyRidgeImplants,Locator Implant System Port GH
●Compatible with: Straumann Dental Neo Dent Gmimplants, Grand Morse Connection All Platform,Not suitable for Helix GM Narrow impants.
1.0/2.0/3.0/4.0/5.0/6.0mm GH
●Locator Abutment Tool
●Locator Core Tool-Golden●Locator Core Tool-Silver
●Locator Screwdrive KD619●Locator Screwdrive KD719
●Introduction:
● Attachment Abutment Product Description:● All Overdenture Abutments come pre-mounted with a placement tool for ease of use.●Classic Housing Cap and Retention Insert design.●Fully bio-compatible material.●Exhibits increased hardness and wear resistance.●Reduced bacterial adhesion.●Enhanced lubricity compared to the traditionally●used Five-grade titanium,Softer, more aesthetic gold color.●Angle compensation up to 40°●1.5mm lower profile with various attachments for stable retentionforce●Recommended tightening torque: 30Ncm
●Note:Different batches have different abutment colors.●Locater Core Tool
The LOCATOR Overdenture Attachment System features a Core Tool that contains 3 tools in 1.This convenient tool is used to carry and place the LOCATOR Abutment, remove the LOCATOR Male, and insert the male into the LOCATOR Denture Cap.Insert drivers for various types of torque wrenches are available to achieve 30 Ncm of torque.●REMOVAL:The male removal tip has a pointy end useful for gripping and removing the retainers of the metal caps incorporated in the overdenture.●INSERTION:The central part of the Remove core tool, once detached from the tip, has a cylindrical end specially designed for inserting the retainers in the metal caps.●SCREWING:This end of the Remove core tool, acts as a driver for carrying the Remove abutment into the oral cavity and as a hand driver for fixing it to the implant.●How to use:Loosen the Removal End of the Core Tool. You will see a visible gap between the removal tool and seating tool.Insert the Removal Tool Tip into the Denture Assembly and push straight into the Male. Tilt the tool so that the sharp edge of the tip will grip the Male and pull it out of the Denture Cap.Once the Male is removed proceed to point the tool down and away from you. Tighten the Removal Tool Clockwise back onto the Core Tool. This will disengage the Male from the tip of the Removal ToolSeparate the Removal Tool part of the Remove Core Tool. Use the Seating Tool to place a new Male into the empty Denture Cap
●Locator abutment Screwdriver
● KD6191.Fit for Locator Abutment2.Abutment Screwdriver3.Dental Implant Adapter 4mm Square Fit for 7mm Hand Torque Wrench Ratchet
● KD7191.Fit for Locator System Abutment2.Abutment Screwdriver3.Fit for 7mm Torque Wrench
●TriangleCompatible: Locator Abutment.● FDA Statement
● The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, you can offer on this item only if you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item.
● Seller\'s name: ningfandent
● City State: Zhengzhou, Henan China
● Telephone number：+86371-68618288
