Tinworksinc Harley Under Trans Oil Tank,Bobber Shovelhead/Evo/Pan For Sale

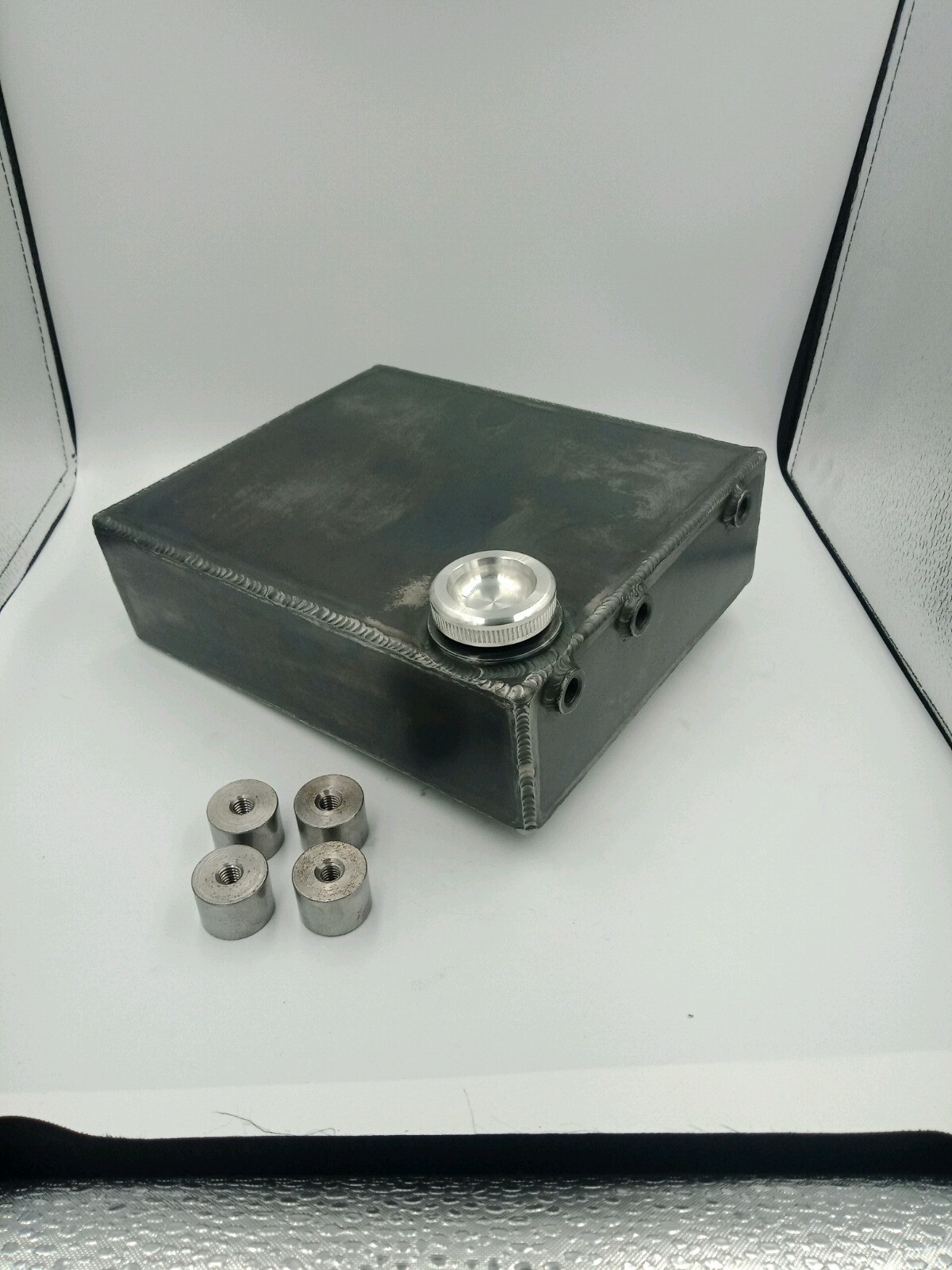

TINWORKSINC UNDER TRANSMISSION OIL TANK
MADE IN THE USA.
MADE FOR CUSTOM HARDTAILS TO GET THAT CLEAN OPEN LOOK UNDER THE SEAT AREA OR PERFECT FOR DROP SEAT FRAMES.
8-3/4INCH LONG FRONT TO BACK 220MM WIDTH - 7-1/4 INCH 180MM
HEIGHT - 2-1/2INCH 165 MM
QTY FOUR - 5-1/6-18 UNF Thread.
120 wall 3MM Thick STEEL.
100% Tig Welded Certified Tig Welder.
Pressure Tested/Holds 3 qrts-2.839 Literes of Oil.
1/8 NPT Pipe threads
Aluminium cap comes with O-Ring
Two of the pipe bungs on top are the vent and return the bottom is the drain the pick up or feed is on the side has a tube welded inside that goes to the bottom of the tank.
All bungs are cnc made
Comes complete with all mounting hardware.
These tanks are perfect for any hardtail build or cafe rigid bike you are building.
Might have to be notched in a corner depending on your transmission set up.
In Stock and ready to ship!!!
