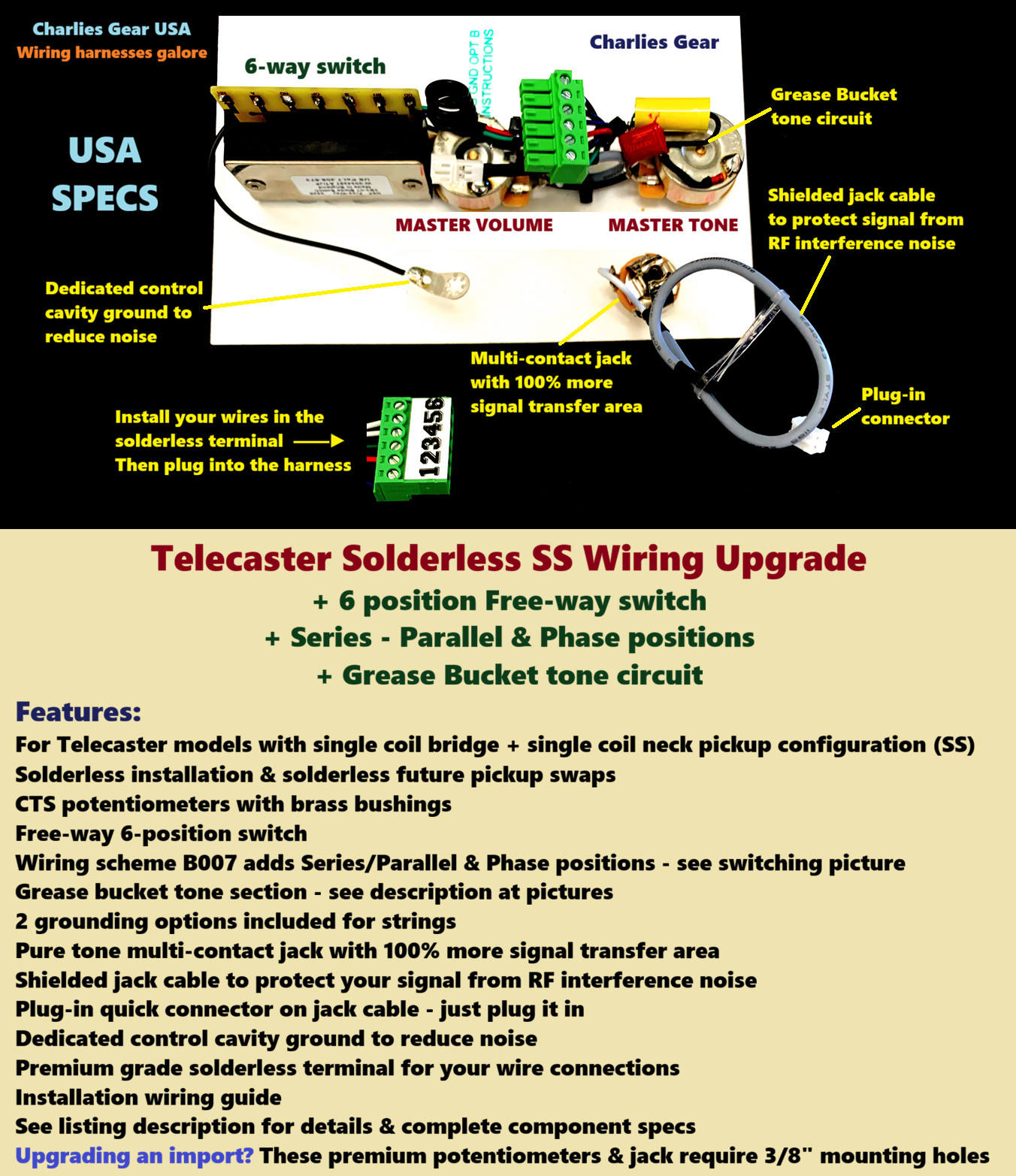

Telecaster solderless SS wiring upgradeMaster volume / Master tone / 6-way switch / Grease bucket tone sectionComplete harness - Completely wired (Not a parts kit) - Ready to installfrom Charlies GearFeatures:Master volume/Master tone/Free-way 3B3-01 (6 position switch)ForTelecastermodels with single coil bridge + single coil neck pickup configuration (SS)Solderless installation & solderless future pickup swapsCTS potentiometers with brass bushingsFree-way 6-position switchWiring scheme B007 adds Series/Parallel & Phase positions - see switching picsGrease bucket tone section - see pics for description2 grounding options included for stringsPure tone multi-contact jack with 100% more signal transfer areaShielded jack cable to protect your signal from RF interference noisePlug-in quick connector on jack cable - just plug it inDedicated control cavity ground to reduce noisePremium grade solderless terminal for your wire connectionsUSA spec componentsScroll down for complete component specsUpgrading an import?Upgraded potentiometers & jack require 3/8" mounting holes
Installation:This system is designed to make upgrading your electronics with premium components easy, quick and frustration free.1- Install your stripped wires into the solderless terminal ports and secure with the included screwdriver.2- mount your new harness in the control cavity3- plug the solderless terminal into the harness.BING - BANG - BOOM - DONE!Plus, no burned fingers!***Makes future pickup upgrades a snap***Specifications:Master volume/Master tone/Free-way 3B3-01 switchMaster volume/Master tone/Free-way 3B3-01 switchSolderless installation & solderless future pickup swapsCTS 24mm 250k potentiometersCTS (or Bourns) 24mm short shaft 500k audio potentiometersSolid shaft (for knobs)Solid shaft for knobs (or split shaft)Treble bleed3B3-01 switch (wired to scheme B007 Series/Parallel/Phase)3B3-01 switch wired to scheme B010 Series/parallel (includes phase at some positions)Switch tipSwitch tipGrease bucket tone sectionOrange drop .022µf tone capacitor2 grounding options included for strings2 grounding options included for stringsPure tone multi-contact jackPure tone multi-contact jackShielded cable with plug-in quick connector for jackShielded cable with plug-in quick connector for jackSolderless terminal for your wire connectionsSolderless terminal for your wire connections2mm screwdriver for terminal2mm screwdriver for terminalInstallation wiring guide
Installation wiring guideUSPS Ground Advantage or expedited delivery
Check out Charlies Gear for wiring harnesses galore!500 different wiring harness models in this storeDon't see what you need?Just get in touch to have it custom made & ready in a few days!
Note: sales outside USA may incur import duties
