Tektro 180-17 E-Bike Hydraulic Disc Brake Rotor 6 Bolts 2.3mm thickness-OE For Sale

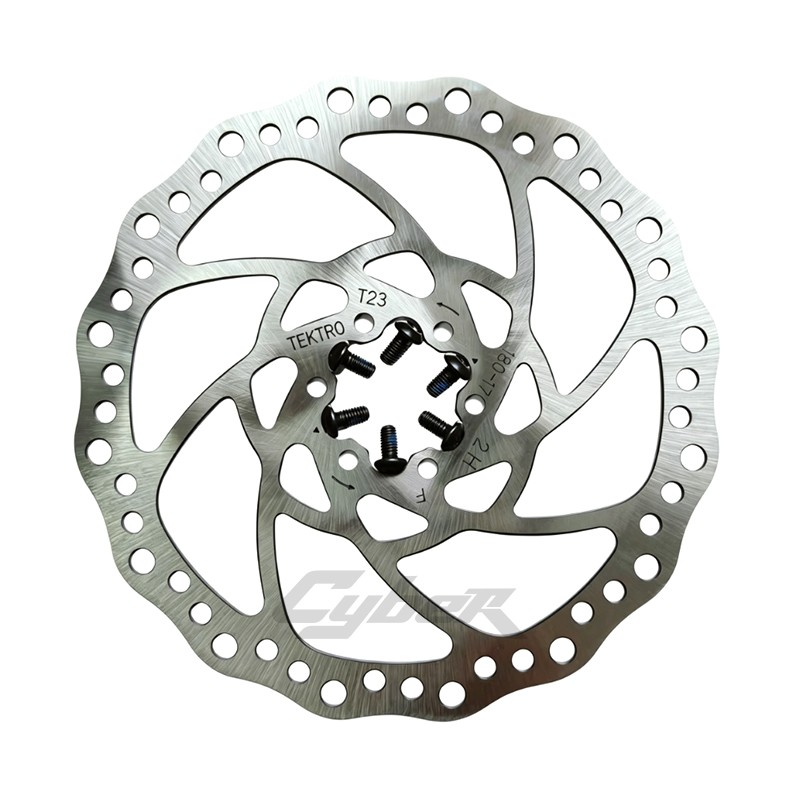

Tektro TR-17 (TR180-17) 180mm 6‑Bolt Disc Brake Rotor – Bulk Pack with 6 Bolts

A high‑performance, 2.3mm thick stainless‑steel rotor designed for reliable braking and excellent heat dissipation. Its wave‑type pattern enhances heat tolerance and cooling, making it suitable for demanding riding conditions. Compatible with all pad compounds and specifically engineered for Tektro e‑bike brakes (HD‑M750, HD‑E745, HD‑E740, HD‑E735, HD‑E730, HD‑T390). This bulk pack includes the rotor and the necessary mounting hardware for a straightforward installation.

Feature

Details

MPN (Manufacturer Part Number)

ABRT000051

Model

TR‑17 / TR180‑17

Diameter

180 mm

Mount Type

6‑Bolt (ISO standard)

Thickness

2.3 mm

Material

Stainless steel

Pad Compatibility

All pad compounds (resin & metal)

Weight

Approx. 192 g (rotor only)

Design

One‑piece wave‑type for improved heat dispersion

⚠️ Installation Note

1. This is a bulk/OE (Original Equipment) pack – the rotor is supplied without retail packaging, but includes all essential hardware.

2. The package contains 6× T25 Torx mounting bolts (and in some cases a T25 tool) .

3. Clean the rotor surface thoroughly before installation to remove any protective oil or contaminants.

4. Tighten the bolts in a star pattern to 4‑6 Nm, ensuring even contact and avoiding warping.

5. Verify that your brake caliper is designed to accommodate a 2.3mm‑thick rotor .

📦 What’s in the Bulk Pack

• 1× Tektro TR‑17 (TR180‑17) 180mm 6‑bolt disc rotor

• 6× T25 Torx mounting bolts
