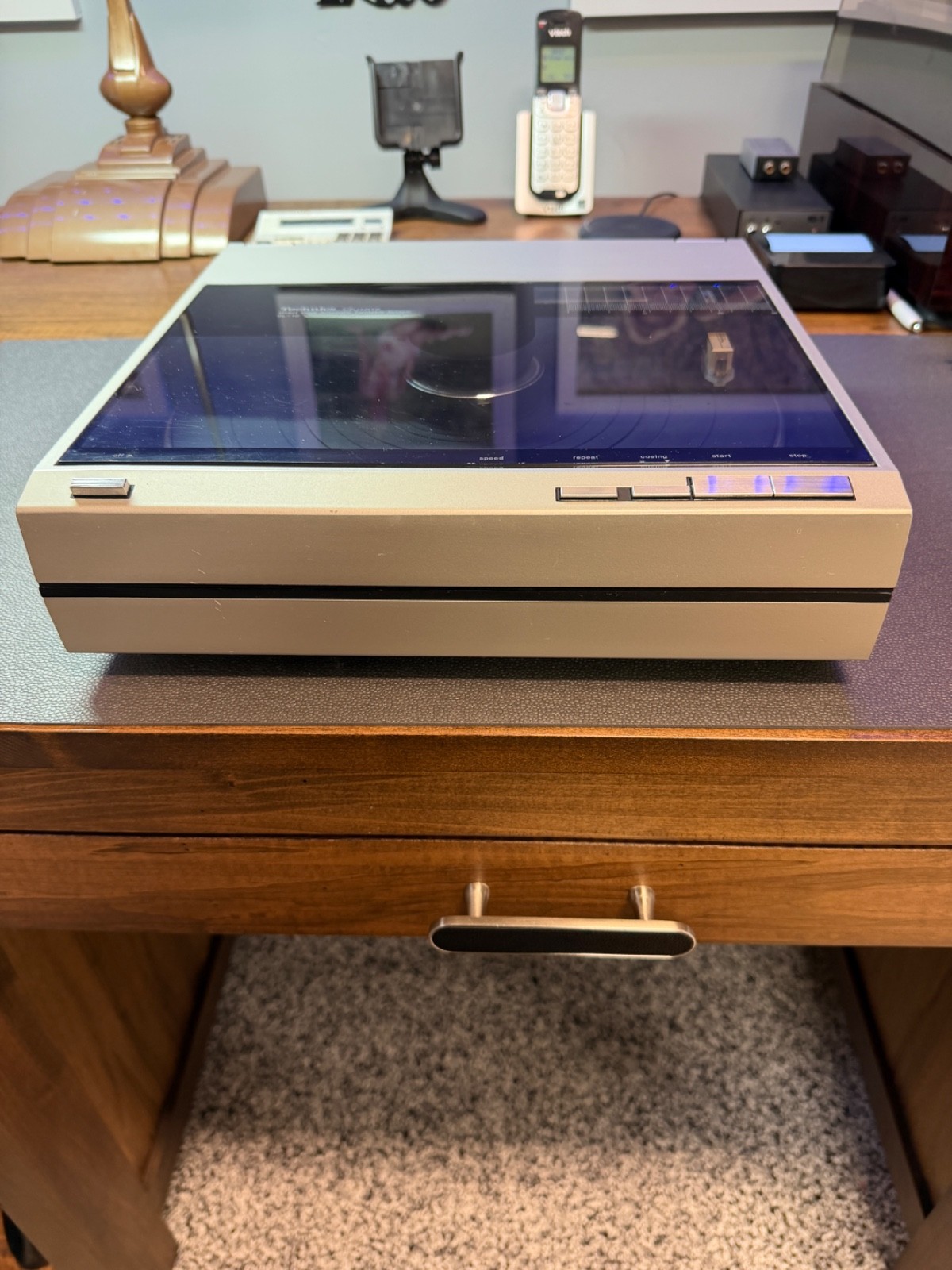

This is from my personal collection. It was used sparingly as it was in a second system. My main system was a Technics SL-M3 turntable. Works perfectly and all functions operate as they should. Visually I would rate it as an 8.5 out of 10 ( I am picky), minor scrapes on the case and on the plexiglass cover. Operationally fantastic. I tried to picture any flaws, remember this is a 40 plus year old item and is not new. I purchased a few years ago on Audiogon from an engineer in Canada who had it serviced completely a few years before. When i received it the unit came with a nice Audio Technica cartridge. Originally these tables came with the renowned Technics EPC-310MC, which is a moving coil cartridge. I was lucky enough to have purchased 2 NOS 310MC\'s for my SL-M3, so I absolutely installed one of those and the sound was amazing. This player has a built in phono preamp that allows you to use Moving Coil Cartridges or Moving Magnet Cartridges. Just by using a switch on the rear of the turntable. Changing cartridges is a breeze! The sound is outstanding! It also includes the original Manual, rare to find the original RCA plugs with built in ground wire, aftermarket stands to be optionally used on a tabletop with a 45 a degree angle. Also, if you are an audiophile and want to use higher end cables, like i did, I have included a custom made independent ground wire pictured in photo 19 &20! Also pictured in photo 21 & 22 are the way the tonearm and cartridge are secured and must be carefully removed. This is the same way it was packed when shipped to me and it traveled perfectly. The cartridge has a cover protecting the needle. There is also a small factory lock switch that is on the arm to stabilize for shipping andis engaged, simply slide it to the left and you are ready to play!
The reason I am selling is due to we are downsizing, I have and am selling other P Mount cartridges and vintage receivers and tape decks.
I previously had a VPI and Technics SL-1200 turntables and got tired of pain staking alignment of changing cartridges or worries of something moving after hours of play. The P Mount system is really a plug and play system and everything is perfectly aligned. I can honestly say that I compared the VPI and Technics P Mounts with similar quality cartridges and the difference were only very slight.
I sold the other 2 tables and went to the P Mount system and never looked back!
Please ask any questions before buying, I would be happy to answer. The unit and all the extras will be well packed and secured, I have experience in packing and shipping vintage audio equipment, just check my reviews.
Ship only to confirmed UPS address and Continental US, no PO Boxes and if you have no review history when buying, please do not offer.
Items included:
Technics SL-10 TurntablePower CableOriginal ManualOriginal RCA connector with built in Ground WireCustom Made individual Ground WireAftermarket Angled Stands for TurntableHere are the specs:
This is a full auto player that was developed by putting Technics player technology into a record jacket size of 31.5 cm width and depth.
The tone arm uses a linear tracking tone arm.
In the linear tracking arm, a DC motor with high rotational accuracy is used for arm travel, which is controlled by a microcomputer. In addition, by adopting a slide bearing with a small friction coefficient, quiet and highly accurate arm travel without unnecessary vibration is realized compared to methods using ball bearings and rollers for arm movement.
An original optical sensor (optical non-contact type) is used for arm deflection angle detection, and detection at the tip of the arm enables more accurate control than detection at the bearing.
A 4-point support gimbal suspension structure with a pivot ball bearing is used for the bearing section. The ideal structure in which the tone arm moves around a clear point realizes the same high sensitivity in all directions.
In addition, by adopting a unique dynamic balance system, strict horizontal adjustment of the cabinet is not required, and by using a stabilizer together, stable record performance at all angles is possible.
The turntable drive unit adopts a unique integrated structure D. D. that integrates the motor rotor and turntable, and pursues mechanical accuracy. In addition, high-precision rotational performance is achieved by adopting quartz control and full circumference detection F. G.
Equipped with a microcomputer controlled full-auto mechanism that consolidates all operations into four buttons. This allows the number of revolutions to be automatically set according to the record size just by setting the record and pressing the start button.
In addition, the number of revolutions can be manually switched in order to support records of special number of revolutions.
The arm part is designed to automatically return to the arm rest after the performance.
Also, even during the performance, when the upper cabinet is opened, it returns to the armrest.
The 310 mc MC-type cartridge is used.
This cartridge is based on the Technics305MC and originated in Shinkai for the SL-10. By adopting a pure coil without an iron core, a coreless twin ring coil structure, and a pure boron pipe cantilever, this cartridge realizes a light oscillator effective mass of 0.23 mg and enables wide-band reproduction.
In addition, a unique plug-in connector method is adopted for the connection with the arm, and it can be connected simply by directly inserting into the tone arm or by fastening with a screw. There is no need to adjust the needle pressure, etc.
Built-in MC pre-preamp of low noise design.
The rear bypass switch allows switching between MM and MC.
It is equipped with a muting function using a relay and delay circuit, eliminating noise at the moment when the needle tip touches and leaves the record.
Both the upper and lower cabinets are made of precision die-cast aluminum, and combined with the compact design that is less susceptible to sound pressure, the howling resistance is improved.
In addition, the back of the turntable is deadened with rubber to ensure no vibration and no resonance.
The power supply uses AC/DC2 power supply system and can be battery powered in addition to AC power supply.
An adapter for a doughnut board is built in around the center spindle.
When using LP records, it can be stored in the turntable, and when using EP records, it can be easily popped up.
Separately sold player stand can be used.TypeDD full auto-player system<Turntable portion>Drive systemDirect driveDrive motorBrushless DC motorControl systemQuartz phase locked controlTurntableAluminum die-cast, diameter 30 cmNumber of revolutions33 1/3, 45 rpm, Auto Select (Manual Allowed)Rotational speed deviationWithin ± 0.002%Wow and flutter0.025%WRMS(JIS C5521)
0.012% WRMS (characteristics of rotating part only)
± 0.035% Weighted zero to peak (IEC98A weighted)Signal-to-noise ratio78dB(IEC98A weighted)
58dB(IEC98A unweighted)Tone Arm SectionFormatDynamic balance type linear tracking arm
Gimbal suspension bearing structureEffective arm length105mmTracking error angleWithin ± 0.1 °Arm effective mass9g (including cartridge)Arm resonance frequency12HzArm drive motorDC coreless motorCartridge SectionFormatPlug-in Connector MC Type Stereo Cartridge (EPC-310MC)MethodCoreless twin-ring coil systemCantileverPure Boron Pipe CantileverDamperTTDD(Technics Temperature Defense Damper)Frequency characteristic10 Hz to 60 kHz
10 Hz to 10 kHz ± 0.5 dBTemperature Characteristics (5 ° C to 35 ° C)± 1 dB (10 kHz), 1 kHz ReferenceOutput voltage0.2 mv (1 khz, 5cm/s, zero to peak, horizontal speed)
0.28 mv (1 khz, 5cm/sec, zero to peak, 45 ° speed)Channel separation25 dB or More (1 kHz)
20 dB or More (10 kHz)Channel balanceWithin 1 dB (1 kHz)DC resistance30 ΩImpedance30 Ω (Pure tracking angle20 °Needle pressure range1.25 ± 0.25gOscillator effective mass0.23mgNeedle tip0. 2x0. 7 mil Oval Diamond NeedleDead weight6gExchange needleEPS-310MC(¥18,000)<MC pre-preamplifier unit>Signal-to-noise ratio70dB(IHF-A)Frequency characteristic20 Hz to 20 kHz ± 0.5 dBRated output2.5mVDistortion factor0.02% (at rated output)<General>FeatureAuto-start arm forward control key
Autostop arm retract control key
Queuing key
Repeat key
Rotational frequency selection (33 1/3, Auto, 45) button
Turntable rotation key
Dial scale for confirming arm travel position
MM/MC switch button
Stylus illuminator
Stabilizer with strobe lightPwer100 VAC, 50Hz/60Hz
DC12VPower consumption16WExternal dimensionsWidth 315x Height 88x Depth 315 mmWeight6.5kg
