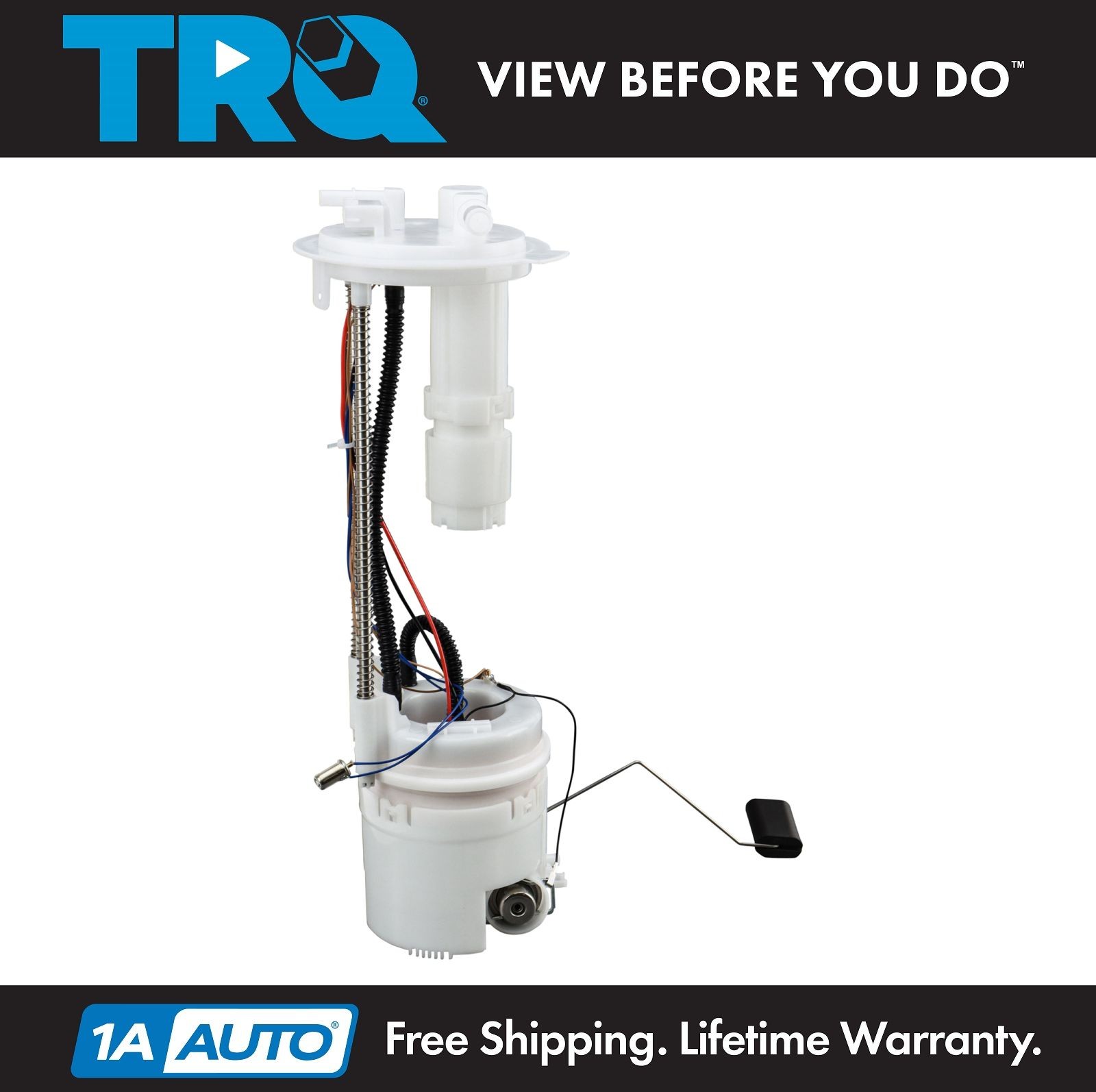

Fuel Pump Module Assembly
2011-2013 Infiniti QX56
2014-2024 Infiniti QX80
2017-2024 Nissan Armada Check Fitment for Your Vehicle
2011-2013 Infiniti QX56
2014-2024 Infiniti QX80
2017-2024 Nissan Armada
Verify exact fit by year, make, model, and options.
What’s in the Box
Product Attributes Outlet Outside Diameter: 0.31 in
Inlet Quantity: 1
Outlet Quantity: 1
Housing Length: 100 mm
Housing Width: 119 mm
Voltage: 12 VDC
Average Current Draw: 12.5 A
Top Mount Diameter: 129.5 mm
Length: 13.46 in
Height: 18.31 in
Width: 200 mm
Resistance Ohms Empty: 285 Ohms
Housing Length: 3.94 in
Length: 342 mm
Minimum Flow Rating: 35.7 gph
Housing Width: 4.69 in
Average Flow Rating: 41.65 gph
Resistance Ohms Full: 45 Ohms
Height: 465 mm
Maximum Flow Rating: 47.6 gph
Terminal Quantity: 5
Top Mount Diameter: 5.12 in
Minimum Pressure: 66.7 PSI
Width: 7.87 in
Outlet Outside Diameter: 7.89 mm
Minimum Free Flow Rate: 71.3 gph
Maximum Pressure: 72.5 PSI
Pump Type: Electric
Fuel Type: Gas
Pump Design: Impeller
In Tank or External: In Tank
Internal Or External Strainer: Internal
Connector Gender: Male
Terminal Gender: Male
Mounting Hardware Included: No
Fuel Tank Pressure Sensor Included: No
Lock Ring Included: No
Wire Harness Included: No
Grade Type: Performance
Terminal Type: Pin
Housing Material: POM Plastic
Outlet Type: Quick Connect
Connector Shape: Rectangle
Universal Or Specific Fit: Specific
Inlet Type: Strainer
Connector Color: White
Fuel Filter Included: Yes
Fuel Sending Unit Included: Yes
Strainer Included: Yes
Regulator Included: Yes
Negative Ground: Yes
Gasket Or Seal Included: Yes Reference Numbers
Agility Autoparts: 4011518
AutoZone: FFG2317
Datsun/Nissan: 17040-3ZD0B
Delphi: FG2317 Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
