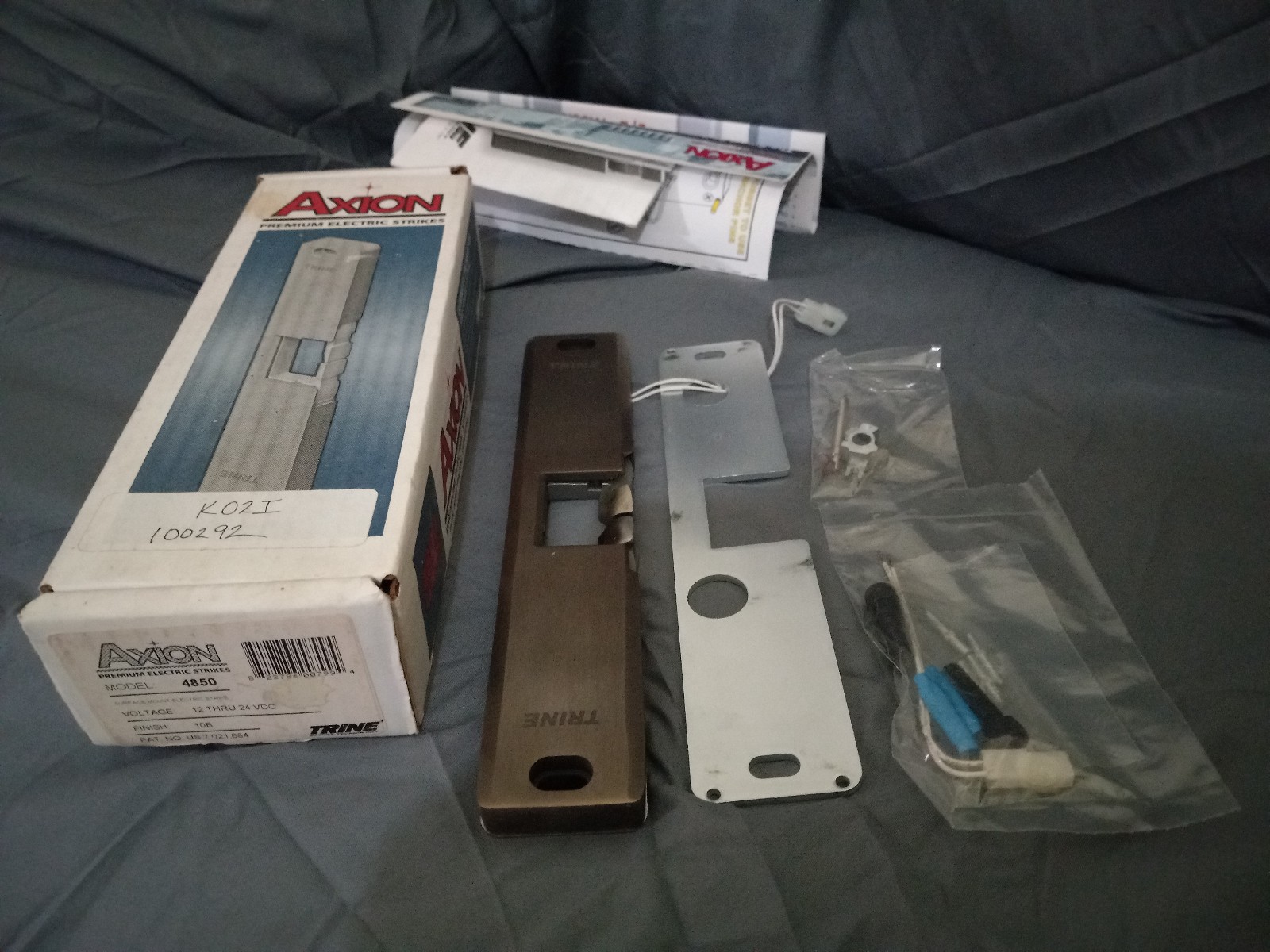

TRINE AXION Access Exit Device Electric Door Strike 4850-32D 12-24 DC For Sale

TRINE AXION Access Exit Device Electric Door Strike 4850-32D 12-24 DC Rim Panic.
BHMA Grade 1, 1/2-inch thick surface-mounted electric strike designed for rim panic exit devices. Known as an "all-in-one" or "one-box" solution, it features built-in multi-voltage electronics and a highly adaptable layout that eliminates the need to cut into wood or metal door frames.

High Adaptability: Includes a 1/4" spacer and two 1/16" spacer plates right out of the box, allowing up to 6 different thickness configurations.

Deep Latch Cavity: Features a completely open cavity that supports an incremental depth up to a 1" throw latchbolt.

Robust Security: Grade 1 rated with over 1,500 lbs of holding force and tested for more than 1,000,000 life cycles.

Patented Anchoring: Utilizes Trine's patented 6-pin anchoring system to prevent the strike from shifting or sliding over time under heavy usage.

Smart Electronics: Automatically accepts 11 to 28 Volts AC/DC with a very low current draw (only 0.260 Amps at 12VDC / 0.135 Amps at 24VDC), making it highly compatible with Power over Ethernet (PoE) systems.

Field Selectable: Can be easily switched between fail-safe and fail-secure modes during installation.
