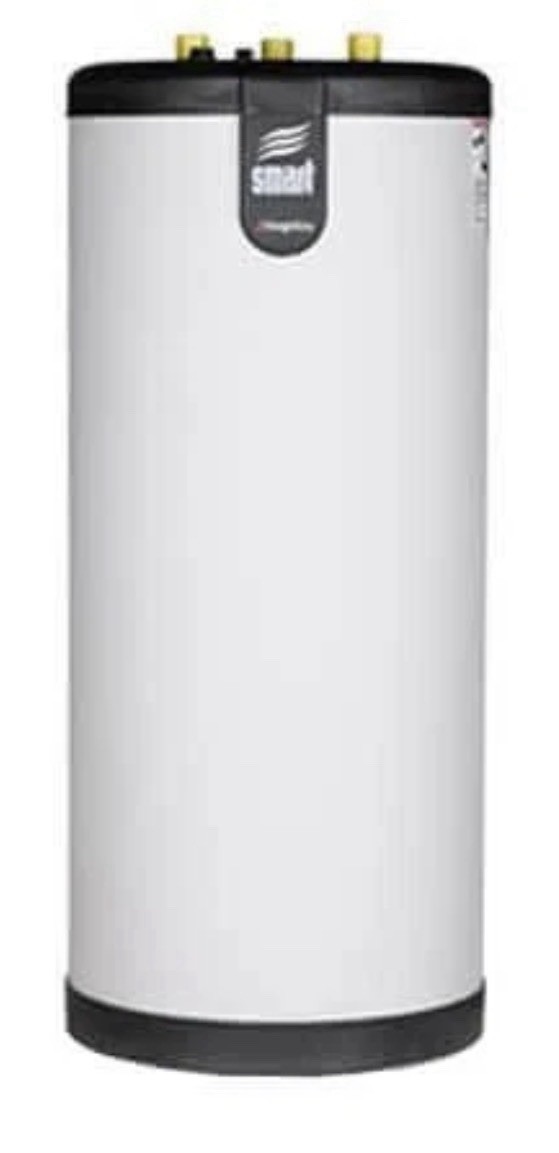

SMART Indirect Fired Water Heater
The Triangle Tube SMART40 is a 36-gallon indirect-fired water heater that uses your home's boiler to heat domestic water, though the model was officially discontinued by the manufacturer SupplyHouse.Key Specifications & FeaturesStorage Capacity: 36 gallonsFirst-Hour Output: 180 gallonsContinuous Flow: 2.5 gallons per minute (gpm)Design: Tank-in-tank stainless steel heat exchanger that is self-descaling and maintenance-free.Efficiency: High-density 2" polyurethane foam insulation with standby heat loss of less than 1°F per hour
The Triangle Tube Smart water Heaters do not come with a T&P Relief Valve, to order a T&P Relief Valve please follow the following link, T&P Relief Valve.
Product Features
Boiler Output Btu/Hr : 112,000
1st Hour Recovery (gal) : 180
Continuous Flow (gal) : 150
Peak/Flow (gal/10 min.) : 50
Diameter : 22"
Height : 46"
Boiler Supply/Return : 1"
Domestic Inlet/Outlet : 3/4"
Domestic Capacity (gal) : 36
Heating Water Capacity (gal) : 6
Shipping Weight (lbs) : 135
Specs
–
BTU Input:
112000
Capacity (Gallons):
36
Height (Inches):
22"
Water Draw:
150 Gallons/Hr @200F
Heating Surface:
16 Sq. ft.
Max PSI (Boiler):
45 psi
Max PSI (Domestic):
150 psi
